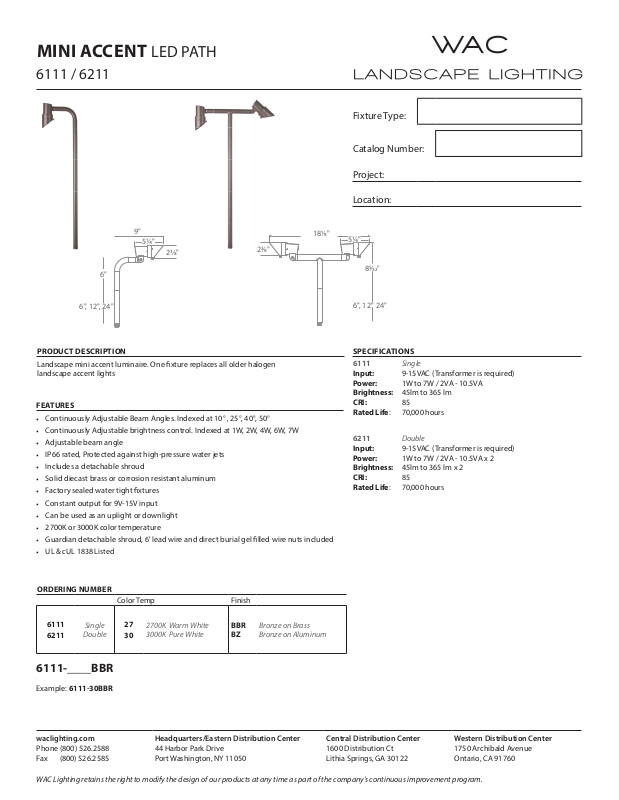

Page 1
MINI ACCENT LED PATH
6111 / 6211
Fixture Type:
Catalog Number:
Project:
Location:
9"
5 ¼ "
2⁄"
6"
6", 12", 24"
PRODUCT DESCRIPTION
Landscape mini accent luminaire. One xture replaces all older halogen
landscape accent lights
FEATURES
• Continuously Adjustable Beam Angles. Indexed at 10° , 25°, 40°, 50°
• Continuously Adjustable brightness control. Indexed at 1W, 2W, 4W, 6W, 7W
• Adjustable beam angle
• IP66 rated, Protected against high-pressure water jets
• Includes a detachable shroud
• Solid diecast brass or corrosion resistant aluminum
• Factory sealed water tight xtures
• Constant output for 9V-15V input
• Can be used as an uplight or downlight
• 2700K or 3000K color temperature
• Guardian detachable shroud, 6' lead wire and direct burial gel lled wire nuts included
•
UL & cUL 1838 Listed
2⁄"
18⁄"
5 ¼ "
8⁄"
6", 12", 24"
SPECIFICATIONS
6111
Input:
Power:
Brightness:
CRI:
Rated Life:
6211
Input:
Power:
Brightness:
CRI:
Rated Life:
Single
9-15VAC (Transformer is required)
1W to 7W / 2VA - 10.5VA
45lm to 365 lm
85
70,000 hours
Double
9-15VAC (Transformer is required)
1W to 7W / 2VA - 10.5VA x 2
45lm to 365 lm x 2
85
70,000 hours
ORDERING NUMBER
Color Temp Finish
6111
6211
Single
Double
27
2700K Warm White
3000K Pure White
30
BBRBZBronze on Brass
Bronze on Aluminum
6111-____BBR
Example: 611130BBR
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
MINI ACCENT LED PATH
6111 / 6211
Surface Mount Flange/Stake 5" Long Shroud
Includes three 7 inch threaded stainless steel stabilizing pins for ground
mounting or surface mounts with four screws or over a junction box
5000-SCP-BZ
Bronze on Aluminum
Guardian Mount
Heavy duty stainless steel spike to position xture.
Formed from a single piece of metal
9000-SP9-BZ
Stainless Steel
Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed
See transformer spec sheet for details and its accessories
9075-TRN-SS
75W Max
9150-TRN-SS
150W Max
9300-TRN-SS
300W Max
Reduce glare. Ideal for downlighting application
5111-LSHR-BZ Bronze on Aluminum
5111-LSHR-BBR Bronze on Brass
9600-TRN-SS
600W Max
