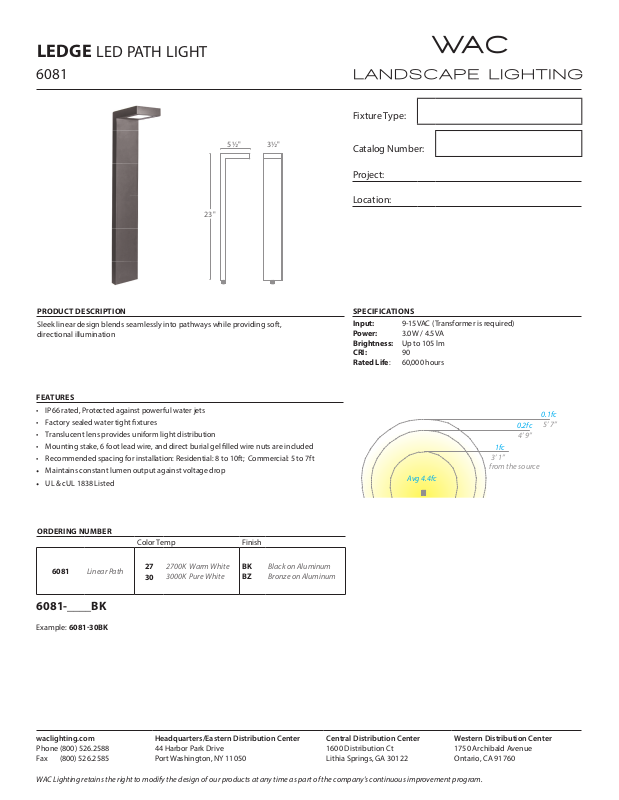

LEDGE LED PATH LIGHT
6081
Fixture Type:
3 ½ "5 ½ "
23"
PRODUCT DESCRIPTION
Sleek linear design blends seamlessly into pathways while providing soft,
directional illumination
FEATURES
• I
P66 rated, Protected against powerful water jets
•
Factory sealed water tight xtures
• Translucent lens provides
•
Mounting stake, 6 foot lead wire, and direct burial gel lled wire nuts are included
•
Recommended spacing for installation: Residential: 8 to 10ft; Commercial: 5 to 7ft
•
Maintains constant lumen output against voltage drop
•
UL & cUL 1838 Listed
uniform light distribution
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Power:
Brightness:
CRI:
Rated Life:
9-15VAC (Transformer is required)
3.0W / 4.5VA
Up to 105 lm
90
60,000 hours
Avg 4.4fc
0.2fc
4’ 9”
1fc
3’ 1”
from the source
0.1fc
5’ 7”
ORDERING NUMBER
Color Temp Finish
27
6081 Linear Path
2700K Warm White
3000K Pure WhiteBKBZ
30
Black on Aluminum
Bronze on Aluminum
6081-____BK
Example: 608130BK
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
LEDGE LED PATH LIGHT
6081
Surface Mount Flange/Stake
Includes three 7 inch threaded stainless steel stabilizing pins for ground
mounting or surface mounts with four screws or over a junction box
5000-SCP-BZ
Bronze on Aluminum
Guardian Mount
Heavy duty stainless steel spike to position xture.
Formed from a single piece of metal
9000-SP9-BZ
Stainless Steel
Additional
Mounting Stake
9000-ST9-BK
Durable PVC stake
9075-TRN-SS
75W Max
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed
See transformer spec sheet for details and its accessories
9150-TRN-SS
150W Max
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
9300-TRN-SS
300W Max
9600-TRN-SS
600W Max
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
