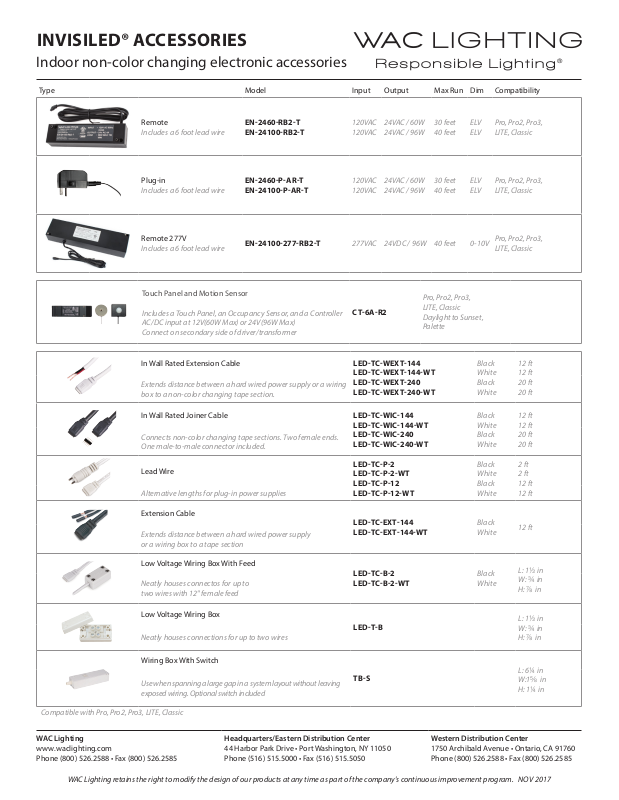

Page 1
INVISILED® ACCESSORIES
Indoor non-color changing electronic accessories
Type
Model Input Output Max Run Dim Compatibility
Remote
Includes a 6 foot lead wire
Plug-in
Includes a 6 foot lead wire
Remote 277V
Includes a 6 foot lead wire
Touch Panel and Motion Sensor
Includes a Touch Panel, an Occupancy Sensor, and a Controller
AC/DC input at 12V(60W Max) or 24V(96W Max)
Connect on secondary side of driver/transformer
In Wall Rated Extension Cable
Extends distance between a hard wired power supply or a wiring
box to a non-color changing tape section.
EN-2460-RB2-T
EN-24100-RB2-T
EN-2460-P-AR-T
EN-24100-P-AR-T
EN-24100-277- RB2-T 277VAC 24VDC / 96W 40 feet 0-10V
120VAC
120VAC
120VAC
120VAC
CT-6A-R2
LED-TC-WEXT-144
LED-TC-WEXT-144-WT
LED-TC-WEXT-240
LED-TC-WEXT-240-WT
24VAC / 60W
24VAC / 96W
24VAC / 60W
24VAC / 96W
Pro, Pro2, Pro3,
LITE, Classic
Daylight to Sunset,
Palette
30 feet
40 feet
30 feet
40 feet
ELV
ELV
ELV
ELV
Black
White
Black
White
Pro, Pro2, Pro3,
LITE, Classic
Pro, Pro2, Pro3,
LITE, Classic
Pro, Pro2, Pro3,
LITE, Classic
12 ft
12 ft
20 ft
20 ft
In Wall Rated Joiner Cable
Connects non-color changing tape sections. Two female ends.
One male-to-male connector included.
Lead Wire
Alternative lengths for plug-in power supplies
Extension Cable
Extends distance between a hard wired power supply
or a wiring box to a tape section
Low Voltage Wiring Box With Feed
Neatly houses connectos for up to
two wires with 12" female feed
Low Voltage Wiring Box
Neatly houses connections for up to two wires
Wiring Box With Switch
Use when spanning a large gap in a system layout without leaving
exposed wiring. Optional switch included
LED-TC-WIC-144
LED-TC-WIC-144-WT
LED-TC-WIC-240
LED-TC-WIC-240-WT
LED-TC-P-2
LED-TC-P-2-WT
LED-TC-P-12
LED-TC-P-12-WT
LED-TC-EXT-144
LED-TC-EXT-144-WT
LED-TC-B-2
LED-TC-B-2-WT
LED-T-B
TB-S
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
12 ft
12 ft
20 ft
20 ft
2 ft
2 ft
12 ft
12 ft
12 ft
L: 12 in
W: w in
H: d in
L: 12 in
W: w in
H: d in
L: 64 in
W:1s in
H: 14 in
Compatible with Pro, Pro2, Pro3, LITE, Classic
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOV 2017
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
INVISILED® ACCESSORIES
Indoor non-color changing electronic accessories
Joiner Cable
Connects tape sections
Male to male connector LED-TC-MM Black 50 Qty
Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette
Change directionality of tape runs and reuse cut ends of tape.
3-Way “Y" Connector
Connects tape sections
4-Way "X" Connector
Connects tape sections
"L" Connector
Connects tape sections
LED-TC-IC2
LED-TC-IC2-WT
LED-TC-IC6
LED-TC-IC6-WT
LED-TC-IC12
LED-TC-IC12-WT
LED-TC-IC36
LED-TC-IC36-WT
LED-TC-IC72
LED-TC-IC72-WT
LED-TC-Y
LED-TC-Y-WT
LED-TC-X
LED-TC-X-WT
LED-TC-L
LED-TC-L-WT
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
2 in
2 in
6 in
6in
12 in
12 in
36 in
36 in
72 in
72 in
End cap
1 cut and 1 male end cap
Compatible with Pro, Pro2, Pro3, LITE, Classic, Palette
Signal Wire
Links master and slave controllers. Can be combined for longer lengths
Compatible with Palette
LED-TC-EC
LED-TC-EC-WT
Black
White
LED-TC24-SW60
LED-TC24-SW120
60 in
120 in
