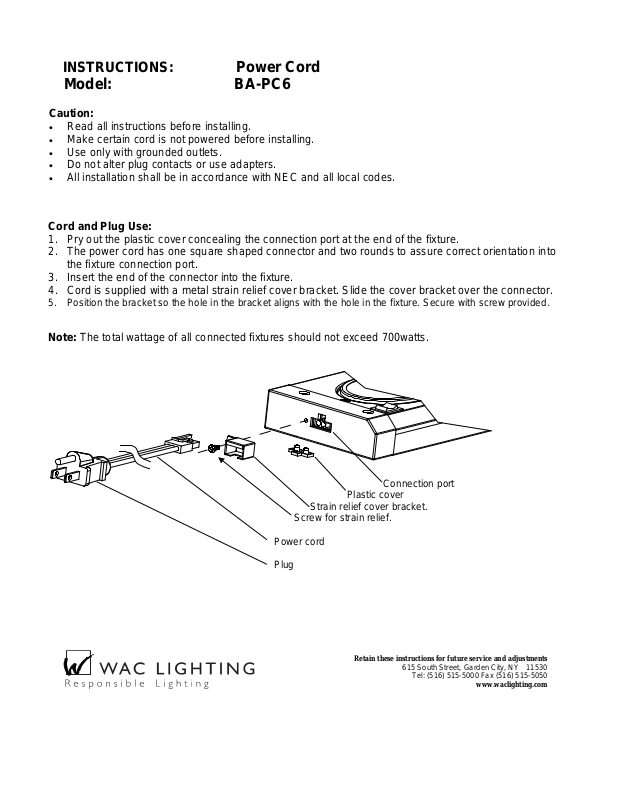

INSTRUCTIONS: Power Cord
Connection port
Retain these instructions for future service and adjustments
Model: BA-PC6
Caution:
• Read all instructions before installing.
• Make certain cord is not powered before installing.
• Use only with grounded outlets.
• Do not alter plug contacts or use adapters.
• All installation shall be in accordance with NEC and all local codes.
Cord and Plug Use:
1. Pry out the plastic cover concealing the connection port at the end of the fixture.
2. The power cord has one square shaped connector and two rounds to assure correct orientation into
the fixture connection port.
3. Insert the end of the connector into the fixture.
4. Cord is supplied with a metal strain relief cover bracket. Slide the cover bracket over the connector.
5. Position the bracket so the hole in the bracket aligns with the hole in the fixture. Secure with screw provided.
Note: The total wattage of all connected fixtures should not exceed 700watts.

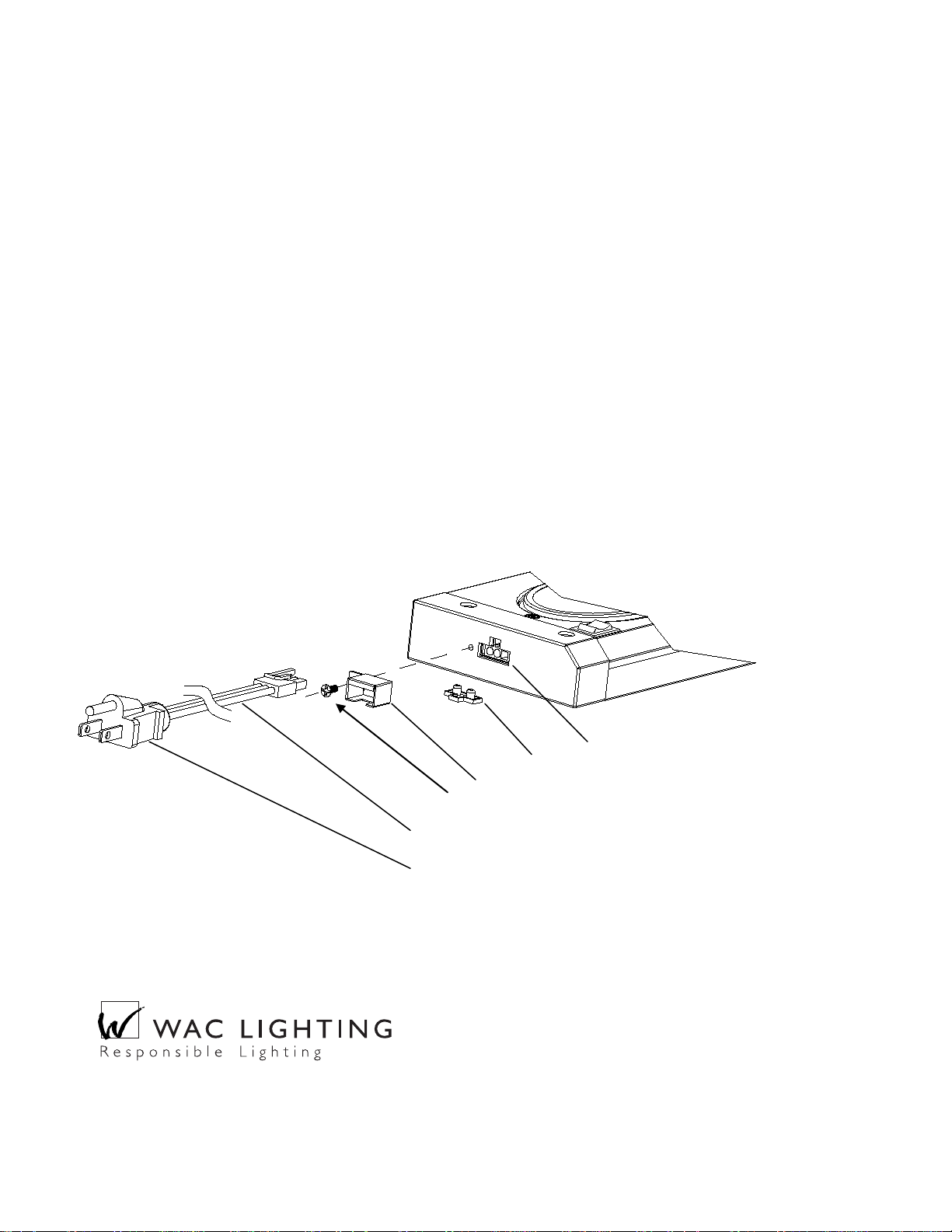

Plastic cover
Strain relief cover bracket.
Screw for strain relief.
Power cord
Plug
