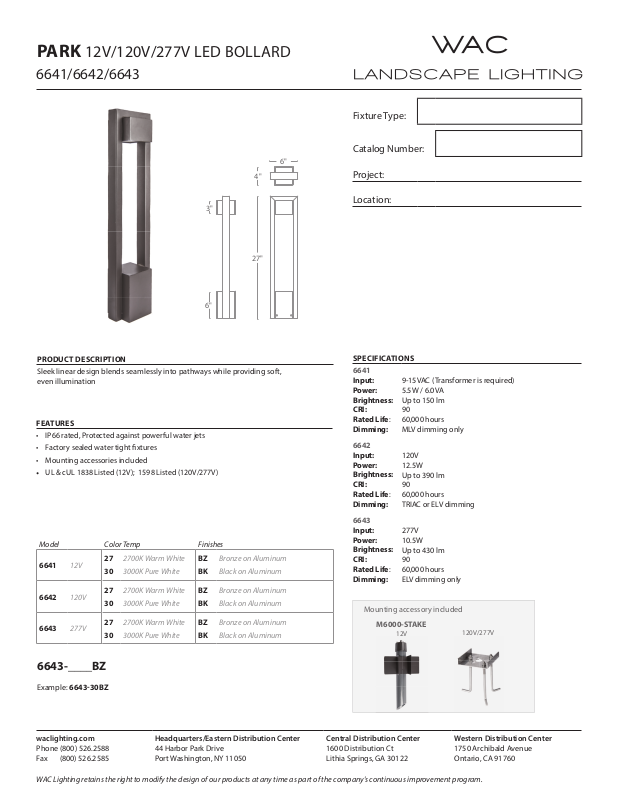

PARK 12V/120V/277V LED BOLLARD
6641/6642/6643
6"
4"
Fixture Type:
Catalog Number:
Project:
3"
27"
6"
PRODUCT DESCRIPTION
Sleek linear design blends seamlessly into pathways while providing soft,
even illumination
FEATURES
• I
P66 rated, Protected against powerful water jets
•
Factory sealed water tight xtures
•
Mounting accessories included
•
UL & cUL 1838 Listed (12V); 1598 Listed (120V/277V)
Model
6641 12V
6642 120V
6643 277V
Color Temp Finishes
27302700K Warm White
3000K Pure WhiteBZBK
27302700K Warm White
3000K Pure WhiteBZBK
27302700K Warm White
3000K Pure WhiteBZBK
Bronze on Aluminum
Black on Aluminum
Bronze on Aluminum
Black on Aluminum
Bronze on Aluminum
Black on Aluminum
Location:
SPECIFICATIONS
6641
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
6642
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
6643
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
Mounting accessory included
9-15VAC (Transformer is required)
5.5W / 6.0VA
Up to 150 lm
90
60,000 hours
MLV dimming only
120V
12.5W
Up to 390 lm
90
60,000 hours
TRIAC or ELV dimming
277V
10.5W
Up to 430 lm
90
60,000 hours
ELV dimming only
M6000-STAKE
12V
120V/277V
6643-____BZ
Example: 664330BZ
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
