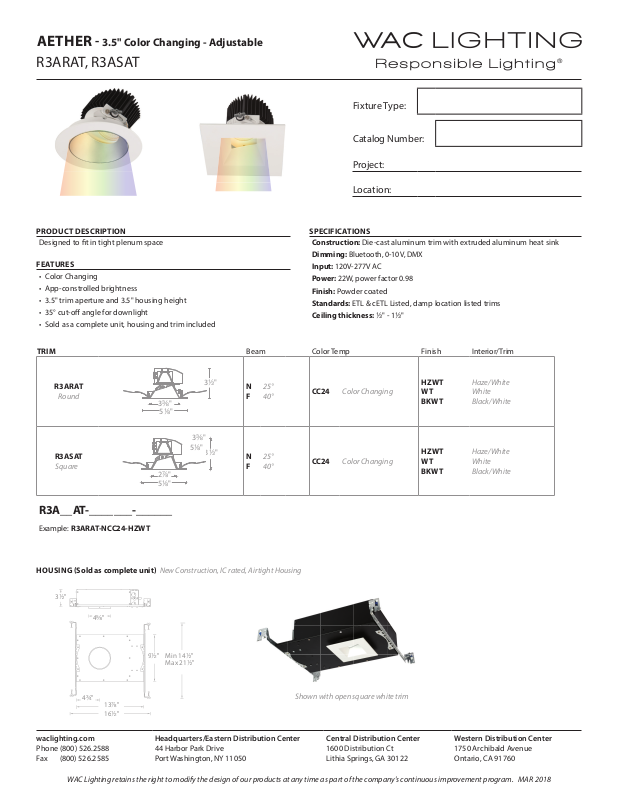

WAC Lighting XDMK2093, XDMK1719 Specifications

AETHER  3.5" Color Changing - Adjustable

3

2sw

R3ARAT, R3ASAT

Fixture Type:

Catalog Number:

Project:

Location:

PRODUCT DESCRIPTION

Designed to  t in tight plenum space

FEATURES

• Color Changing

• App-constrolled brightness

• 3.5" trim aperture and 3.5" housing height

• 35° cut-o angle for downlight

• Sold as a complete unit, housing and trim included

TRIM Beam Color Temp Finish Interior/Trim

3a"

58"

32"

32"

NF25°

40°

NF25°

40°

R3ARAT

Round

R3ASAT

Square

3a"

58"

2d"
58"

SPECIFICATIONS

Construction: Die-cast aluminum trim with extruded aluminum heat sink

Dimming:

Input:

Power:

Finish: Powder coated

Standards: ETL & cETL Listed, damp location listed trims

Ceiling thickness: 2" - 12"

CC24 Color Changing

CC24 Color Changing

Bluetooth, 0-10V, DMX

120V-277V AC

22W, power factor 0.98

HZWT
WT
BKWT

HZWT
WT
BKWT

Haze/White
White
Black/White

Haze/White
White
Black/White

R3A__AT-_______-______

Example: R3ARAT-NCC24-HZWT

HOUSING Sold as complete unit New Construction, IC rated, Airtight Housing

Shown with open square white trim
