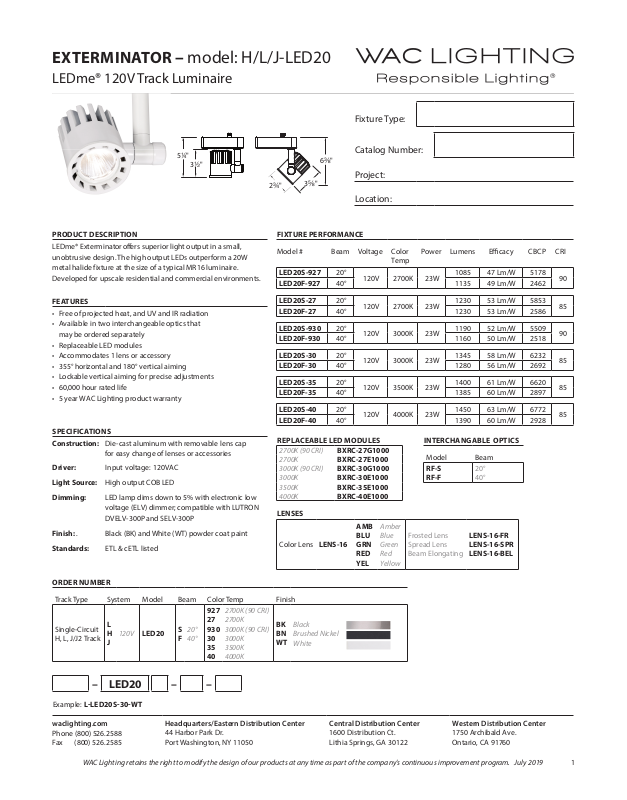

EXTERMINATOR – model: H/L/J-LED20
LEDme® 120V Track Luminaire
Fixture Type:
54"
32"
PRODUCT DESCRIPTION
LEDme® Exterminator off ers superior light output in a small,
unobtrusive design. The high output LEDs outperform a 20W
metal halide fi xture at the size of a typical MR16 luminaire.
Developed for upscale residential and commercial environments.
FEATURES
• Free of projected heat, and UV and IR radiation
• Available in two interchangeable optics that
may be ordered separately
• Replaceable LED modules
• Accommodates 1 lens or accessory
• 355° horizontal and 180° vertical aiming
• Lockable vertical aiming for precise adjustments
• 60,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum with removable lens cap
Driver: Input voltage: 120VAC
Light Source: High output COB LED
Dimming:
Finish: .
Standards:
for easy change of lenses or accessories
LED lamp dims down to 5% with electronic low
voltage (ELV) dimmer; compatible with LUTRON
DVELV-300P and SELV-300P
Black (BK) and White (WT) powder coat paint
ETL & cETL listed
Catalog Number:
6a"
Project:
2w"
3s"
Location:
FIXTURE PERFORMANCE
Model # Beam Voltage Color
LED20S-927 20°
LED20F-927 40° 1135 49 Lm/W 2462
LED20S-27 20°
LED20F-27 40° 1230 53 Lm/W 2586
LED20S-930 20°
LED20F-930 40° 1160 50 Lm/W 2518
LED20S-30 20°
LED20F-30 40° 1280 56 Lm/W 2692
LED20S-35 20°
LED20F-35 40° 1385 60 Lm/W 2897
LED20S-40 20°
LED20F-40 40° 1390 60 Lm/W 2928
REPLACEABLE LED MODULES
2700K (90 CRI) BXRC-27G1000
2700K BXRC-27E1000
3000K (90 CRI) BXRC-30G1000
3000K BXRC-30E1000
3500K BXRC-35E1000
4000K BXRC-40E1000
LENSES
AMB
Color Lens LENS-16
BLU
GRN
RED
YEL
Temp
120V 2700K 23W
120V 2700K 23W
120V 3000K 23W
120V 3000K 23W
120V 3500K 23W
120V 4000K 23W
Amber
Blue
Green
Red
Yellow
Power Lumens E cacy CBCP CRI
1085 47 Lm/W 5178
1230 53 Lm/W 5853
1190 52 Lm/W 5509
1345 58 Lm/W 6232
1400 61 Lm/W 6620
1450 63 Lm/W 6772
INTERCHANGABLE OPTICS
Model Beam
RF-S
RF-F
Frosted Lens
Spread Lens
Beam Elongating
20°
40°
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
90
85
90
85
85
85
ORDER NUMBER
Track Type System Model Beam Color Temp Finish
927
2700K (90 CRI)
27
Single-Circuit
H, L, J/J2 Track
L
HJ120V LED20
SF20°
40°
2700K
930
3000K (90 CRI)
30
3000K
35
3500K
40
4000K
BK
BN
WT
– LED20 – –
Example: LLED20S30WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. July 2019
Headquarters/Eastern Distribution Center
44 Harbor Park Dr.
Port Washington, NY 11050
Black
Brushed Nickel
White
Central Distribution Center
1600 Distribution Ct.
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Ave.
Ontario, CA 91760
