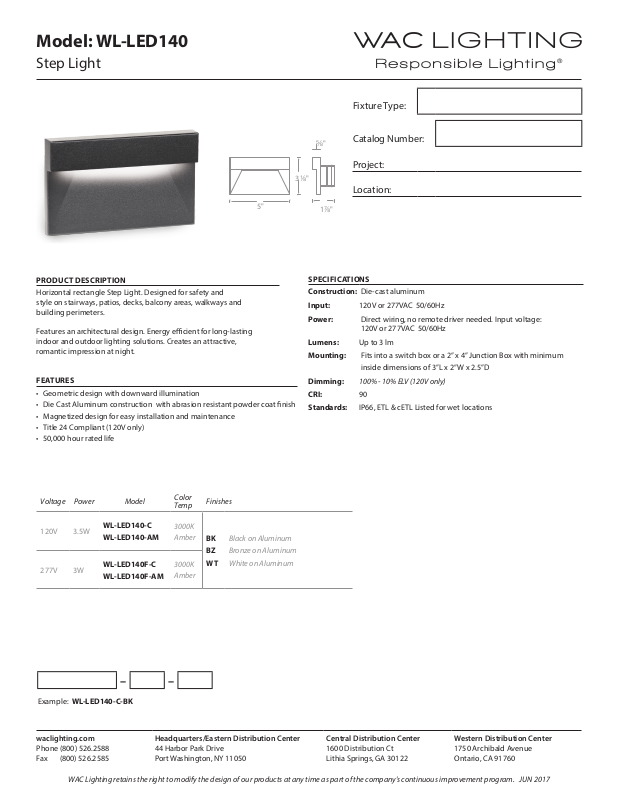

Page 1
Model: WL-LED140
Step Light
Fixture Type:
5"
PRODUCT DESCRIPTION
Horizontal rectangle Step Light. Designed for safety and
style on stairways, patios, decks, balcony areas, walkways and
building perimeters.
Features an architectural design. Energy ecient for long-lasting
indoor and outdoor lighting solutions. Creates an attractive,
romantic impression at night.
FEATURES
• Geometric design with downward illumination
• Die Cast Aluminum construction with abrasion resistant powder coat nish
• Magnetized design for easy installation and maintenance
• Title 24 Compliant (120V only)
• 50,000 hour rated life
s"
Catalog Number:
Project:
38"
Location:
1d"
SPECIFICATIONS
Construction: Die-cast aluminum
Input: 120V or 277VAC 50/60Hz
Power: Direct wiring, no remote driver needed. Input voltage:
Lumens: Up to 3 lm
Mounting: Fits into a switch box or a 2” x 4” Junction Box with minimum
Dimming:
CRI:
Standards: IP66, ETL & cETL Listed for wet locations
120V or 277VAC 50/60Hz
inside dimensions of 3”L x 2”W x 2.5”D
100% - 10% ELV (120V only)
90
Voltage Power
120V 3.5W
277V 3W
WL-LED140-C
WL-LED140-AM
WL-LED140F-C
WL-LED140F-AM
– –
Example: WL-LED140-C-BK
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2017
Model
Color
Temp
3000K
Amber
3000K
Amber
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Finishes
BK
Black on Aluminum
BZ
Bronze on Aluminum
WT
White on Aluminum
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
Model: WL-LED140
Step Light
FIXTURE PERFORMANCE
Input Voltage Light Color Finish Lumens
C WhiteBKBZ
WL-LED140 120V
AM Amber
Input Voltage Light Color Finish Lumens
Black on Aluminum
Bronze on Aluminum
White on Aluminum
WT
BK
Black on Aluminum
BZ
Bronze on Aluminum
White on Aluminum
WT
3
3
3
610 nm
610 nm
610 nm
WL-LED140F 277V
C WhiteBKBZ
WT
AM AmberBKBZ
WT
Black on Aluminum
Bronze on Aluminum
White on Aluminum
Black on Aluminum
Bronze on Aluminum
White on Aluminum
3
3
3
610 nm
610 nm
610 nm
