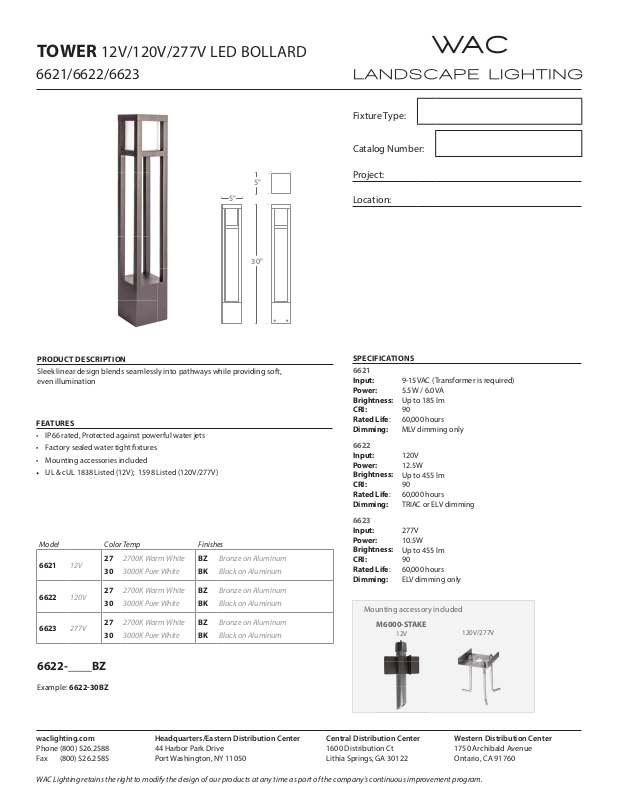

TOWER 12V/120V/277V LED BOLLARD
6621/6622/6623
Fixture Type:
Catalog Number:
5"
5"
30"
PRODUCT DESCRIPTION
Sleek linear design blends seamlessly into pathways while providing soft,
even illumination
FEATURES
• I
P66 rated, Protected against powerful water jets
•
Factory sealed water tight xtures
•
Mounting accessories included
•
UL & cUL 1838 Listed (12V); 1598 Listed (120V/277V)
Model
6621 12V
6622 120V
6623 277V
Color Temp Finishes
27302700K Warm White
3000K Pure WhiteBZBK
27302700K Warm White
3000K Pure WhiteBZBK
27302700K Warm White
3000K Pure WhiteBZBK
Bronze on Aluminum
Black on Aluminum
Bronze on Aluminum
Black on Aluminum
Bronze on Aluminum
Black on Aluminum
Project:
Location:
SPECIFICATIONS
6621
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
6622
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
6623
Input:
Power:
Brightness:
CRI:
Rated Life:
Dimming:
Mounting accessory included
9-15VAC (Transformer is required)
5.5W / 6.0VA
Up to 185 lm
90
60,000 hours
MLV dimming only
120V
12.5W
Up to 455 lm
90
60,000 hours
TRIAC or ELV dimming
277V
10.5W
Up to 455 lm
90
60,000 hours
ELV dimming only
M6000-STAKE
12V
120V/277V
6622-____BZ
Example: 662230BZ
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
