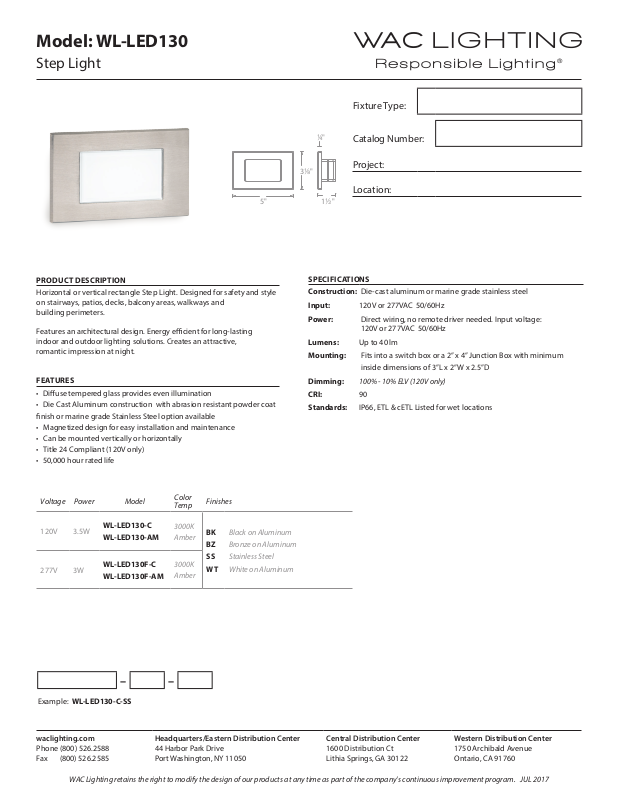

Page 1
Model: WL-LED130
Step Light
Fixture Type:
5"
PRODUCT DESCRIPTION
Horizontal or vertical rectangle Step Light. Designed for safety and style
on stairways, patios, decks, balcony areas, walkways and
building perimeters.
Features an architectural design. Energy ecient for long-lasting
indoor and outdoor lighting solutions. Creates an attractive,
romantic impression at night.
FEATURES
• Diuse tempered glass provides even illumination
• Die Cast Aluminum construction with abrasion resistant powder coat
nish or marine grade Stainless Steel option available
• Magnetized design for easy installation and maintenance
• Can be mounted vertically or horizontally
• Title 24 Compliant (120V only)
• 50,000 hour rated life
4"
38"
Catalog Number:
Project:
Location:
12"
SPECIFICATIONS
Construction: Die-cast aluminum or marine grade stainless steel
Input: 120V or 277VAC 50/60Hz
Power: Direct wiring, no remote driver needed. Input voltage:
Lumens: Up to 40 lm
Mounting: Fits into a switch box or a 2” x 4” Junction Box with minimum
Dimming:
CRI:
Standards: IP66, ETL & cETL Listed for wet locations
120V or 277VAC 50/60Hz
inside dimensions of 3”L x 2”W x 2.5”D
100% - 10% ELV (120V only)
90
Voltage Power
120V 3.5W
277V 3W
WL-LED130-C
WL-LED130-AM
WL-LED130F-C
WL-LED130F-AM
– –
Example: WL-LED130-C-SS
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2017
Model
Color
Temp
3000K
Amber
3000K
Amber
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Finishes
Black on Aluminum
BK
Bronze on Aluminum
BZ
Stainless Steel
SS
White on Aluminum
WT
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
Model: WL-LED130
Step Light
FIXTURE PERFORMANCE
Input Voltage Light Color Finish Lumens
BK
Black on Aluminum
BZ
C White
WL-LED130 120V
AM Amber
Input Voltage Light Color Finish Lumens
C White
WL-LED130F 277V
AM Amber
Bronze on Aluminum
Stainless Steel
SS
White on Aluminum
WT
BK
Black on Aluminum
BZ
Bronze on Aluminum
Stainless Steel
SS
White on Aluminum
WT
BK
Black on Aluminum
BZ
Bronze on Aluminum
Stainless Steel
SS
White on Aluminum
WT
BK
Black on Aluminum
BZ
Bronze on Aluminum
Stainless Steel
SS
White on Aluminum
WT
40
40
40
40
610 nm
610 nm
610 nm
40
40
40
40
610 nm
610 nm
610 nm
