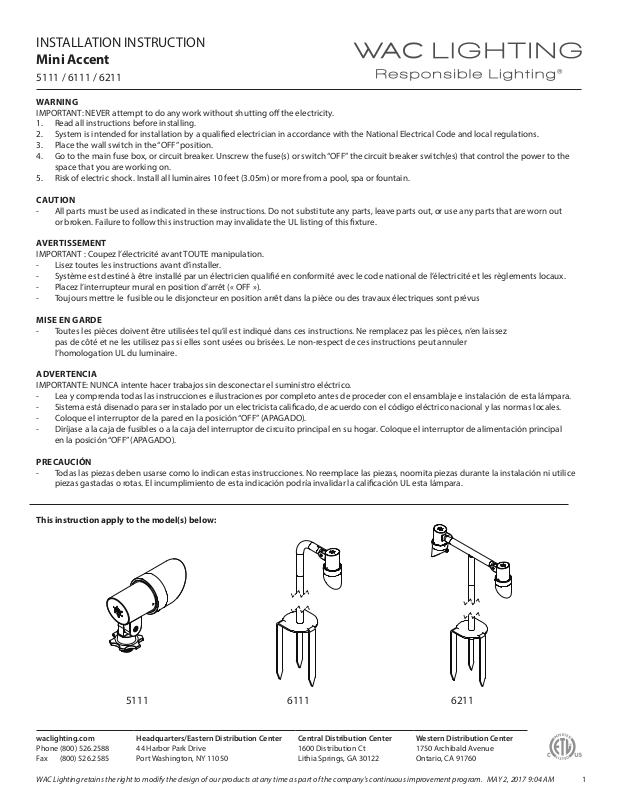

IMPORTANT: NEVER attempt to do any work without shutting o the electricity.
1. Read all instructions before installing.
2. System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
3. Place the wall switch in the “OFF” position.
4. Go to the main fuse box, or circuit breaker. Unscrew the fuse(s) or switch “OFF” the circuit breaker switch(es) that control the power to the
space that you are working on.
5. Risk of electric shock. Install all luminaires 10 feet (3.05m) or more from a pool, spa or fountain.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction may invalidate the UL listing of this xture.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
- Toujours mettre le fusible ou le disjoncteur en position arrêt dans la pièce ou des travaux électriques sont prévus
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez
pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation UL du luminaire.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e instalación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de alimentación principal
en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni utilice
piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación UL esta lámpara.

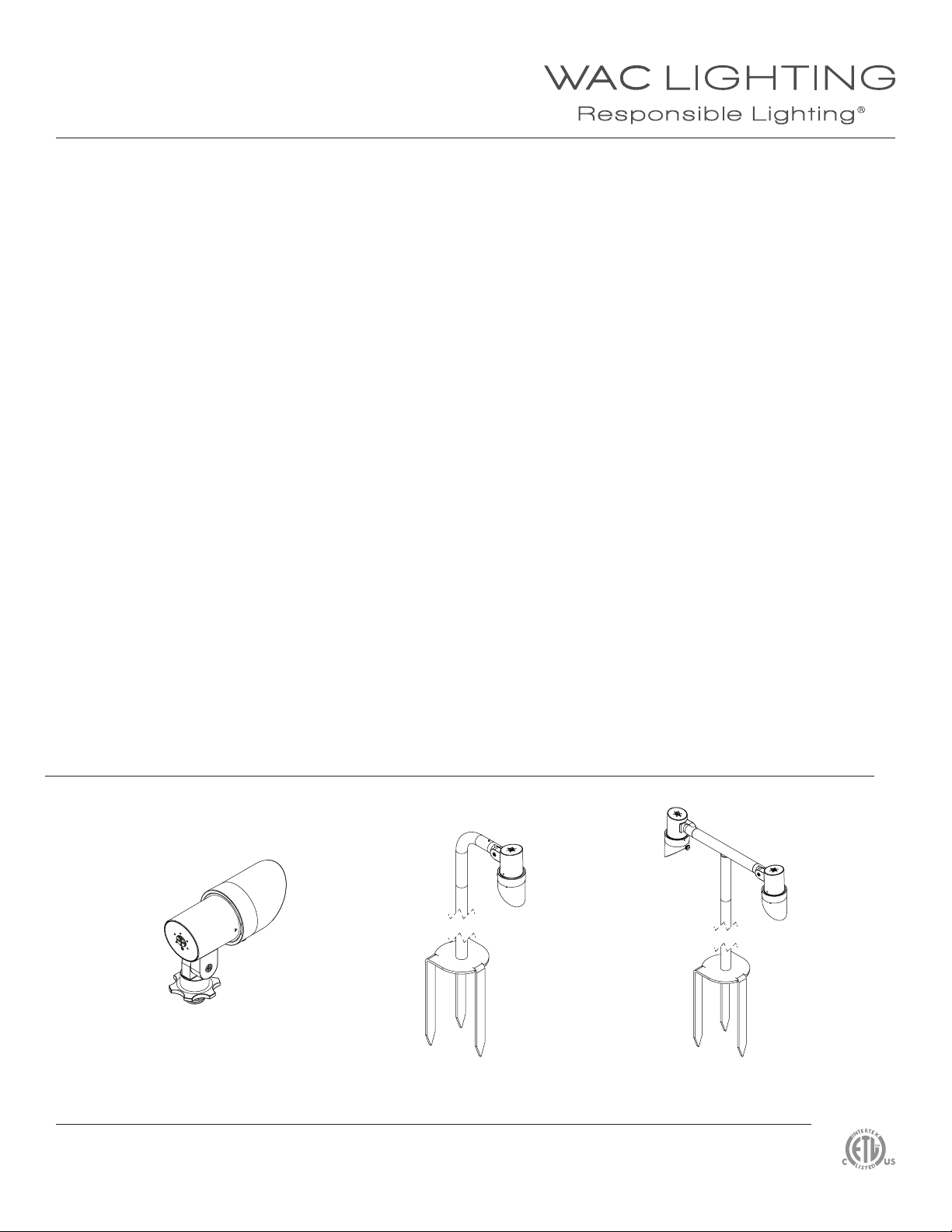

This instruction apply to the model(s) below:
511161116211
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
INSTALLATION INSTRUCTION
Mini Accent
5111 / 6111 / 6211
INSTALLATION ACCESSORIES
Wire Nut
Qty: 2 pcs for 5111, 6111
Qty: 4 pcs for 6211
7EAC352401
Hex Key
Qty: 1 pcs
7MPE155003
1/16”
Hex Key
Qty: 1 pcs
7MPE205001
5/64”
For model 6111,6211

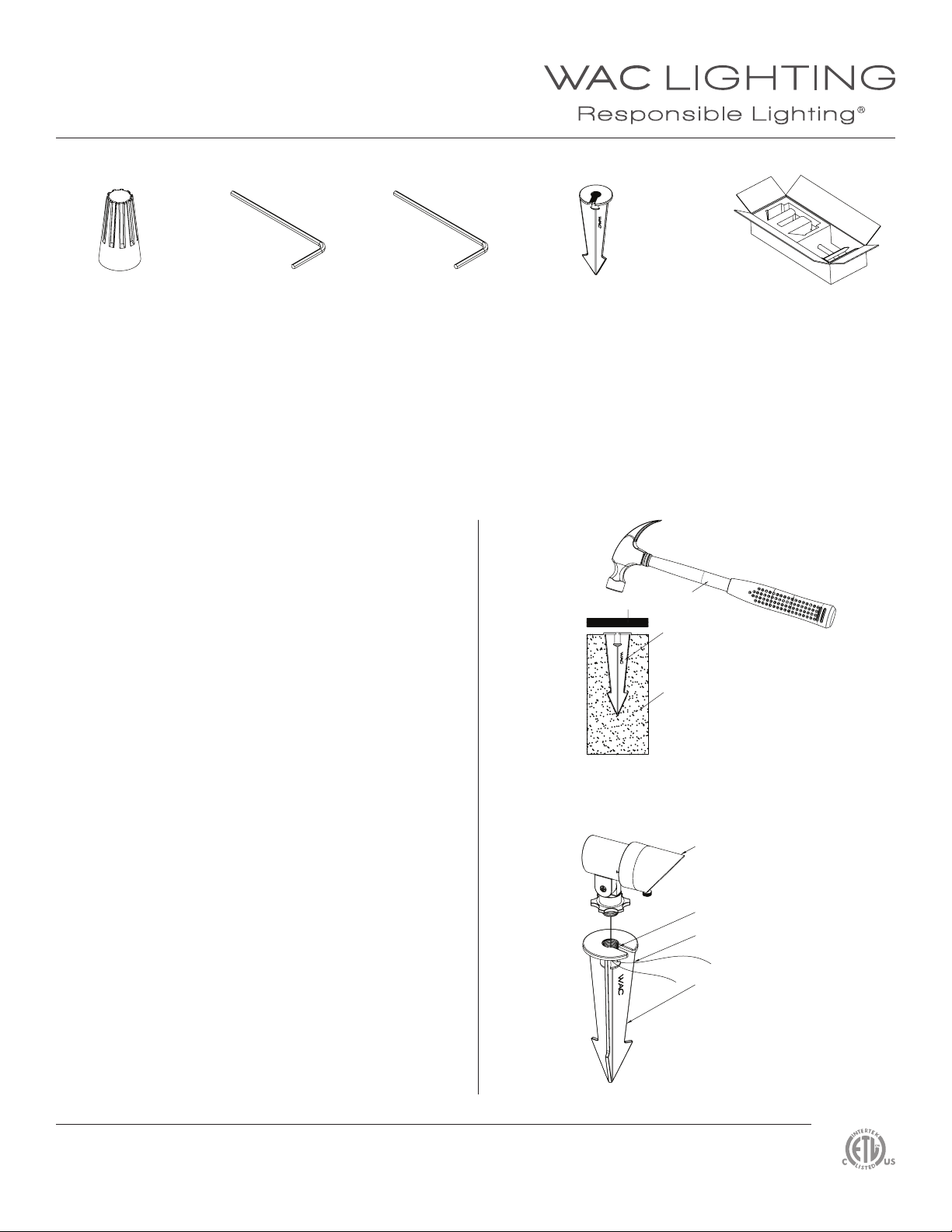

Step 1: Determining the location
1. Make sure your main power is o.
2. At the point of installation, mount the stake by placing a piece
of wood on the stake and hammering the wood. Hammer until
the bottom of the ring is ush with the ground.
3. In the case of hard soil, dig a hole and place the stake in so
that the bottom of the ring is ush with the ground. Fill the rest
of the hole with the removed soil and pack it tight to secure
the stake.
4. Screw the xture onto the stake provided, leading the wire from
the xture through the wire slot in the stake.
Mounting Stake
Qty: 1 pc
7TVD207001BW
For Model 5111
Wood
Stem Kit
Qty: 1 pc
Include: 1×6” Rod
1×12” Rod
1×24” Rod
1×9” Stainless Steel Spike
For Model 6111, 6211
Hammer
Mounting Stake
Soil
Lighting Fixture
Wire Slot
Fixture Wires
Mounting Stake
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2
INSTALLATION INSTRUCTION
Mini Accent
5111 / 6111 / 6211

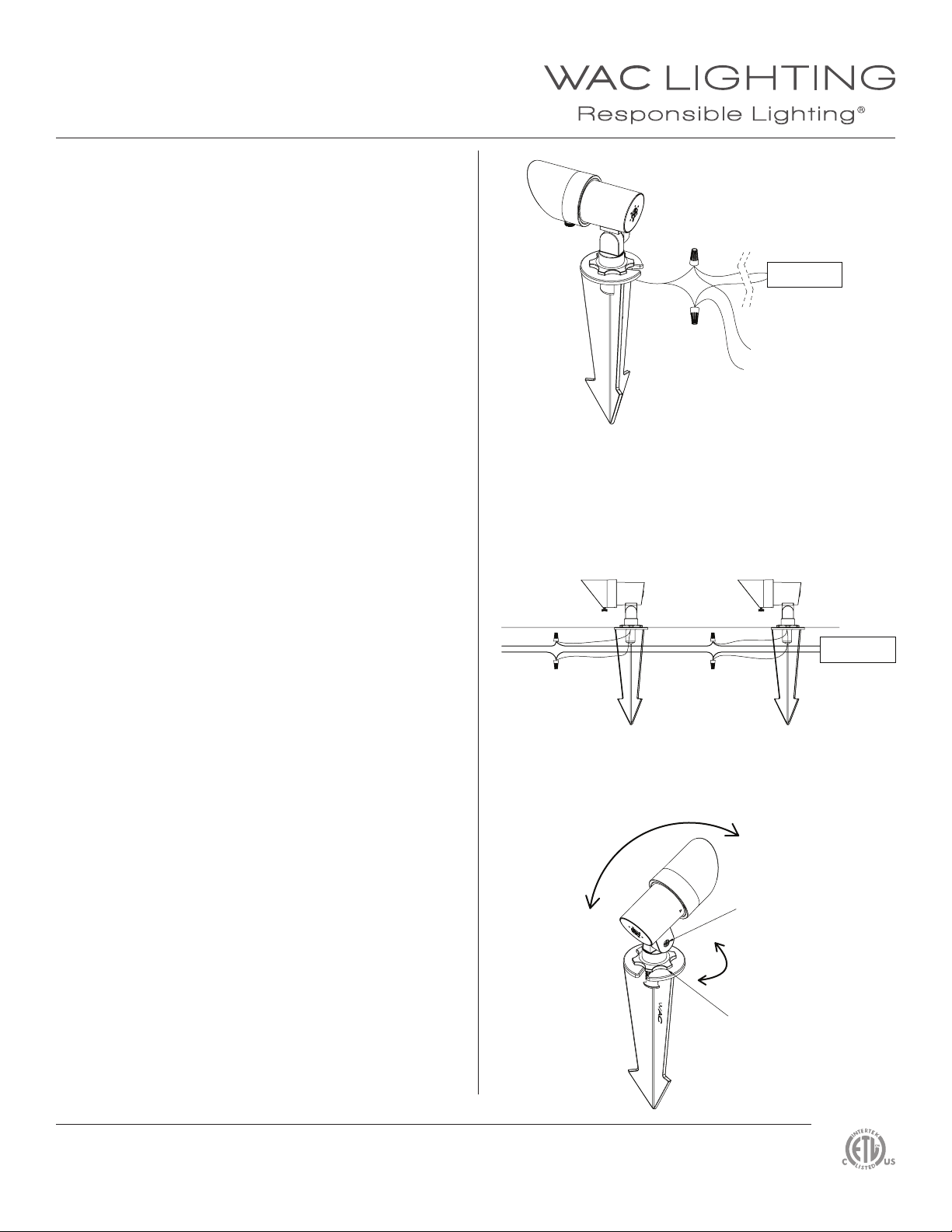

Step 2: Wiring the Fixture
*Note: Transformer is required to power the xture (Sold Separately).
1. Cut the power supply wire from the transformer at the location
of the xture.
2. Separate the power supply wire into two individual wires by
lightly pulling on each side so that a couple inches is separated.
3. Strip o ½ inch of the insulating material from each wire and
connect one to each of the wires from the xture using the
outdoor rated direct burial wire nuts provided.
Transformer
Note: To install multiple xtures, also
connect the power supply wire of each
additional xture to the connection
described in 7 of the previous xture
Step 3: Installing the Fixture
1. Screw the xture onto the stake provided, leading the wire from
the xture through the wire slot in the stake.
2. If desired, bury your wire by digging a small trench. Close the
trench by applying an inward force to both sides of the trench.
3. Repeat steps for other xtures in the same electrical circuit.
4. Turn the main power supply back on and make sure the xtures
light up.
Step 4: Aiming the Fixture
1. Tilting: Loosen the joint screw and adjust the head of the xture
to the desired direction before retightening the screw.
2. Loosen the mounting knob and rotate the xture to the desired
position before retightening the knob.
Transformer
Note: To install multiple xtures, follow the diagram above
Tilting
Joint Screw
Rotating
Mounting Knob
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
3
INSTALLATION INSTRUCTION
1
2
4
6
7
Mini Accent
5111 / 6111 / 6211
Step 5: Dimming Adjustment
1. Use a Philips head screwdriver to adjust the dimming dial.
2. Rotate until the arrow on the dial is pointed at the desired
wattage. The wattage may be adjusted to the pre-existing tabs
or any value in between.
3. The lower the wattage, the dimmer the xture will be.
4. Please refer to the yellow tag to determine the size of the
required transformer.
Step 6: Beam Angle Adjustment
1. Note the four pre-determined beam angles on the beam angle
changing dial.
2. Remove shroud before adjusting beam angle (See Step 7).
3. Use the provided Hex Key to slightly loosen the set screw one or
two turns. Do not remove the set screw from the xture.
CAUTION: Do not remove set screw from the xture. It should
only be removed from the xture for servicing. Consult factory
for service instruction.
Set
Screw
Hold xture
Turn dial with
other hand
°
50
40°
25°
10°
4. Hold the xture body and rotate the dial until the Arrow is
aligned with the desired beam angle. This beam angle may be
one of the pre-determined markings or any number in between.
CAUTION: Keep the arrow marking on the xture body between the beam angle range.
5. Tighten the set screw until it stops. Do not over tighten.
6. Install the Shroud.

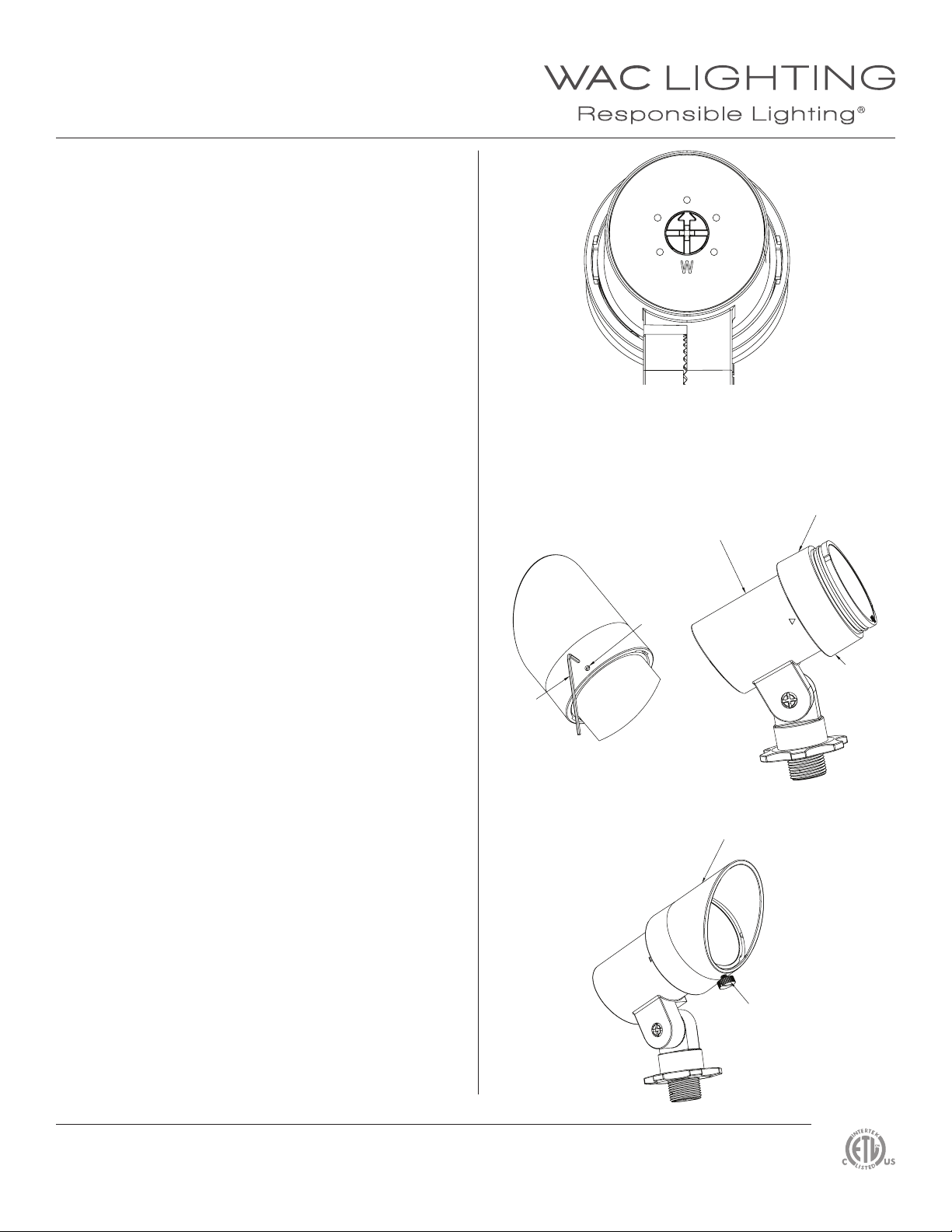

Step 7: Shroud Adjustment
1. Loosen the thumb screw on the shroud.
2. Rotate the shroud until it is in the desired position to properly
cut o glare.
3. Retighten the thumb screw to lock the shroud in place.
Beam Angle
Dial
Hex
Key
Shroud
Thumbscrew
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
4
INSTALLATION INSTRUCTION
Mini Accent
5111 / 6111 / 6211
ACCESSORIES

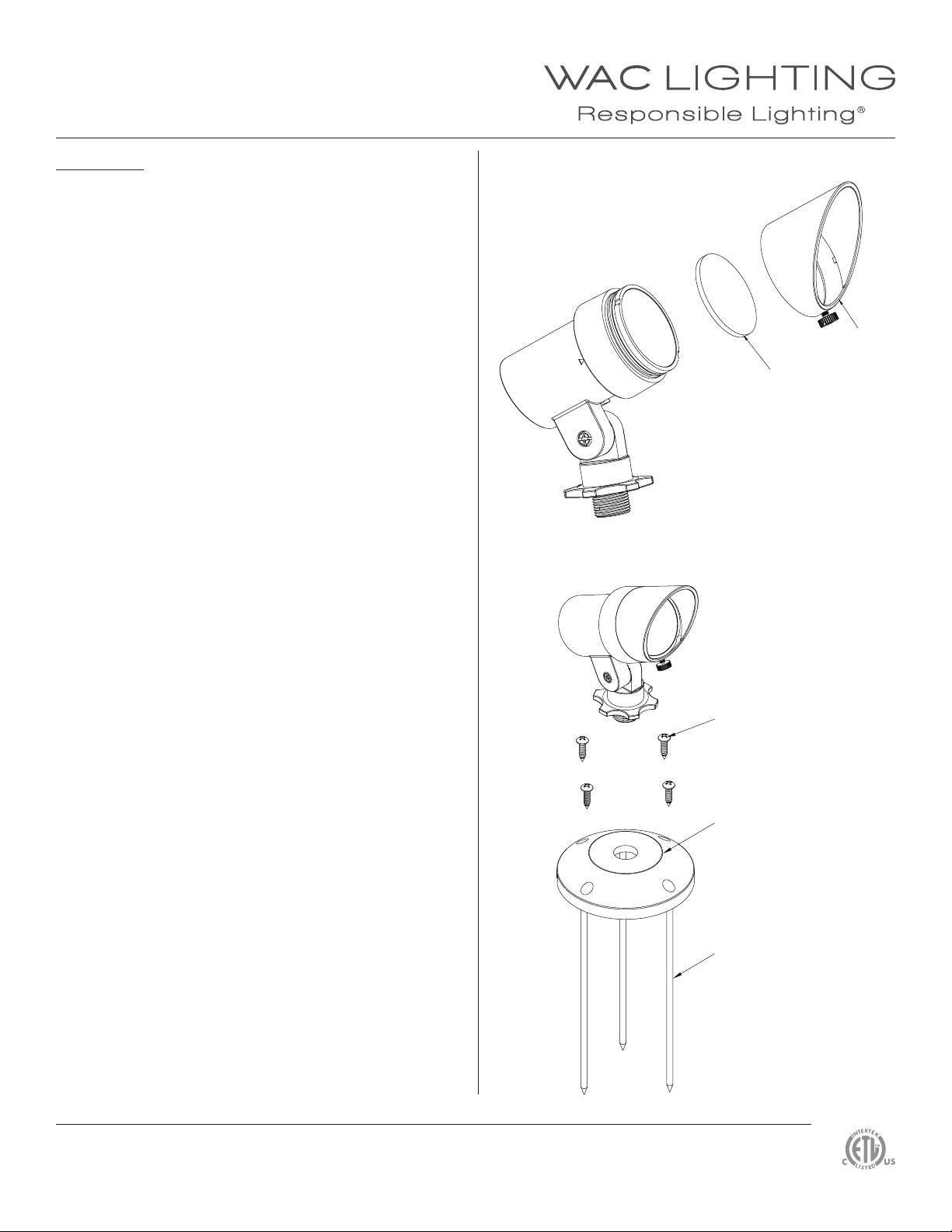

I. Color Lens:
Colored lens come in red, blue, green and amber to lter the light
coming out of the xture.
Installation: Loosen the thumbscrew and remove the shroud.
Place the colored lens into the xture and secure by replacing
the shroud
II. Hex Louver:
Hex louvers are used to reduce the glare of the xture and control
peripheral light.
Installation: Loosen the thumbscrew and remove the shroud.
Place the hex louver into the xture and secure by replacing
the shroud.
Create a route underneath the accessory for your wire to travel
through. Lead your wire through the created route and screw your
xture onto the surface mount accessory.
Shroud
LENS-16
III. Surface Mount Accessory:
The surface mount accessory is used to mount the xture to a hard
surface like wood or cement or as alternative to the mounting stake.
Installation: Mount the accessory to a hard surface using No. 10
Philips head screws that are at least half an inch long.
If mounting on concrete or something similar, rst use a plastic
anchor sized for No. 10 screws.
If mounting on a soft surface rst attach the included spikes.
Create a route underneath the accessory for your wire to travel
through. Lead your wire through the created route and screw your
xture onto the surface mount accessory.
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
No. 10 Tapping Screw
Surface Mount Canopy
Removable Spike
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
5
INSTALLATION INSTRUCTION
Mini Accent
5111 / 6111 / 6211
IV. Tree Mount Accessory:
The tree mount accessory is a way for xtures to be mounted on the
trunk or a branch of a tree while minimizing damage to the tree.
Installation: Mark the screw hole locations at the point of
installation. Screw the provided screw bolts into the tree
until the unthreaded portion of the bolt meets the surface of
the tree. Screw a hex nut onto bolt until it hits the unthreaded
area. Place the three mount bracket onto the bolts and secure
using additional hex nuts. Attach light xture and lead wire
through the bracket.
Wood Screw Bolt
Hex Nut
Tree Mount Junction Box
Hex Nut
V. Extension Accessory:
Using extension rods and rod joiners, xtures can be mounted away
from a surface in any desired direction. Rods come in 5 sizes:
4 inches, 12 inches, 18 inches, and 24 inches. These rods can be
connected via either straight or 90 degree rod joiners.

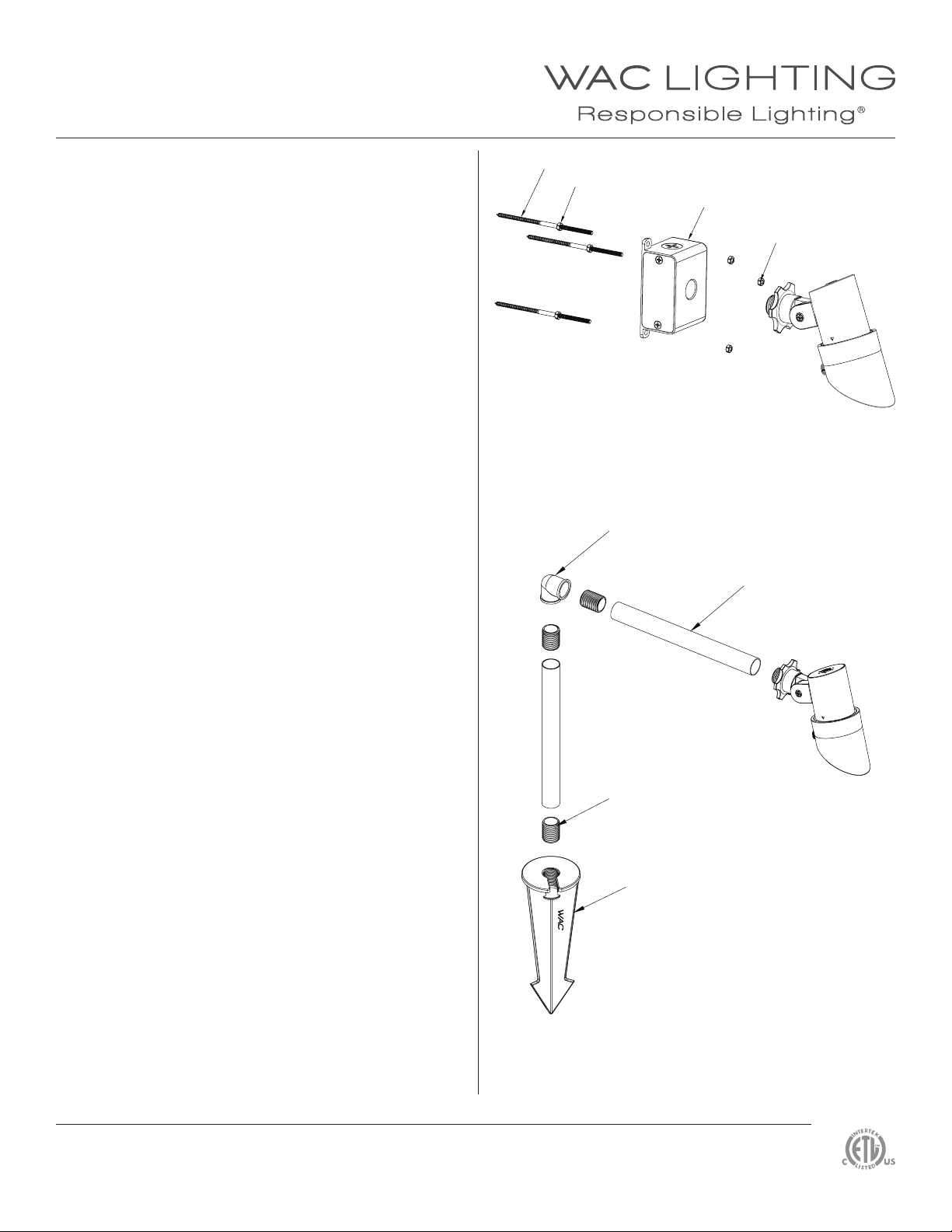

Installation: Screw in a rod joiner into your mounting accessory.
Screw an extension rod to the other side of the rod joiner.
Continue to use rod joiners and extension rods until the xture is
in the desired position.
90° Rod Joiner
Extension Rod
Rod Joiner
Mounting Accessory
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
6
INSTALLATION INSTRUCTION
Mini Accent
5111 / 6111 / 6211

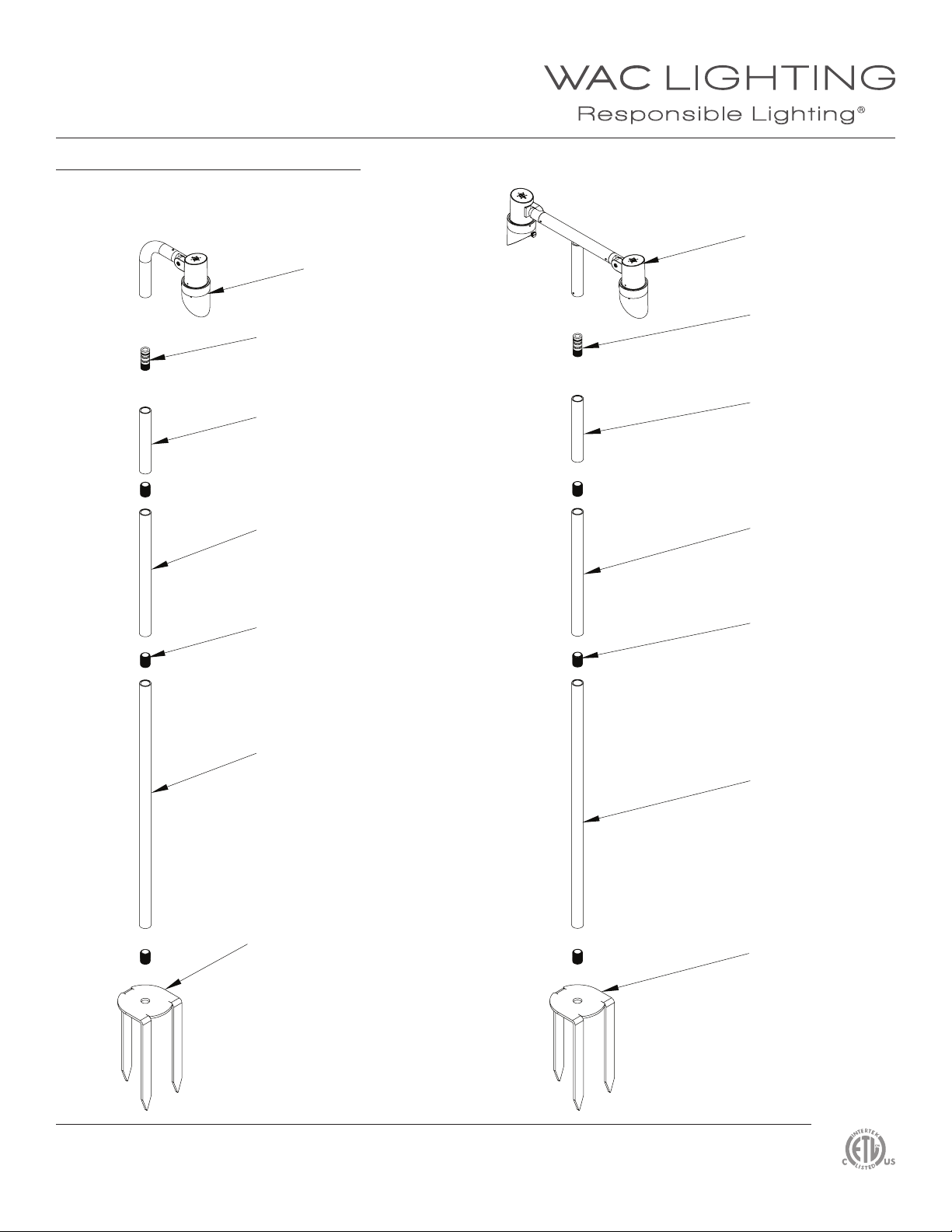

For Model 6111 & 6211 (Soft Ground Installation)
Dierent heights can be achieved by joining the rods together.
Fixture Aiming can be adjusted by using the provided Hex Key.
6111
I Connector
6” Rod
6211
I Connector
6” Rod
12” Rod
I Coupler
24” Rod
Stainless Steel Spike
12” Rod
I Coupler
24” Rod
Stainless Steel Spike
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2, 2017 9:04 AM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
7
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
