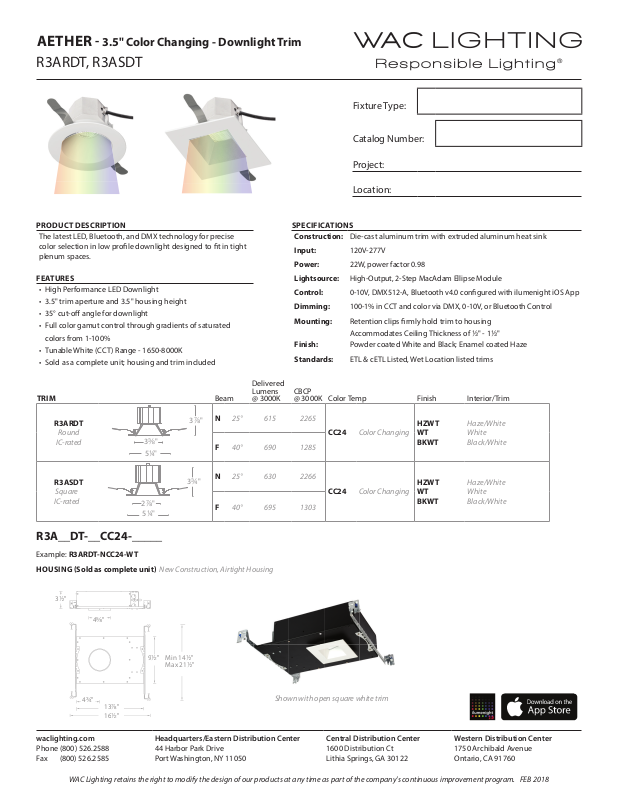

AETHER 3.5" Color Changing - Downlight Trim
3
2
4
s
w
R3ARDT, R3ASDT
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
The latest LED, Bluetooth, and DMX technology for precise
color selection in low pro le downlight designed to t in tight
plenum spaces.
FEATURES
• High Performance LED Downlight
• 3.5" trim aperture and 3.5" housing height
• 35° cut-o angle for downlight
• Full color gamut control through gradients of saturated
colors from 1-100%
• Tunable White (CCT) Range - 1650-8000K
• Sold as a complete unit; housing and trim included
TRIM Beam
N 25° 615 2265
R3ARDT
Round
IC-rated
R3ASDT
Square
IC-rated
3a"
54"
2d"
54"
3d"
F 40° 690 1285
N 25° 630 2266
3w"
F 40° 695 1303
Delivered
Lumens
@ 3000K
SPECIFICATIONS
Construction: Die-cast aluminum trim with extruded aluminum heat sink
Input:
Power:
Lightsource:
Control:
Dimming:
Mounting: Retention clips rmly hold trim to housing
Finish: Powder coated White and Black; Enamel coated Haze
Standards: ETL & cETL Listed, Wet Location listed trims
CBCP
@ 3000K Color Temp Finish Interior/Trim
120V-277V
22W, power factor 0.98
High-Output, 2-Step MacAdam Ellipse Module
0-10V, DMX512-A, Bluetooth v4.0 con gured with ilumenight iOS App
100-1% in CCT and color via DMX, 0-10V, or Bluetooth Control
Accommodates Ceiling Thickness of 2" - 12"
CC24 Color Changing
CC24 Color Changing
HZWT
WT
BKWT
HZWT
WT
BKWT
Haze/White
White
Black/White
Haze/White
White
Black/White
R3A__DT-__CC24-_____
Example: R3ARDT-NCC24-WT
HOUSING Sold as complete unit New Construction, Airtight Housing
Shown with open square white trim
