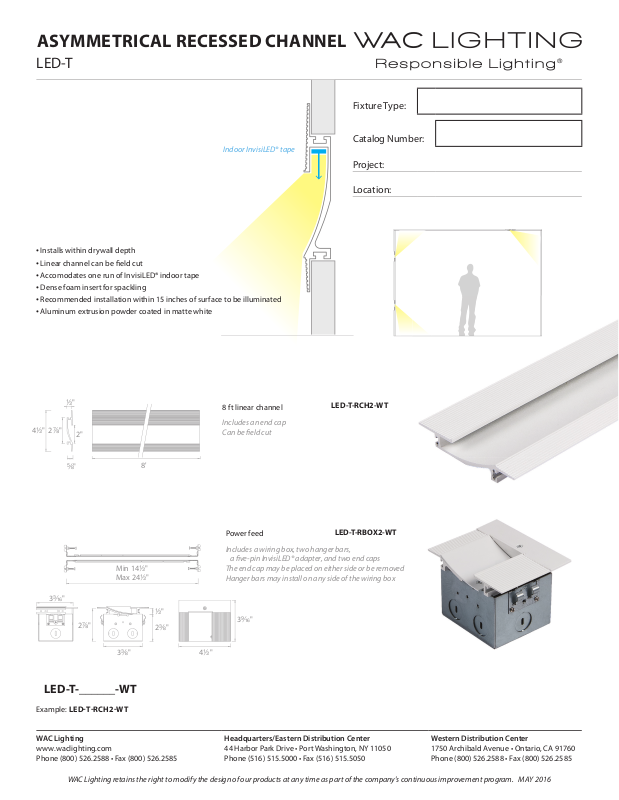

ASYMMETRICAL RECESSED CHANNEL
LED-T
Indoor InvisiLED® tape
• Installs within drywall depth
• Linear channel can be fi eld cut
• Accomodates one run of InvisiLED® indoor tape
• Dense foam insert for spackling
• Recommended installation within 15 inches of surface to be illuminated
• Aluminum extrusion powder coated in matte white
Fixture Type:
Catalog Number:
Project:
Location:
2"
42" 2d"
2"
s"
3x"
2d"
LED-T-______-WT
8'
Min 142"
Max 242"
3a"
2"
2a"
8 ft linear channel
Includes an end cap
Can be eld cut
Power feed
Includes a wiring box, two hanger bars,
a ve-pin InvisiLED® adapter, and two end caps
The end cap may be placed on either side or be removed
Hanger bars may install on any side of the wiring box
3b"
42"
LED-T-RCH2-WT
LED-T-RBOX2-WT
Example: LEDTRCH2WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
ASYMMETRICAL RECESSED CHANNEL
LED-T
PERFORMANCE CHART
InvisiLED® Pro3 InvisiLED® Pro2 InvisiLED® Pro InvisiLED® LITE
2200K 105
2700K 185 155 95 75
3000K 190 145 95 85
3500K 215 160 100
4500K 230 160 105
One strip of tape was used under the diuser, data shows lumen output per foot
