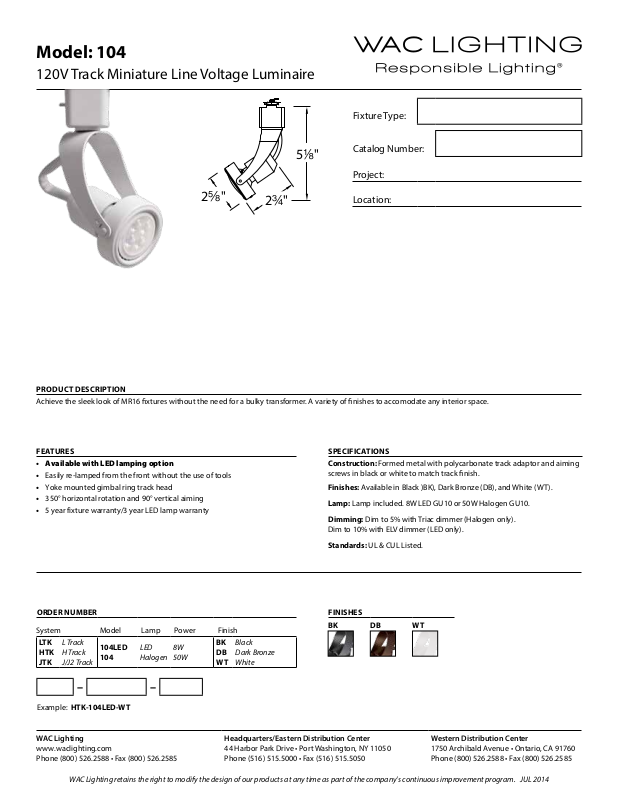

Model: 104
120V Track Miniature Line Voltage Luminaire
Fixture Type:
58"
Catalog Number:
Project:
2s"
PRODUCT DESCRIPTION
Achieve the sleek look of MR16 xtures without the need for a bulky transformer. A variety of nishes to accomodate any interior space.
2w"
Location:
FEATURES
• Available with LED lamping option
• Easily re-lamped from the front without the use of tools
• Yoke mounted gimbal ring track head
• 350° horizontal rotation and 90° vertical aiming
• 5 year fixture warranty/3 year LED lamp warranty
ORDER NUMBER
System Model Lamp Power Finish
LTK
HTK
JTK
L Track
H Track
J/J2 Track
104LED
104
LED
Halogen
8W
50W
BK
DB
WT
– –
Example: HTK-104LED-WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
SPECIFICATIONS
Construction: Formed metal with polycarbonate track adaptor and aiming
screws in black or white to match track nish.
Finishes: Available in Black )BK), Dark Bronze (DB), and White (WT).
Lamp: Lamp included. 8W LED GU10 or 50W Halogen GU10.
Dimming: Dim to 5% with Triac dimmer (Halogen only).
Dim to 10% with ELV dimmer (LED only).
Standards: UL & CUL Listed.
FINISHES
BK DB WT
Black
Dark Bronze
White
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
