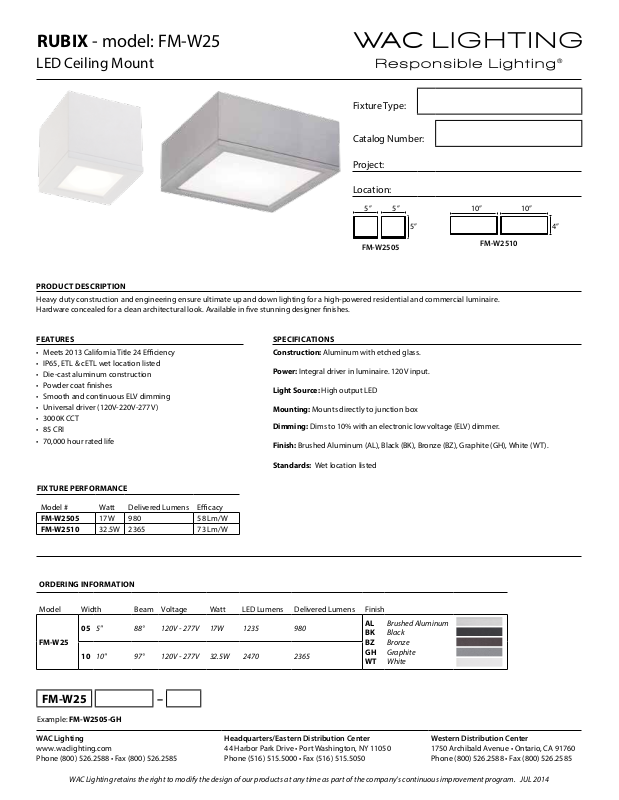

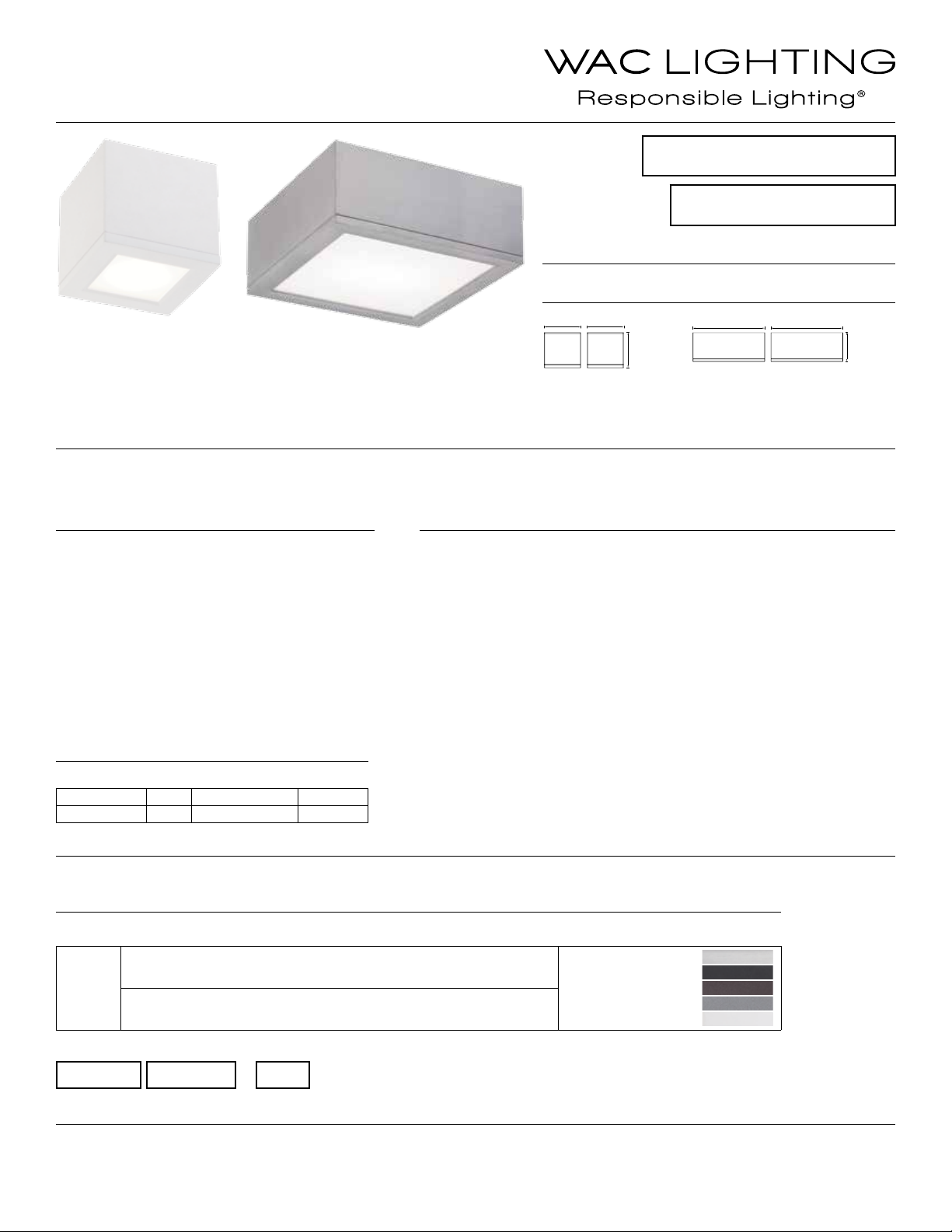

Page 1
RUBIX - model: FM-W25
LED Ceiling Mount
Fixture Type:
Catalog Number:
Project:
Location:
5” 5”
5”
FM-W2505
PRODUCT DESCRIPTION
Heavy duty construction and engineering ensure ultimate up and down lighting for a high-powered residential and commercial luminaire.
Hardware concealed for a clean architectural look. Available in ve stunning designer nishes.
FEATURES
• Meets 2013 California Title 24 Eciency
• IP65, ETL & cETL wet location listed
• Die-cast aluminum construction
• Powder coat nishes
• Smooth and continuous ELV dimming
• Universal driver (120V-220V-277V)
• 3000K CCT
• 85 CRI
• 70,000 hour rated life
FIXTURE PERFORMANCE
SPECIFICATIONS
Construction: Aluminum with etched glass.
Power: Integral driver in luminaire. 120V input.
Light Source: High output LED
Mounting: Mounts directly to junction box
Dimming:
Finish: Brushed Aluminum (AL), Black (BK), Bronze (BZ), Graphite (GH), White (WT ).
Standards: Wet location listed
Dims to 10% with an electronic low voltage (ELV) dimmer.
FM-W2510
10”10”
4”
Model # Watt Delivered Lumens Ecacy
FM-W2505 17W 980 58 Lm/W
FM-W2510 32.5W 2365 73 Lm/W
ORDERING INFORMATION
Model Width Beam Voltage Watt LED Lumens Delivered Lumens Finish
05 5" 88° 120V - 277V 17W 1235 980
FM-W25
10 10" 97° 120V - 277V 32.5W 2470 2365
AL
BK
BZ
GH
WT
FM-W25 –
Example: FM-W2505-GH
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Brushed Aluminum
Black
Bronze
Graphite
White
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
RUBIX - model: FM-W25
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13110008-2
PROTECTION ANGLE:
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
2.70
0.4600
DATA OF LAMP PHOTOMETRIC DATA Eff: 58.57 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
/
18
120
978.136
1
120.0
457.3
100.0
978.14
DIRECT
0.0
100.0
1.17
1.15
0.0,50.1
0.0,49.9
1.25
1.30
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING,
ou=LAB,
[email protected],
c=CN
日期：2013.11.05 17:10:09 +08'00'
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
6.00
1.00
DATA OF LAMP PHOTOMETRIC DATA Eff: 72.65 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
BXRA-30E1200-B
34
120
2366.75
1
120.0
1002
100.0
2366.7
DIRECT
0.0
100.0
1.16
1.18
0.0,51.8
0.0,48.2
1.25
1.30

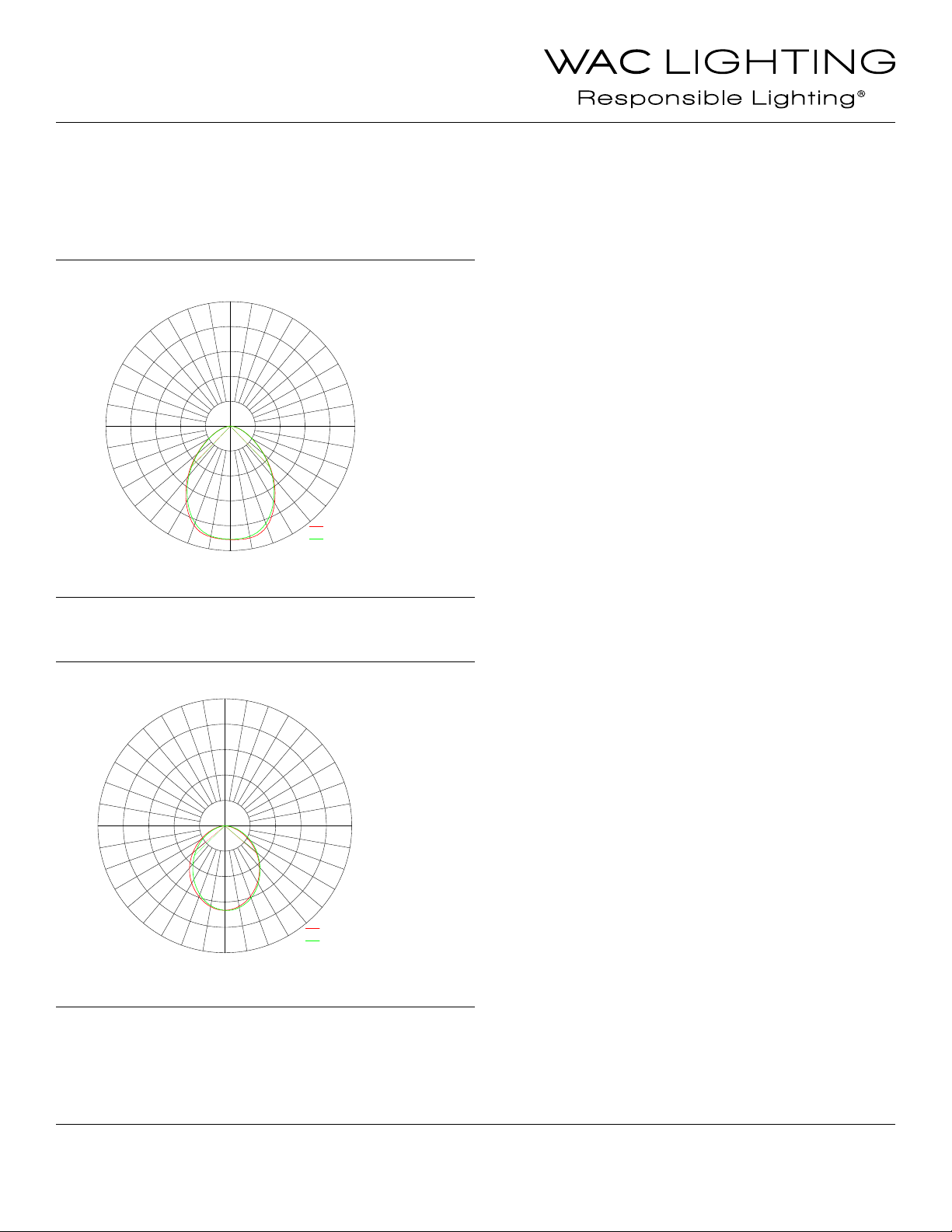

LED Ceiling Mount Photometrics - 3000K
FM-W2505 (5" Diameter)
-/+180
-150
150
-120
-90
-60
-30
AVERAGE BEAM ANGLE(50%):87.8 DEG
0
100
200
300
400
500
0
30
120
90
60
UNIT:cd
UNIT:cd
C0/180,88.2deg
C90/270,87.4deg
FM-W2510 (10" Diameter)
-150
-120
-/+180
150
120
-90
-60
-30
AVERAGE BEAM ANGLE(50%):97.1 DEG
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE 2012
0
300
600
900
1200
1500
0
30
90
60
UNIT:cd
UNIT:cd
C0/180,98.7deg
C90/270,95.6deg
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
