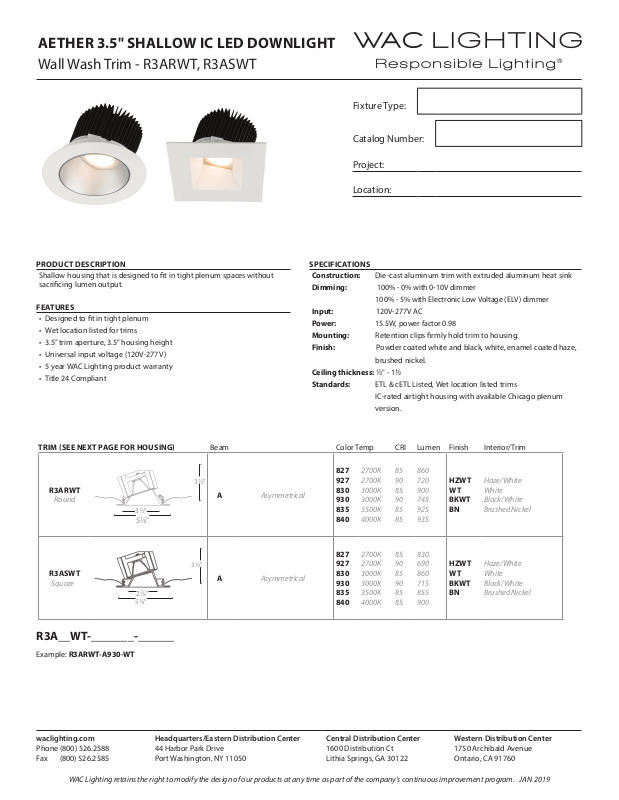

AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Wall Wash Trim - R3ARWT, R3ASWT
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Shallow housing that is designed to t in tight plenum spaces without
sacri cing lumen output.
FEATURES
• Designed to t in tight plenum
• Wet location listed for trims
• 3.5” trim aperture, 3.5" housing height
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
• Title 24 Compliant
TRIM (SEE NEXT PAGE FOR HOUSING) Beam Color Temp CRI Lumen Finish Interior/Trim
R3ARWT
Round
32"
32"
A Asymmetrical
58"
R3ASWT
Square
2d"
58"
32"
A Asymmetrical
SPECIFICATIONS
Construction: Die-cast aluminum trim with extruded aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV) dimmer
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated white and black, white, enamel coated haze,
brushed nickel.
Ceiling thickness: 2" - 12
Standards: ETL & cETL Listed, Wet location listed trims
IC-rated airtight housing with available Chicago plenum
version.
827
927
830
930
835
840
827
927
830
930
835
840
100% - 0% with 0-10V dimmer
120V-277V AC
15.5W, power factor 0.98
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
85
860
90
720
85
900
90
745
85
925
85
935
85
830
90
690
85
860
90
715
85
855
85
900
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
R3A__WT-_______-______
Example: R3ARWT-A930-WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2019
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Housing - HR-3LED-H17A
HOUSING Model
32"
Shown with open square white trim
4w"
4s"
13d"
162"
92" Min 92"
Max 242"
HR-3LED-H17A
HR-3LED-H17AC
HR-3LED-H17____
Example: HR-3LED-H17A
AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Housing - HR-3LED-R20
HOUSING Model
MAX 24"
2d"
New Construction
IC-rated, Airtight
New Construction
IC-rated, Airtight
Chicago Plenum
HR-3LED-R20____
Example: HR-3LED-R20
2½"
28"
5½"
2¼"
HR-3LED-20
Remodel
Non IC - Rated
