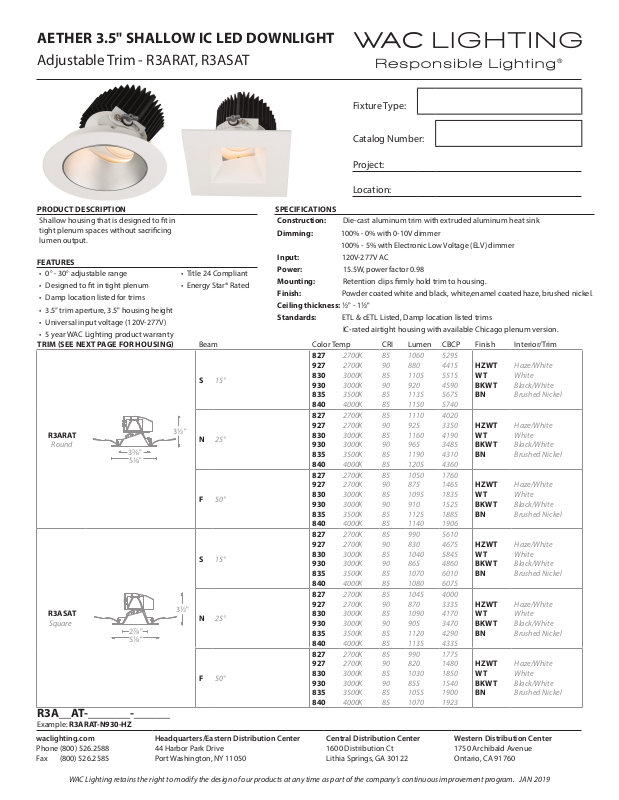

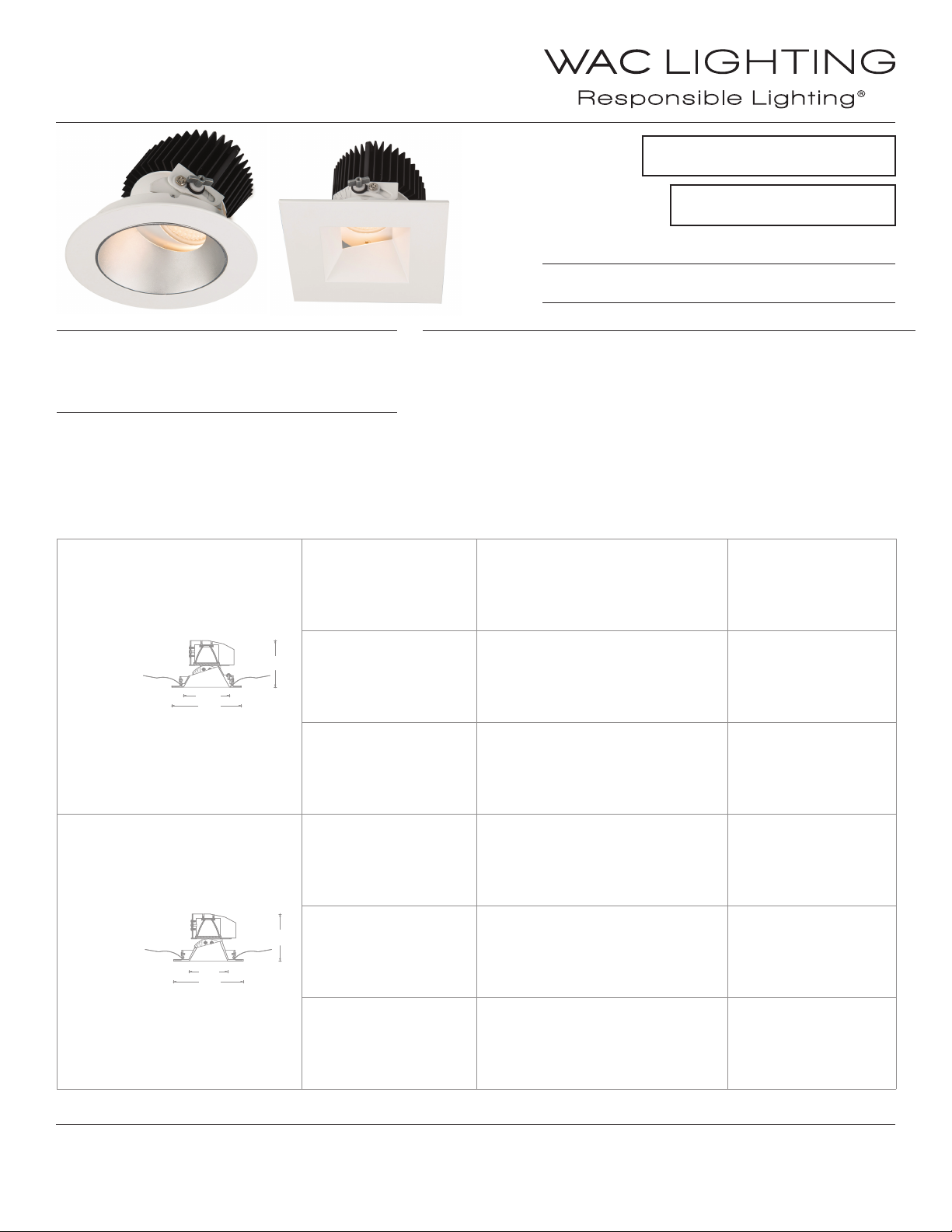

AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Adjustable Trim - R3ARAT, R3ASAT
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Shallow housing that is designed to t in
tight plenum spaces without sacricing
lumen output.
FEATURES
• 0° - 30° adjustable range
• Designed to t in tight plenum
• Damp location listed for trims
• 3.5” trim aperture, 3.5" housing height
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
TRIM (SEE NEXT PAGE FOR HOUSING) Beam Color Temp CRI Lumen CBCP Finish Interior/Trim
R3ARAT
Round
R3ASAT
Square
3a"
58"
2d"
58"
• Title 24 Compliant
• Energy Star® Rated
S 15°
32"
N 25°
F 50°
S 15°
32"
N 25°
F 50°
SPECIFICATIONS
Construction: Die-cast aluminum trim with extruded aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV) dimmer
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated white and black, white,enamel coated haze, brushed nickel.
Ceiling thickness: 2" - 12"
Standards: ETL & cETL Listed, Damp location listed trims
IC-rated airtight housing with available Chicago plenum version.
100% - 0% with 0-10V dimmer
120V-277V AC
15.5W, power factor 0.98
827
927
830
930
835
840
827
927
830
930
835
840
827
927
830
930
835
840
827
927
830
930
835
840
827
927
830
930
835
840
827
927
830
930
835
840
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
85
1060
90
880
85
1105
90
920
85
1135
85
1150
85
1110
90
925
85
1160
90
965
85
1190
85
1205
85
1050
90
875
85
1095
90
910
85
1125
85
1140
85
990
90
830
85
1040
90
865
85
1070
85
1080
85
1045
90
870
85
1090
90
905
85
1120
85
1135
85
990
90
820
85
1030
90
855
85
1055
85
1070
5295
4415
5515
4590
5675
5740
4020
3350
4190
3485
4310
4360
1760
1465
1835
1525
1885
1906
5610
4675
5845
4860
6010
6075
4000
3335
4170
3470
4290
4335
1775
1480
1850
1540
1900
1923
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
HZWT
WT
BKWT
BN
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
Haze/White
White
Black/White
Brushed Nickel
R3A__AT-_______-______
Example: R3ARAT-N930-HZ
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2019
Page 2

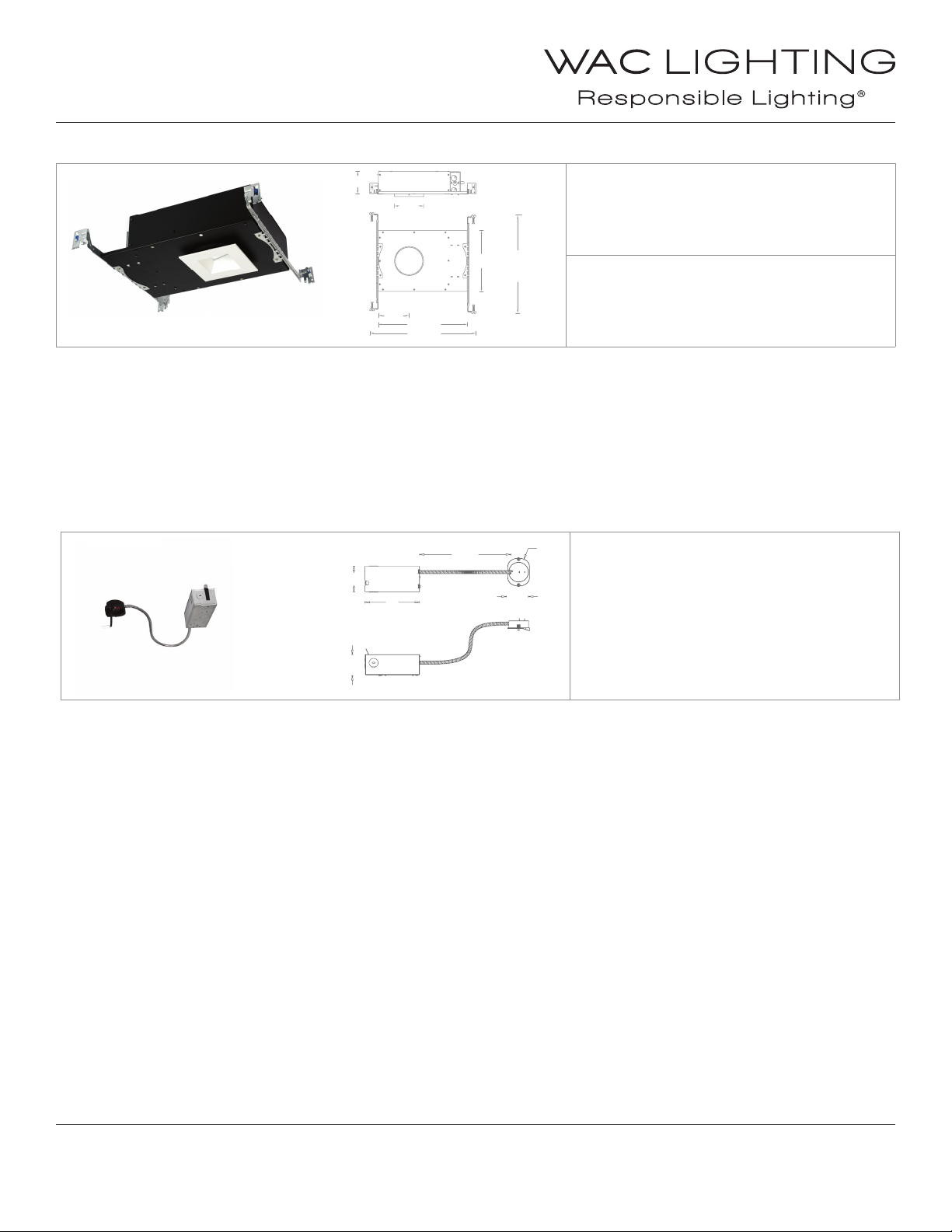

AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Housing - HR-3LED-H17A
HOUSING Model
32"
Shown with open square white trim
4w"
4s"
13d"
162"
92" Min 92"
Max 242"
HR-3LED-H17A
HR-3LED-H17AC
HR-3LED-H17____
Example: HR-3LED-H17A
AETHER 3.5" SHALLOW IC LED DOWNLIGHT
Housing - HR-3LED-R20
HOUSING Model
MAX 24"
2d"
New Construction
IC-rated, Airtight
New Construction
IC-rated, Airtight
Chicago Plenum
HR-3LED-R20____
Example: HR-3LED-R20
2½"
28"
5½"
2¼"
HR-3LED-R20
Remodel
Non IC - Rated
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2019
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
