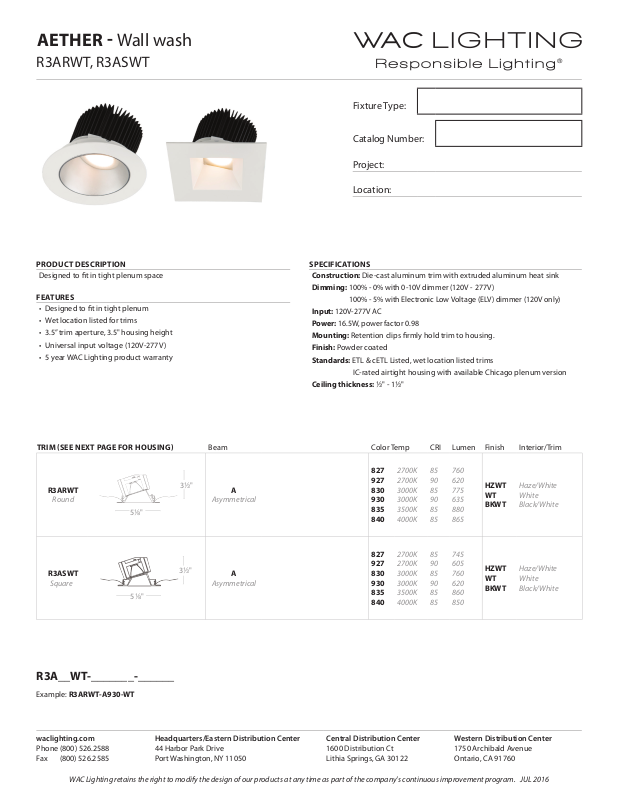

AETHER Wall wash
R3ARWT, R3ASWT
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Designed to t in tight plenum space
FEATURES
• Designed to t in tight plenum
• Wet location listed for trims
• 3.5” trim aperture, 3.5" housing height
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen Finish Interior/Trim
R3ARWT
Round
58"
R3ASWT
Square
58"
32"
32"
A
Asymmetrical
A
Asymmetrical
SPECIFICATIONS
Construction: Die-cast aluminum trim with extruded aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV) dimmer (120V only)
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated
Standards: ETL & cETL Listed, wet location listed trims
IC-rated airtight housing with available Chicago plenum version
Ceiling thickness: 2" - 12"
100% - 0% with 0-10V dimmer (120V - 277V)
120V-277V AC
16.5W, power factor 0.98
827
927
830
930
835
840
827
927
830
930
835
840
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
85
760
90
620
85
775
90
635
85
880
85
865
85
745
90
605
85
760
90
620
85
860
85
850
HZWT
WT
BKWT
HZWT
WT
BKWT
Haze/White
White
Black/White
Haze/White
White
Black/White
R3A__WT-_______-______
Example: R3ARWT-A930-WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER Housing
HR-3LED-H17A
HOUSING Model
32"
Shown with open square white trim
HR-3LED-H17____
Example: HR-3LED-H17A
4w"
4s"
13d"
162"
92" Min 142"
Max 212"
HR-3LED-H17A
HR-3LED-H17AC
New Construction
IC-rated, Airtight
New Construction
IC-rated, Airtight
Chicago Plenum
