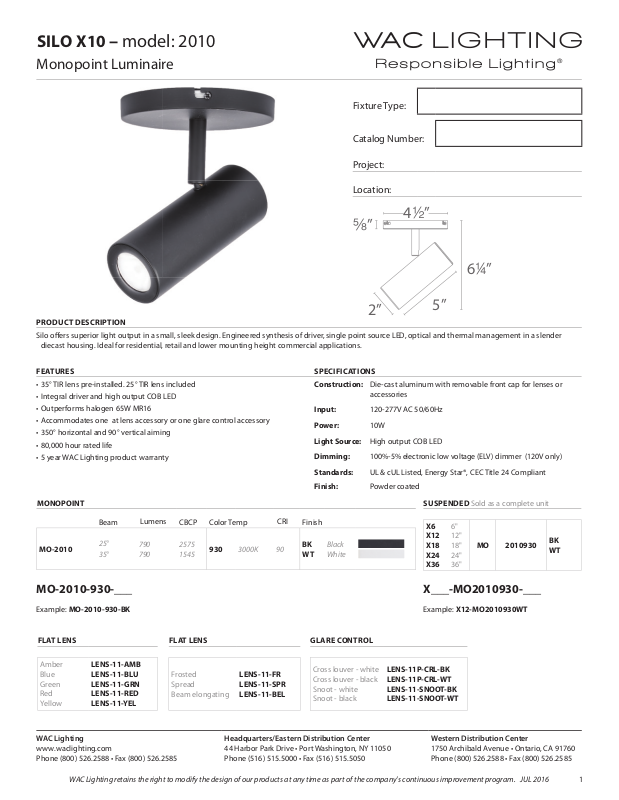

Page 1
SILO X10 – model: 2010
Monopoint Luminaire
Fixture Type:
Catalog Number:
Project:
Location:
42”
s”
64”
PRODUCT DESCRIPTION
2”
Silo o ers superior light output in a small, sleek design. Engineered synthesis of driver, single point source LED, optical and thermal management in a slender
diecast housing. Ideal for residential, retail and lower mounting height commercial applications.
FEATURES
• 35° TIR lens pre-installed. 25° TIR lens included
• Integral driver and high output COB LED
• Outperforms halogen 65W MR16
• Accommodates one at lens accessory or one glare control accessory
• 350° horizontal and 90° vertical aiming
• 80,000 hour rated life
• 5 year WAC Lighting product warranty
MONOPOINT
Lumens
790
790
CBCP Color Temp
2575
930 3000K 90
1545
MO-2010
Beam
25°
35°
MO-2010-930-___
CRI
SPECIFICATIONS
Construction: Die-cast aluminum with removable front cap for lenses or
Input: 120-277V AC 50/60Hz
Power: 10W
Light Source: High output COB LED
Dimming:
Standards: UL & cUL Listed, Energy Star®, CEC Title 24 Compliant
Finish: Powder coated
Finish
BKWTBlack
White
accessories
100%-5% electronic low voltage (ELV) dimmer (120V only)
5”
SUSPENDED Sold as a complete unit
X6
6"
X12
12"
X18
18"
X24
X36
X___-MO2010930-___
MO 2010930
24"
36"
BK
WT
Example: MO-2010-930-BK
FLAT LENS
Amber
Blue
Green
Red
Yellow
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
LENS-11-AMB
LENS-11-BLU
LENS-11-GRN
LENS-11-RED
LENS-11-YEL
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2016
FLAT LENS
Frosted
Spread
Beam elongating
GLARE CONTROL
LENS-11-FR
LENS-11-SPR
LENS-11-BEL
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Cross louver - white
Cross louver - black
Snoot - white
Snoot - black
Example: X12-MO2010930WT
LENS-11P-CRL-BK
LENS-11P-CRL-WT
LENS-11-SNOOT-BK
LENS-11-SNOOT-WT
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
