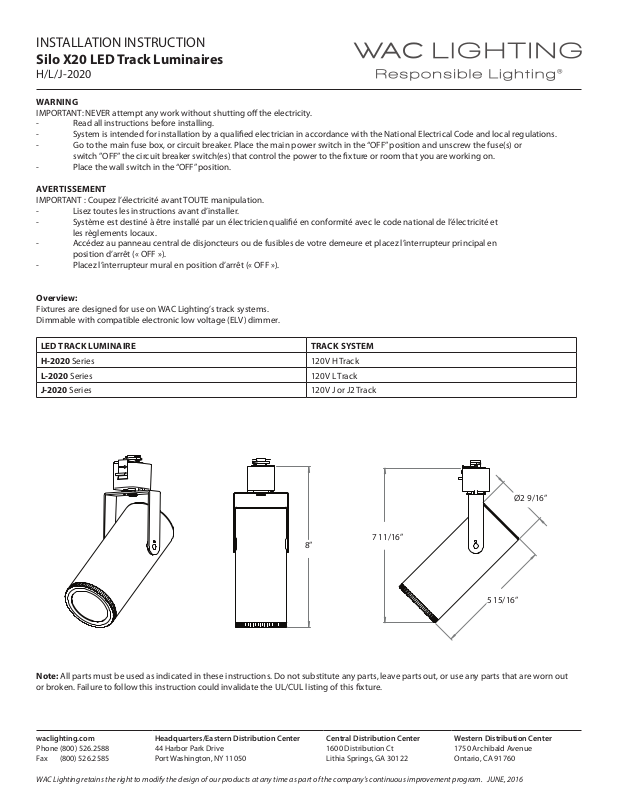

INSTALLATION INSTRUCTION
Silo X20 LED Track Luminaires
H/L/J-2020
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et
les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
Overview:
Fixtures are designed for use on WAC Lighting’s track systems.
Dimmable with compatible electronic low voltage (ELV) dimmer.
LED TRACK LUMINAIRE TRACK SYSTEM
H-2020 Series 120V H Track
L-2020 Series 120V L Track
J-2020 Series 120V J or J2 Track

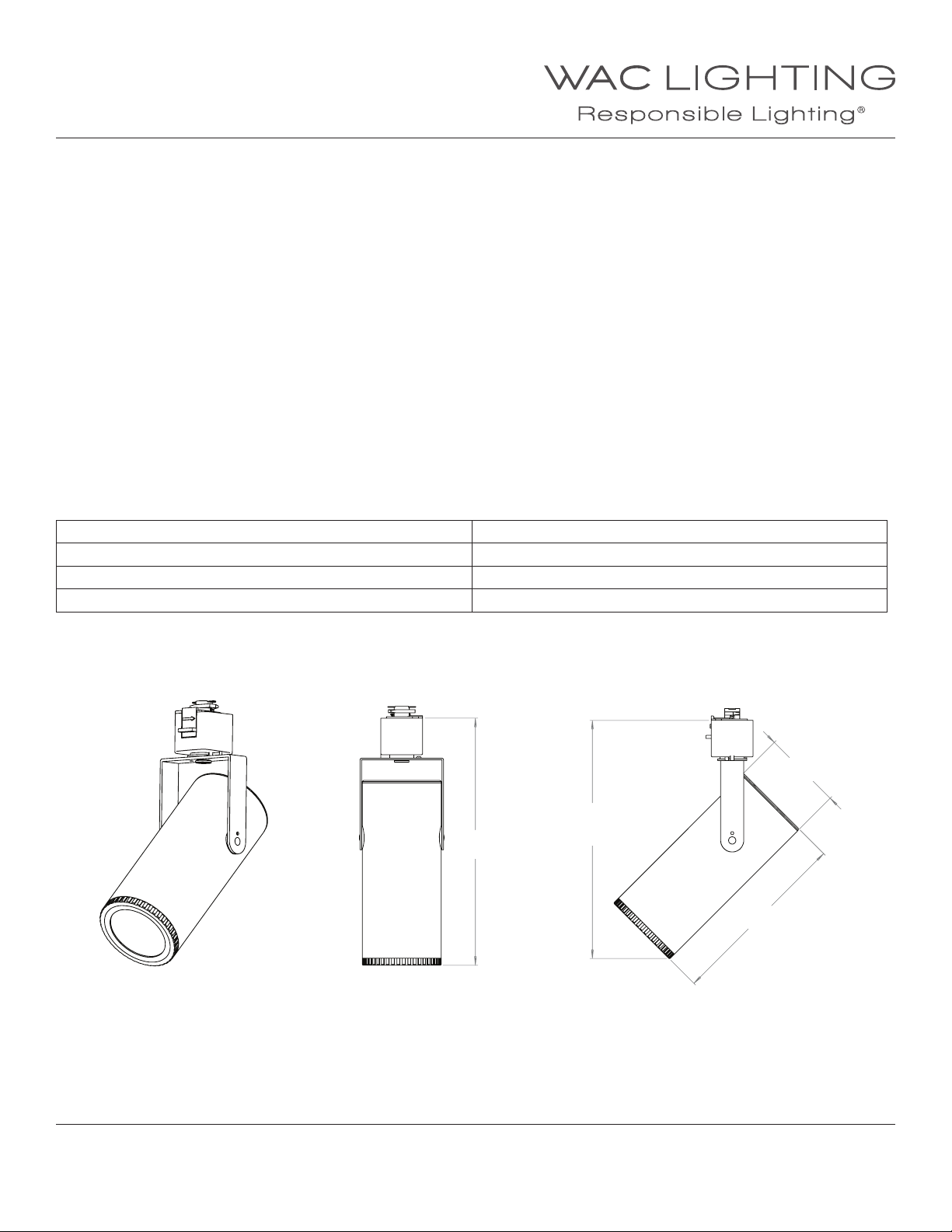

8”
Ø2 9/16”
7 11/16”
5 15/16”
Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the UL/CUL listing of this xture.
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
INSTALLATION INSTRUCTION
Silo X20 LED Track Luminaires
H/L/J-2020

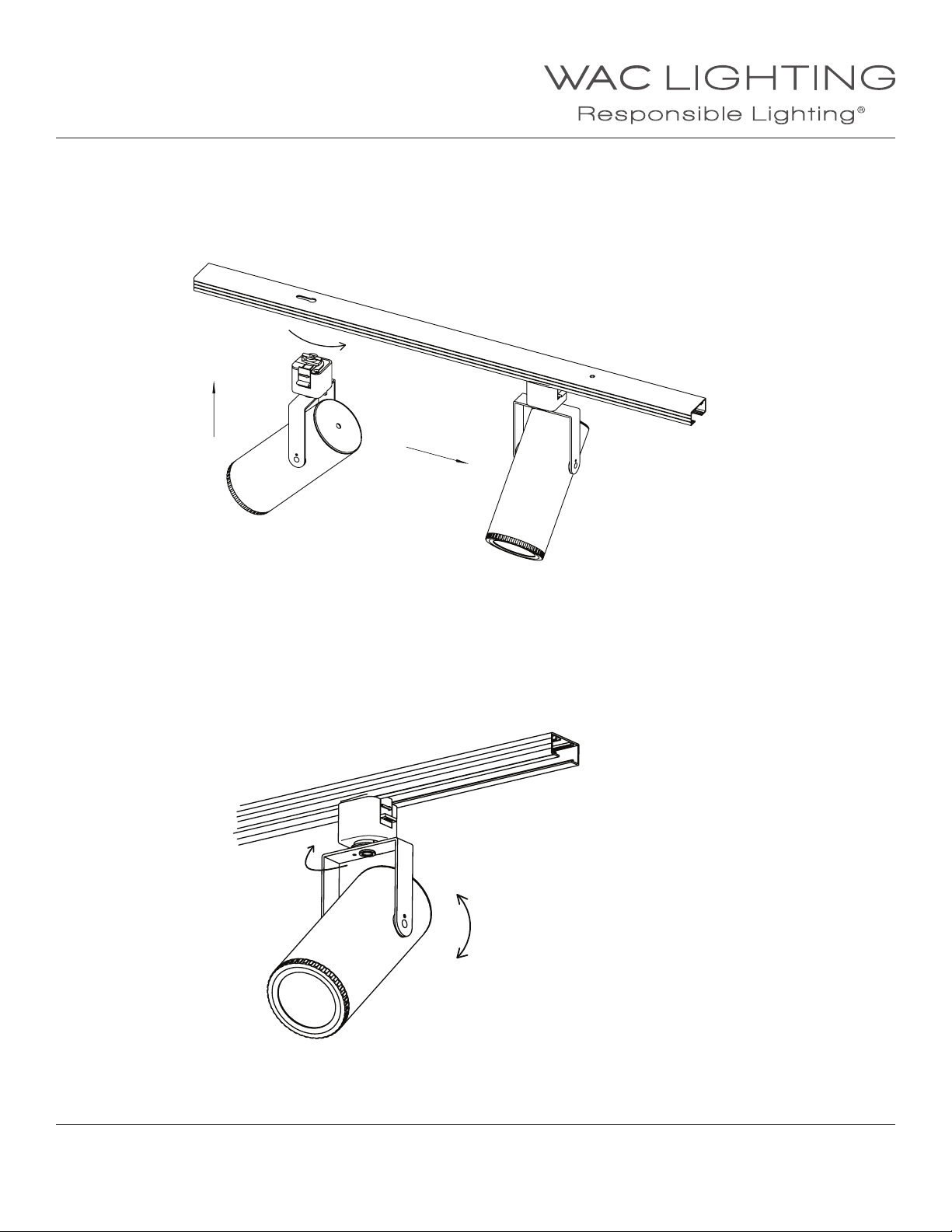

Fixture installation for H/ L/ J Track: (Fig.1)
1. The track has a groove running its length to indicate polarity and the locking tab has an arrow indicating locking direction.
2. Insert adapter into track slot. The arrow should point away from the grooved side of the track.
3. Push up and rotate the adapter into the lock position.
4. Reverse procedure to remove. The xture may be positioned anywhere along the track.
Fig.1
FIXTURE POSITIONING: Fig.2
Power on xture, rotate the luminaire’s body horizontally or vertically to aim it properly.
The xture can rotate ±90°vertically and 355 °horizontally.
Fig.2
355°
±90° from vertical position
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 3
INSTALLATION INSTRUCTION
Silo X20 LED Track Luminaires
H/L/J-2020

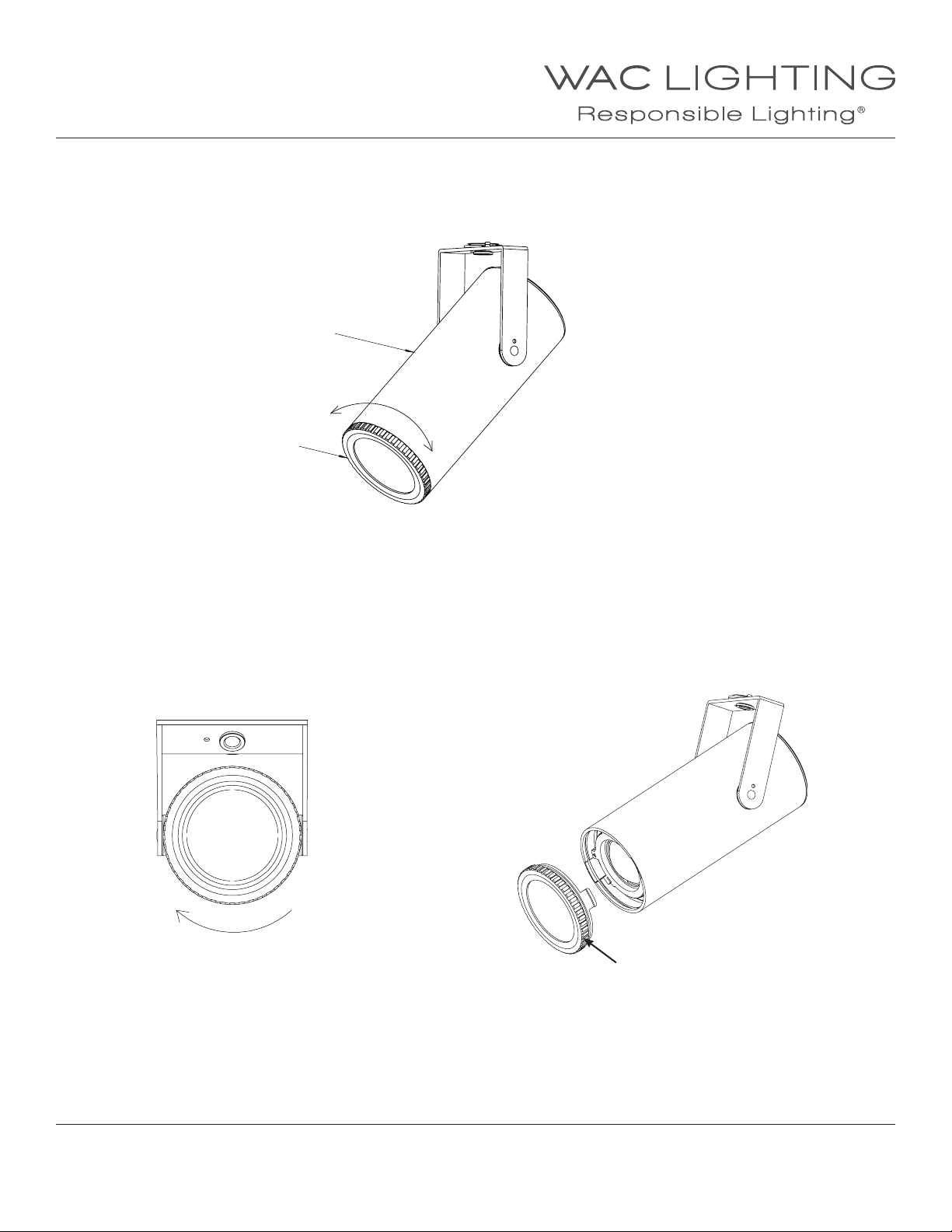

BEAM ANGLE ADJUSTMENT : Fig.3
1. Hold xture body with one hand and front cap with another.
2. Grip the front cap with two ngers and rotate it gently clockwise or counter clockwise until desired beam angle is achieved.
3. Cease rotation when you feel resistance as beam angle is reaching its minimum or maximum
Fig.3
Fixture Body
Counter Clockwise
Increase beam angle
Front Cap
ACCESSORIES:
1. With xture powered o and front cap facing toward you, rotate the front cap clockwise just passed the position you feel a “click” (Fig. 4)
2. Gently, while holding xture body secure, rock front cap assembly back and forth while pulling it away from xture body to remove
front cap assembly (Fig. 5)
Beam angle
adjustment
Clockwise
Decrease beam angle
Fig.4 Fig.5
Rotate clockwise
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Front cap assembly
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 4
INSTALLATION INSTRUCTION
Silo X20 LED Track Luminaires
H/L/J-2020

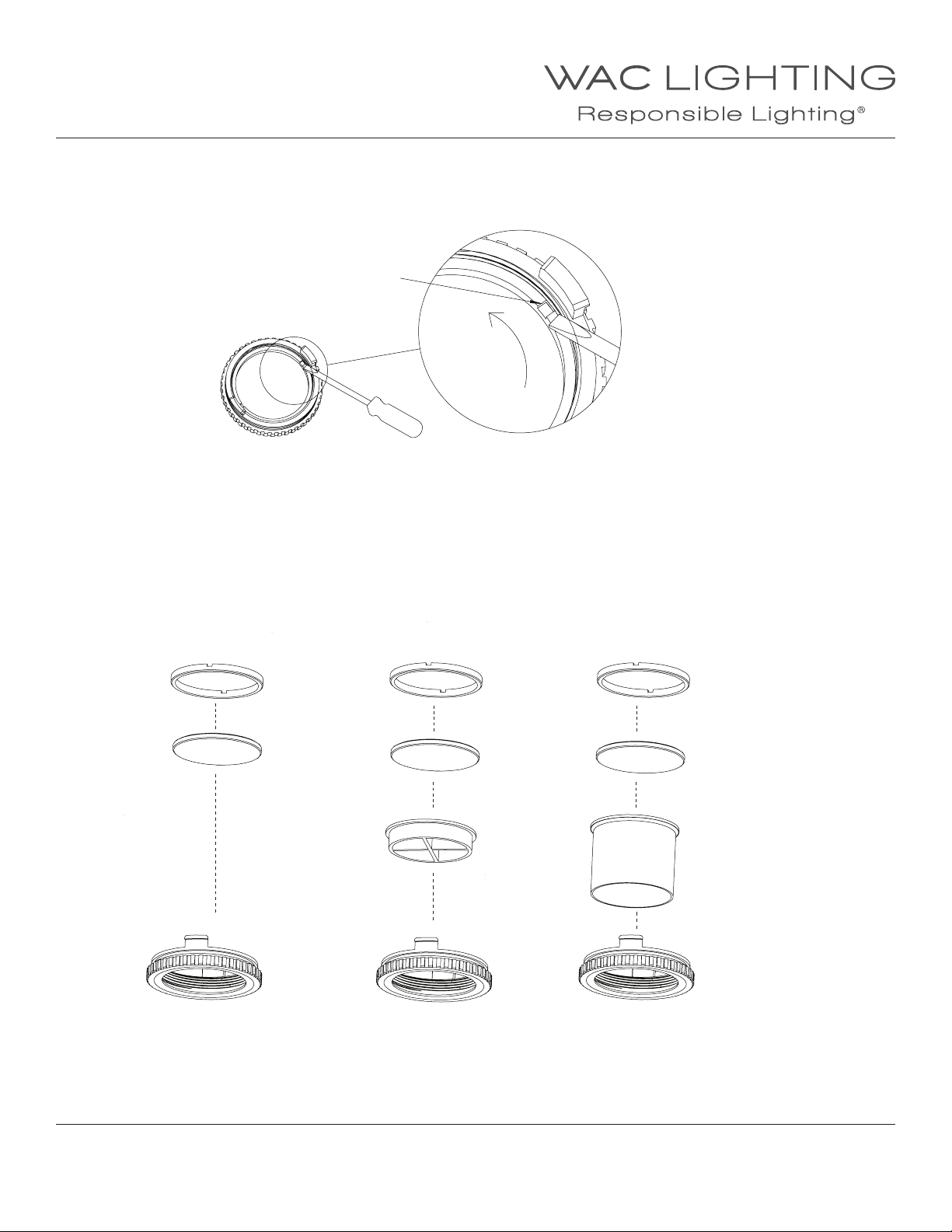

ACCESSORIES:
3. Use a at-tip-screwdriver to remove the accessory holder by rotating it counter clockwise. (Fig. 6)
Fig.6
Accessories Holder Slot
4. Fixture accommodates one lens and one glare control accessory. Refer to spec sheet for list of compatible accessories.
Install accessories between the front cap and accessory holder. Tighten accessory holder after accessories are installed. (Fig.7)
Fig.7
Accessory Holder
LENS-16
LENS-16-CRL LENS-16-SNOOT
Front Cap
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 5
INSTALLATION INSTRUCTION
Silo X20 LED Track Luminaires
H/L/J-2020

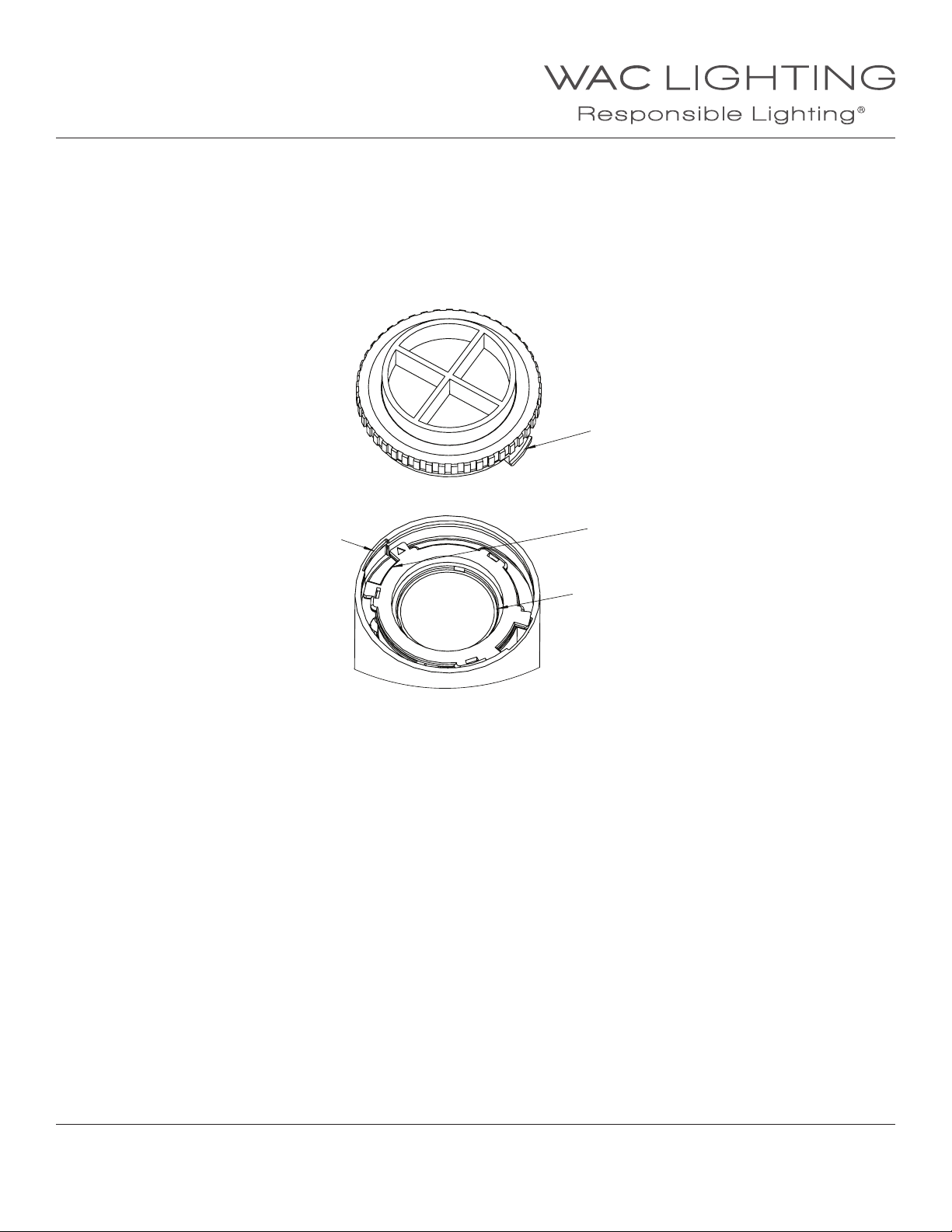

5. Ensure internal xture lens is still at the top position, and lens holder slots align with xture body slots.
Align the front cap tabs with the xture body slots and insert the front cap assembly back into the xture.
Once fully inserted, rotate the front cap assembly counter clockwise passed the “click” and to the desired beam angle. (Fig. 8)
Fig.8
Front Cap Tabs
Fixture body slot
Lens Holder Slot
Internal fixture lens positioned at top
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
