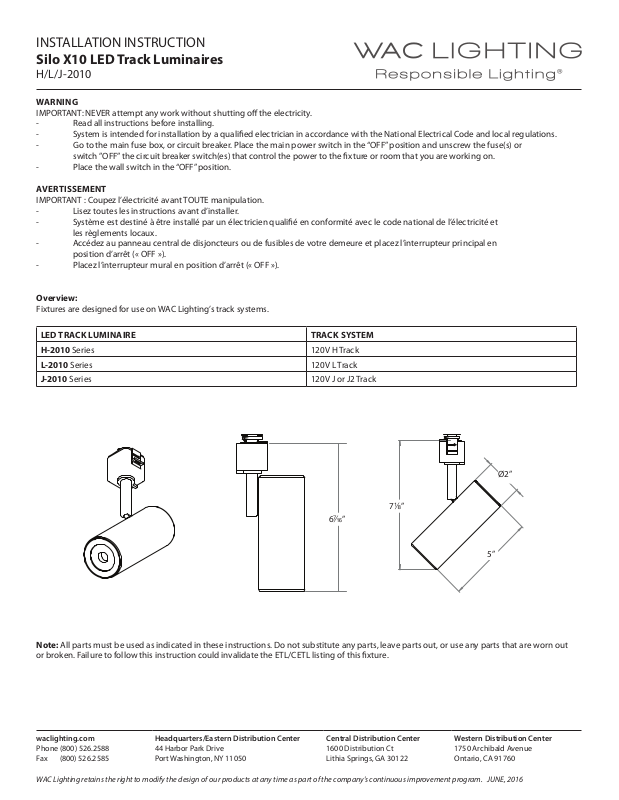

Page 1
INSTALLATION INSTRUCTION
Silo X10 LED Track Luminaires
H/L/J-2010
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et
les règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).

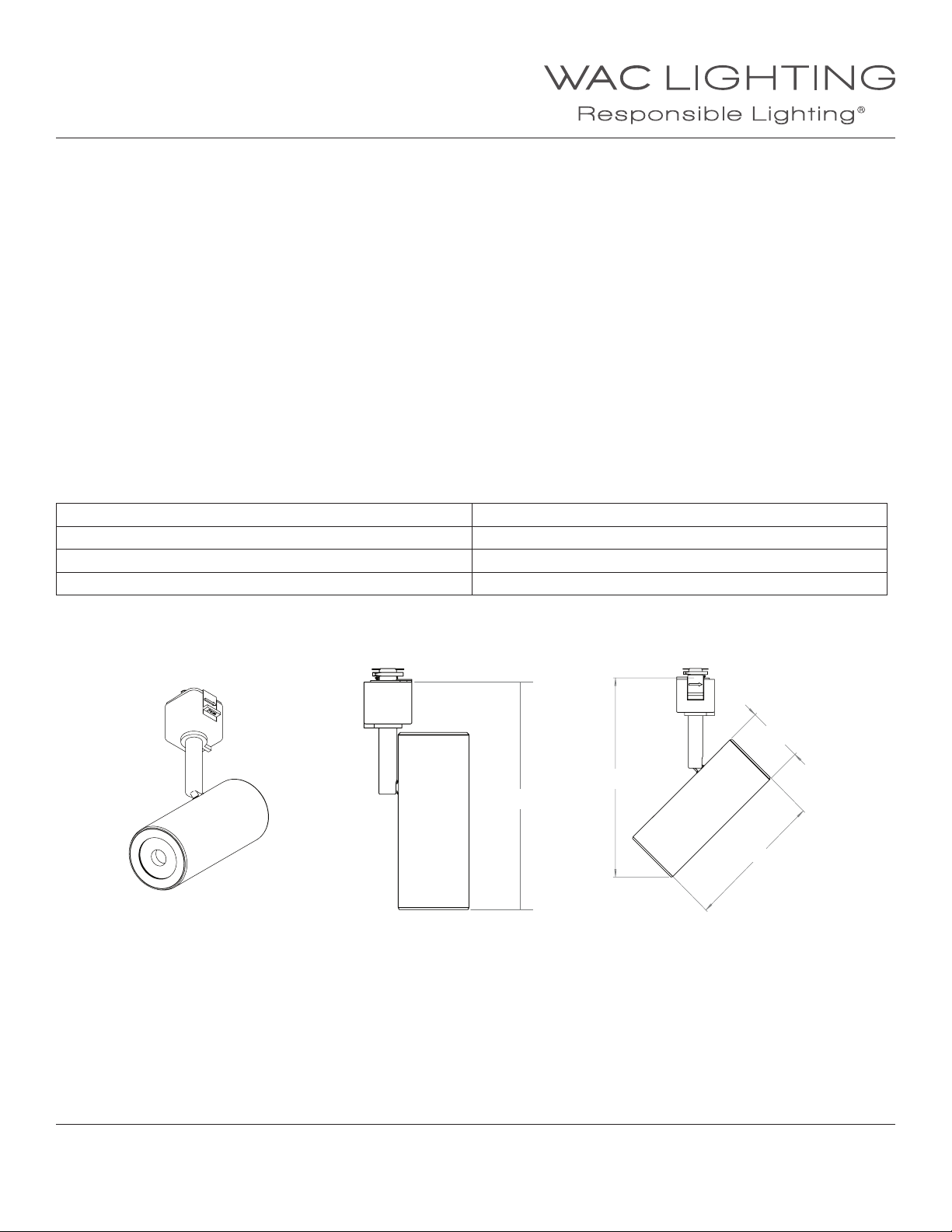

Overview:
Fixtures are designed for use on WAC Lighting’s track systems.
LED TRACK LUMINAIRE TRACK SYSTEM
H-2010 Series 120V H Track
L-2010 Series 120V L Track
J-2010 Series 120V J or J2 Track
Ø2”
78”
6v”
5”
Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Page 2
INSTALLATION INSTRUCTION
Silo X10 LED Track Luminaires
H/L/J-2010

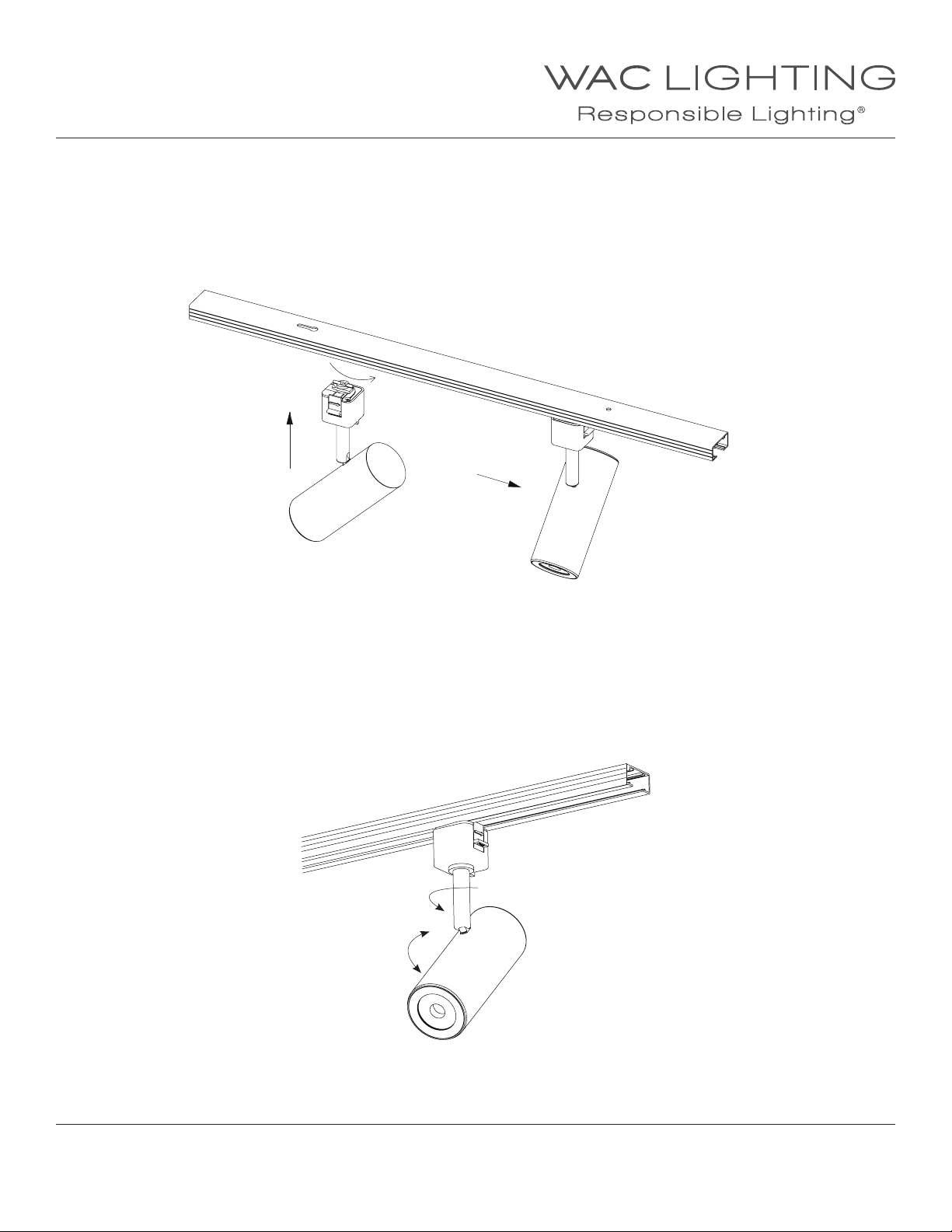

Fixture installation for H/ L/ J Track: (Fig.1)
1. The track has a groove running its length to indicate polarity and the locking tab has an arrow indicating locking direction.
2. Insert adapter into track slot. The arrow should point away from the grooved side of the track.
3. Push up and rotate the adapter into the lock position.
4. Reverse procedure to remove. The xture may be positioned anywhere along the track.
Fig.1
FIXTURE POSITIONING: Fig.2
Power on xture, rotate the luminaire’s body horizontally or vertically to aim it properly.
The xture can rotate ±90°vertically and 350 °horizontally.
Fig.2
350°
90°
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 3
INSTALLATION INSTRUCTION
Silo X10 LED Track Luminaires
H/L/J-2010

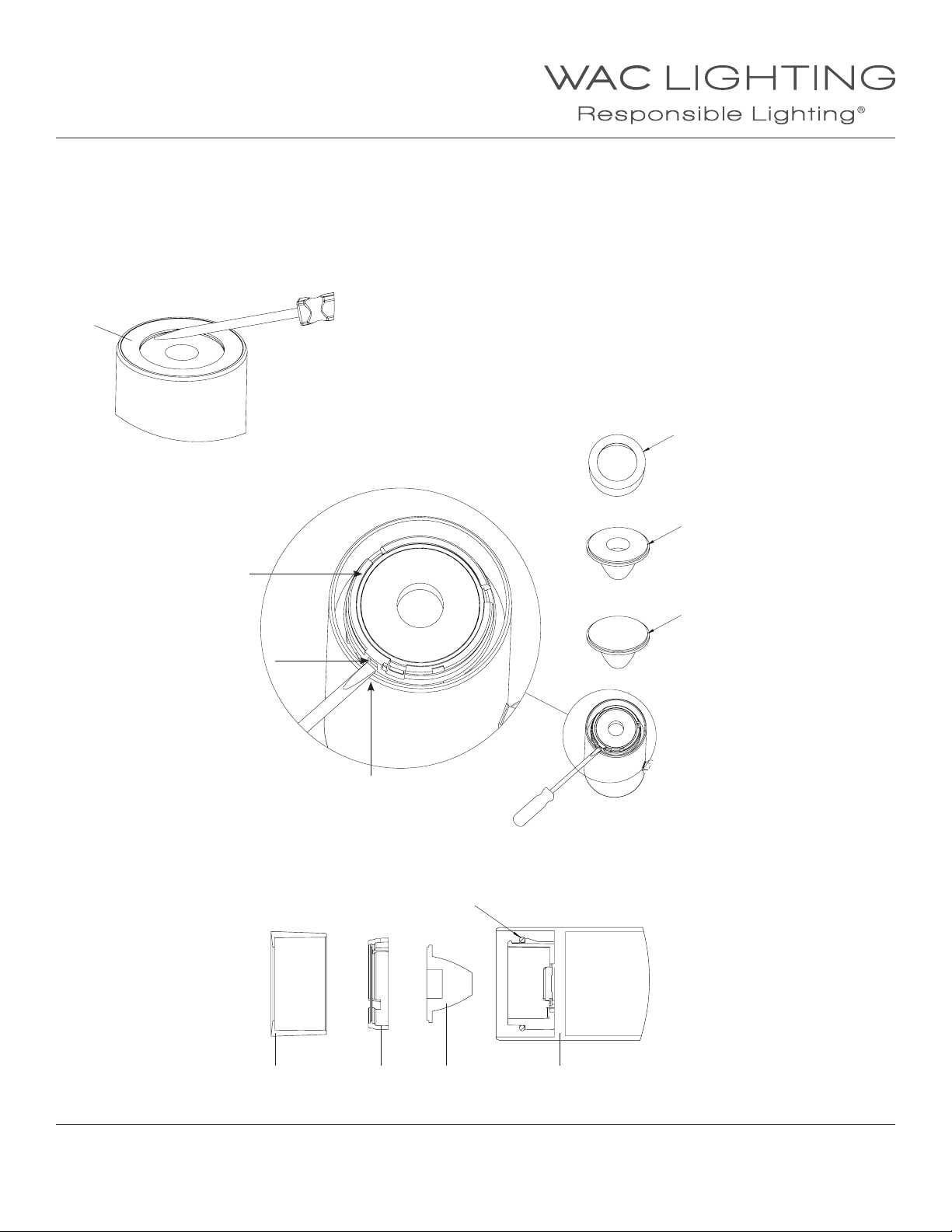

REPLACING TIR LENS :
1. Use a screw-driver or nger nail on inside lips to gently pull out the front cap of the xture. Fig.3
2. Use a at-tip screw-driver and gently pry in lens holder removal slot to remove lens holder. Fig.4
3. Replace the Lens with the desired one.
4. Align plastic tabs and reinstall lens holder on securely. Ensure silicone guide is in place. Fig.5
5. Reinstall front cap
Fig.3
Front Cap
Fig.4
Lens holder
Front Cap
Flood Lens
TIR-LUM6-F
Fig.5
Narrow Flood Lens
TIR-LUM6-N
Lens holder
removal slot
Pad painted edge to
protect from damage
Silicone Guide Ring
Front Cap Lens Holder TIR Lens Fixture Body
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2016
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 4
INSTALLATION INSTRUCTION
Silo X10 LED Track Luminaires
H/L/J-2010

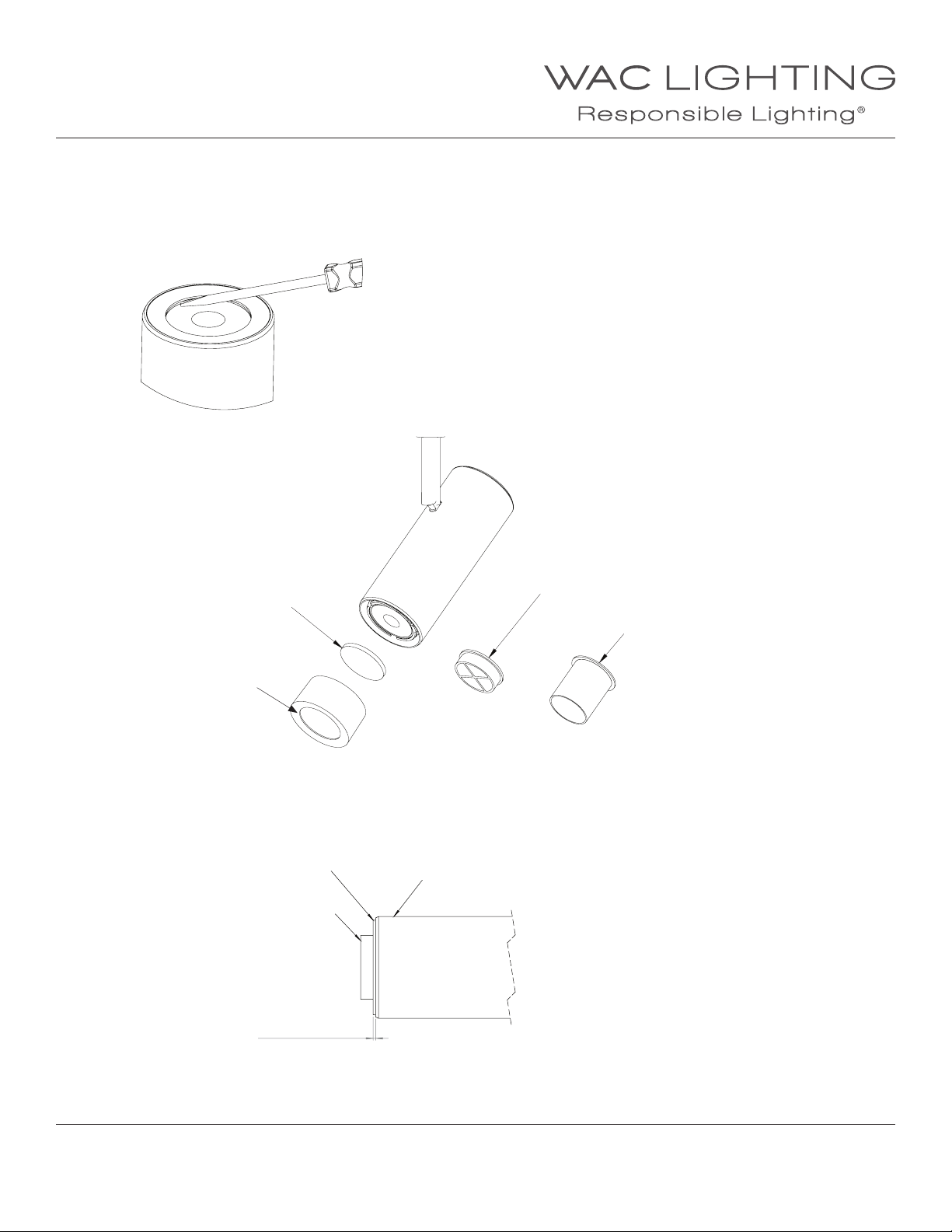

ACCESSORIES : Fig.6
1. Use a screw-driver or nger nail to gently remove the front cap of the xture.
2. Install the accessory into the front cap. Note: accepts one lens or one glare control accessory. Fig.7
3. Reinstall the front cap onto the xture. Note: front cap will protrude o front of xture the thickness of the accessory base. Fig.8
Fig.6
Fig.7
Fig.8
Lens Accessory
LENS-11
Front Cap
Cross Louver
Cross Louver
LENS-11P-CRL
Snoot
LENS-11-SNOOT
Front Cap
Fixture Body
Front Cap Protrusion
