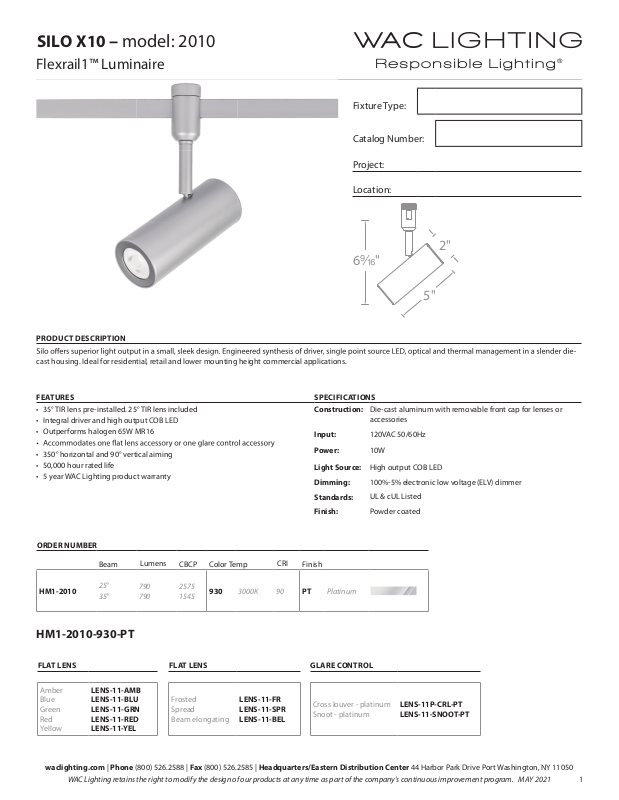

SILO X10 – model: 2010
Flexrail1™ Luminaire
Fixture Type:
Catalog Number:
Project:
Location:
2"
6b"
5"
PRODUCT DESCRIPTION
cast housing. Ideal for residential, retail and lower mounting height commercial applications.
FEATURES
• 35° TIR lens pre-installed. 25° TIR lens included
• Integral driver and high output COB LED
• Outperforms halogen 65W MR16
• 350° horizontal and 90° vertical aiming
• 50,000 hour rated life
• 5 year WAC Lighting product warranty
ORDER NUMBER
Lumens
790
790
CBCP Color Temp
2575
1545
HM1-2010
Beam
25°
35°
CRI
930 3000K 90 PT Platinum
SPECIFICATIONS
Construction: Die-cast aluminum with removable front cap for lenses or
Input: 120VAC 50/60Hz
Power: 10W
Light Source: High output COB LED
Dimming:
Standards:
Finish:
Finish
accessories
100%-5% electronic low voltage (ELV) dimmer
UL & cUL Listed
Powder coated
HM1-2010-930-PT
FLAT LENS
Amber
Blue
Green
Red
Yellow
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
LENS-11-AMB
LENS-11-BLU
LENS-11-GRN
LENS-11-RED
LENS-11-YEL
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2021
FLAT LENS
Frosted
Spread
Beam elongating
LENS-11-FR
LENS-11-SPR
LENS-11-BEL
GLARE CONTROL
Cross louver - platinum
Snoot - platinum
LENS-11P-CRL-PT
LENS-11-SNOOT-PT
1
