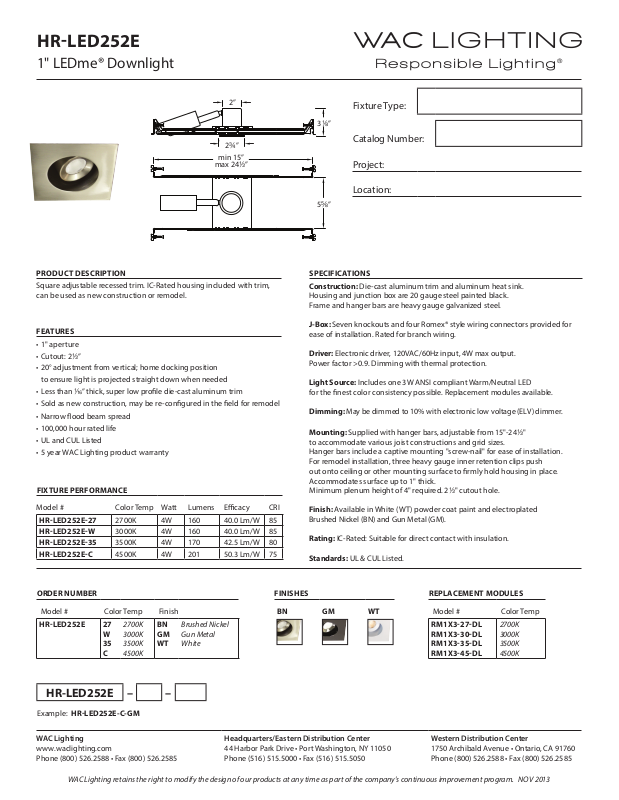

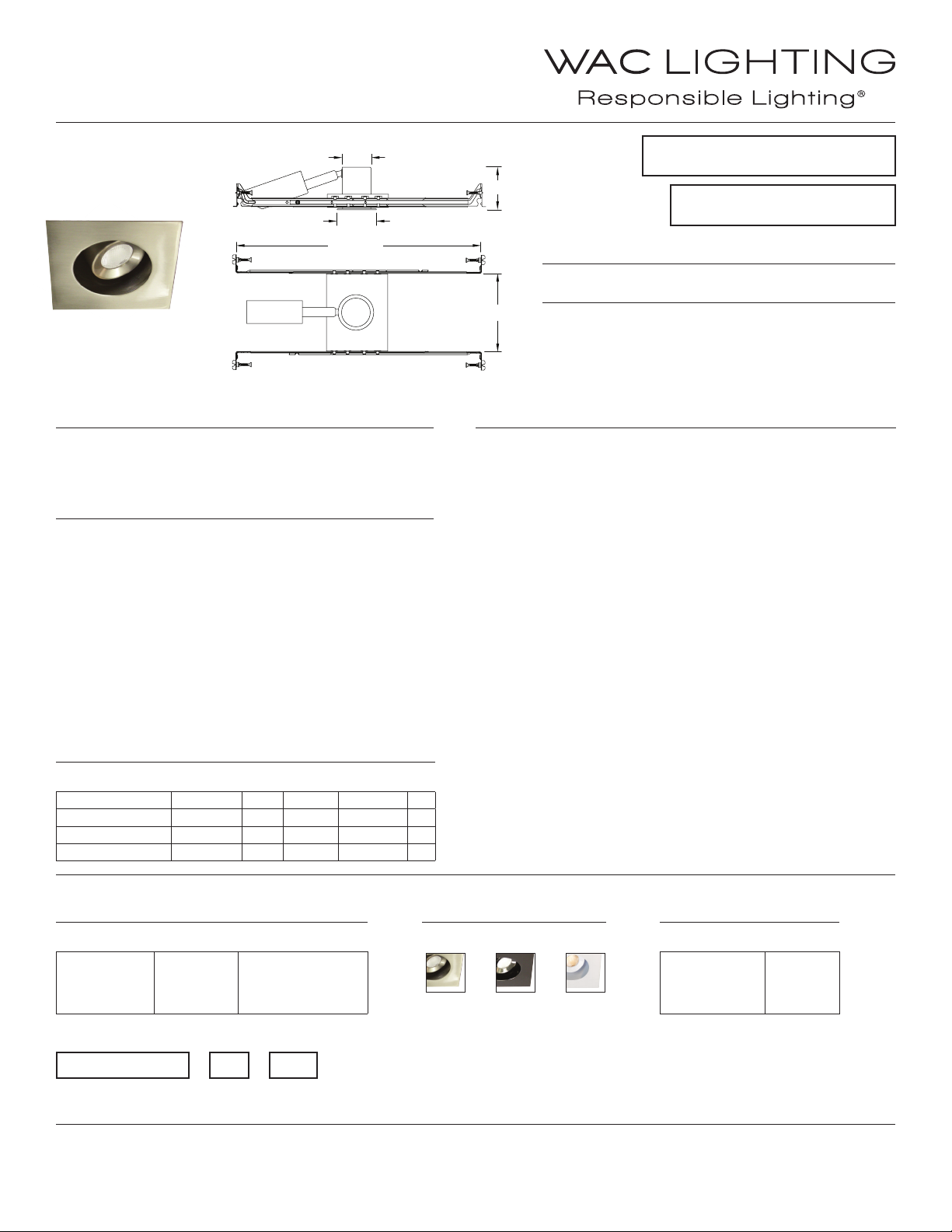

HRLED252E
1" LEDme® Downlight
2”
2w”
min 15”
max 242”
PRODUCT DESCRIPTION
Square adjustable recessed trim. IC-Rated housing included with trim,
can be used as new construction or remodel.
FEATURES
• 1" aperture
• Cutout: 22”
• 20° adjustment from vertical; home docking position
to ensure light is projected straight down when needed
• Less than z” thick, super low prole die-cast aluminum trim
• Sold as new construction, may be re-congured in the eld for remodel
• Narrow ood beam spread
• 100,000 hour rated life
• UL and CUL Listed
• 5 year WAC Lighting product warranty
FIXTURE PERFORMANCE
Fixture Type:
38”
Catalog Number:
Project:
Location:
5s”
SPECIFICATIONS
Construction: Die-cast aluminum trim and aluminum heat sink.
Housing and junction box are 20 gauge steel painted black.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for
ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 4W max output.
Power factor >0.9. Dimming with thermal protection.
Light Source: Includes one 3W ANSI compliant Warm/Neutral LED
for the nest color consistency possible. Replacement modules available.
Dimming:
Mounting: Supplied with hanger bars, adjustable from 15"-242"
to accommodate various joist constructions and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation.
For remodel installation, three heavy gauge inner retention clips push
out onto ceiling or other mounting surface to rmly hold housing in place.
Accommodates surface up to 1" thick.
Minimum plenum height of 4" required. 22" cutout hole.
May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Model # Color Temp Watt Lumens Ecacy CRI
HRLED252E27 2700K 4W 160 40.0 Lm/W 85
HRLED252EW 3000K 4W 160 40.0 Lm/W 85
HRLED252E35 3500K 4W 170 42.5 Lm/W 80
HRLED252EC 4500K 4W 201 50.3 Lm/W 75
ORDER NUMBER
Model # Color Temp Finish
HRLED252E 27
W
35
C
2700K
3000K
3500K
4500K
BN
GM
WT
Brushed Nickel
Gun Metal
White
HR-LED252E – –
Example: HRLED252E-C-GM
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOV 2013
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Finish: Available in White (WT) powder coat paint and electroplated
Brushed Nickel (BN) and Gun Metal (GM).
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.
FINISHES
BN GM WT
REPLACEMENT MODULES
Model # Color Temp
RM1X327DL
RM1X330DL
RM1X335DL
RM1X345DL
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
2700K
3000K
3500K
4500K
Page 2
HRLED252E

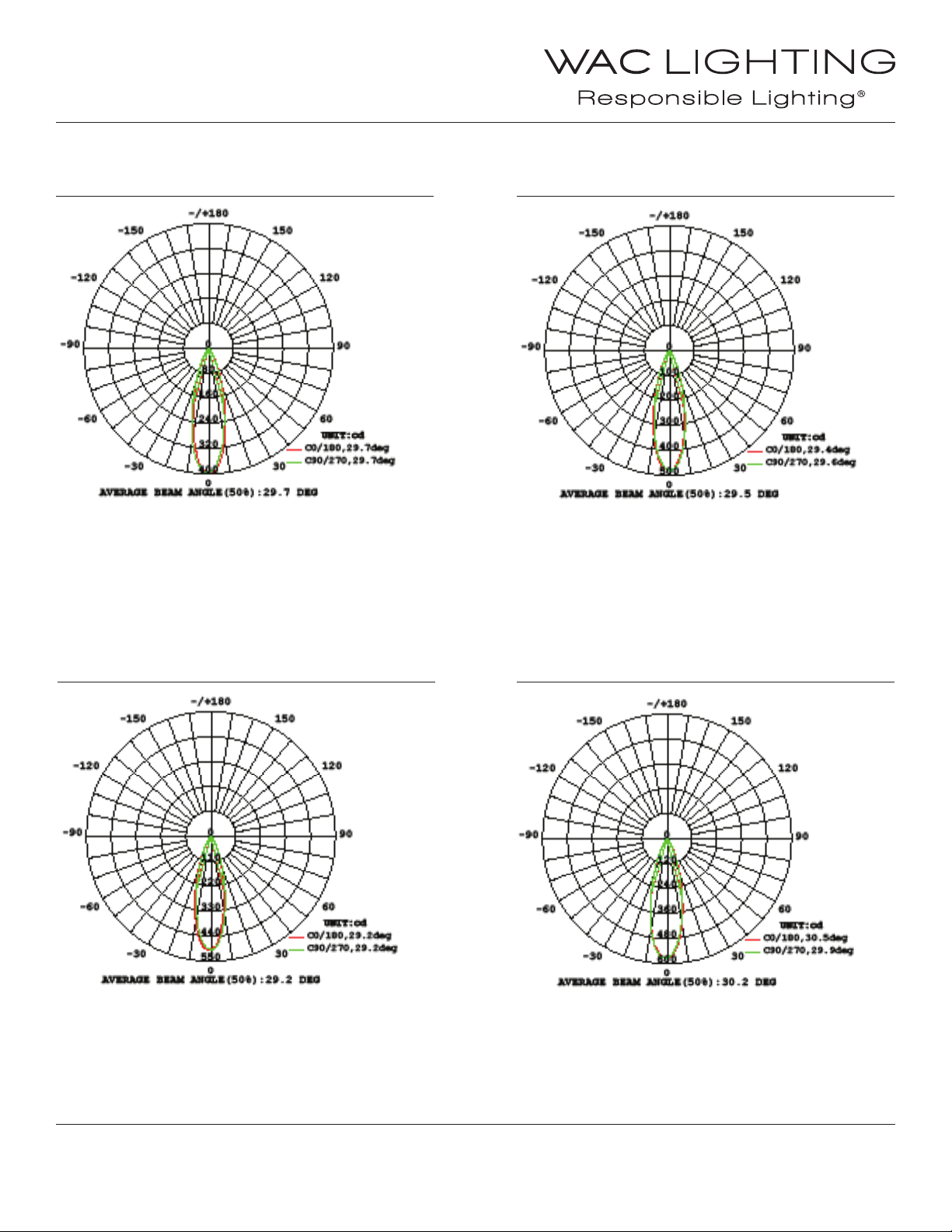

Photometrics
