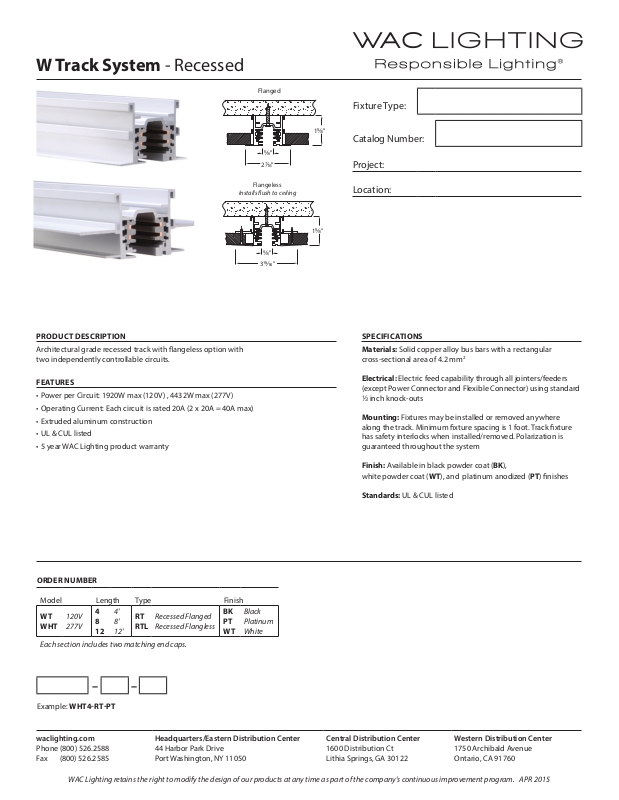

WAC Lighting WAC8509 Specifications

W Track System - Recessed

Flanged

Fixture Type:

Installs ush to ceiling

PRODUCT DESCRIPTION

Architectural grade recessed track with angeless option with
two independently controllable circuits.

FEATURES

• Power per Circuit: 1920W max (120V) , 4432W max (277V )

• Operating Current: Each circuit is rated 20A (2 x 20A = 40A max)

• Extruded aluminum construction

• UL & CUL listed

• 5 year WAC Lighting product warranty

s"

2v"

Flangeless

s"

3,"

1s"

1s"

Catalog Number:

Project:

Location:

SPECIFICATIONS

Materials: Solid copper alloy bus bars with a rectangular

cross-sectional area of 4.2 mm

Electrical: Electric feed capability through all jointers/feeders
(except Power Connector and Flexible Connector) using standard
2 inch knock-outs

Mounting: Fixtures may be installed or removed anywhere
along the track. Minimum xture spacing is 1 foot. Track xture
has safety interlocks when installed/removed. Polarization is
guaranteed throughout the system

2

ORDER NUMBER

Model Length Type Finish

4

WT

120V

WHT

277V

Each section includes two matching end caps.

8
12

4'
8'
12'

RT

Recessed Flanged

RTL

Recessed Flangless

BK
PT
WT

– –

Example: WHT4RTPT

waclighting.com

Phone [phone]
Fax [phone]

Headquarters/Eastern Distribution Center

44 Harbor Park Drive
Port Washington, NY 11050

Black
Platinum
White

Finish: Available in black powder coat (BK),
white powder coat (WT), and platinum anodized (PT) nishes

Standards: UL & CUL listed

Central Distribution Center

1600 Distribution Ct
Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue
Ontario, CA 91760

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2015

W Track System - Recessed

Accessories Flanged Flangeless Model Voltage Flanged/Flangeless Finish Description

Live End Connector
– Left polarity

Live End Connector
– Right polarity

"I" Connector

"I" Power Connector

"L" Connector – Left

"L" Connector – Right

WEDL
WHEDL

WEDR
WHEDR

WPC
WHPC

WIC
WHIC

WLLC
WHLLC

WRLC
WHRIC

120V
277V

120V
277V

120V
277V

120V
277V

120V
277V

120V
277V

RT
RTL

Flanged
Flangeless

BK
PTWTUse for direct wiring through ceiling.

RT UniversalBKPT

WT

RT
RTL

RT
RTL

Flanged
Flangeless

Flanged
Flangeless

BK
PTWTPower entry point at the connection of two tracks.

BK
PT
WT

Use to join two sections of track with electrical
continuity.

Use to join 2 track sections to make power
feedable 90° left polarity turns.

Use to join 2 track sections to make a power
feedable 90° right polarity turns.

"T" Connector – Left

"T" Connector – Right

"X" Connector

WLTC
WHLTC

WRTC
WHRTC

WXC
WHXC

Track Cover W8COVWT

120V
277V

120V
277V

120V
277V

RT
RTL

RT
RTL

Flanged
Flangeless

Flanged
Flangeless

Use to join 3 track sections. Power feedable.
Polarity on outside edge.

BK
PT
WT

Use to join 3 track sections. Power feedable.
Polarity on inside edge.

BK
PTWTUse to join 4 track sections. Power feedable.

8 foot W track cover
Can be  eld-cut and painted

Track Current Limiter Model Volt Flanged/Flangeless Rating Finish Description

1A

Live end - Left

Live end - Right

WEDL
WHEDL

WEDR
WHEDR

120V
277V

120V
277V

RT
RTL

Flanged
Flangeless

2A
5A
7A
10A
12A

1 Amp

2.5Amp
5 Amp

7.5Amp
10Amp
12Amp

BK

Easy to install and assures compliance
to California Title 24 or ASHRAE 90.1

PT

requirements

WT

waclighting.com

Phone [phone]
Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2015

Headquarters/Eastern Distribution Center

44 Harbor Park Drive
Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct
Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue
Ontario, CA 91760

Straight Conguration

A WEDR Live end connector (right)

B WIC I power connector

C WPC I connector

D WEC End cap

Flexible Congurations

A WEDR Live end connector (right)

B WEDL Live end connector (left)

C WFC Flexible connector

D WEC End cap

A

C

A

Grid Conguration

A WLLC L Connector Left

B W LTC T Connector Left

C WRTC T Connector Right

D WXC X Connector

= Indicates Electrical Continuity

D

B

C

C

B

D

Horizontal Ceiling Mount

A

C

D

A

A

B

Vertical Wall-to-Ceiling Mount

B

C

D

A

Cable Suspension Mount

A WMFP Flexible Stem kit with power feed

B WMED Live end suspension mount

C WEDL Live end connector (left)

D WMST-X Cable suspension kit

E WMT Suspension hanger clip

F WMST-TB T bar cable suspension kit

G WMST-XS Sloped ceiling cable kit

H WMLC L connector suspension mount

I WLLC L connector left

J WEC End cap

F

E

G

H

I

Stem Suspension Mount

Use one support for every 4 feet

A

D

B

C

A

B

C

A WMSP Stem kit with power feed

B WMED Live end suspension mount

C WEDR Live end connector (right)

D WMT-XS Sloped ceiling stem kit

E WMT Suspension hanger clip

F WMT-TB T bar stem kit

G W MT-X Stem kit

H WMLC L connector suspension mount

I WLLC L connector left

J WEC End cap

D

F

E

G

H

I

J

J
