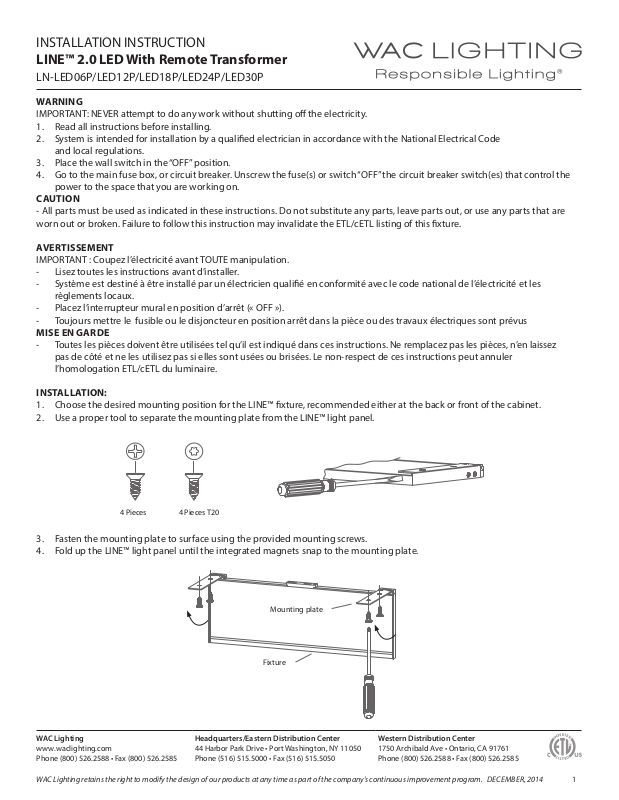

INSTALLATION INSTRUCTION
LINE™ 2.0 LED With Remote Transformer
LN-LED06P/LED12P/LED18P/LED24P/LED30P
WARNING
IMPORTANT: NEVER attempt to do any work without shutting o the electricity.
1. Read all instructions before installing.
2. System is intended for installation by a qualied electrician in accordance with the National Electrical Code
and local regulations.
3. Place the wall switch in the “OFF” position.
4. Go to the main fuse box, or circuit breaker. Unscrew the fuse(s) or switch “OFF” the circuit breaker switch(es) that control the
power to the space that you are working on.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction may invalidate the ETL/cETL listing of this xture.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
- Toujours mettre le fusible ou le disjoncteur en position arrêt dans la pièce ou des travaux électriques sont prévus
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez
pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/cETL du luminaire.
INSTALLATION:

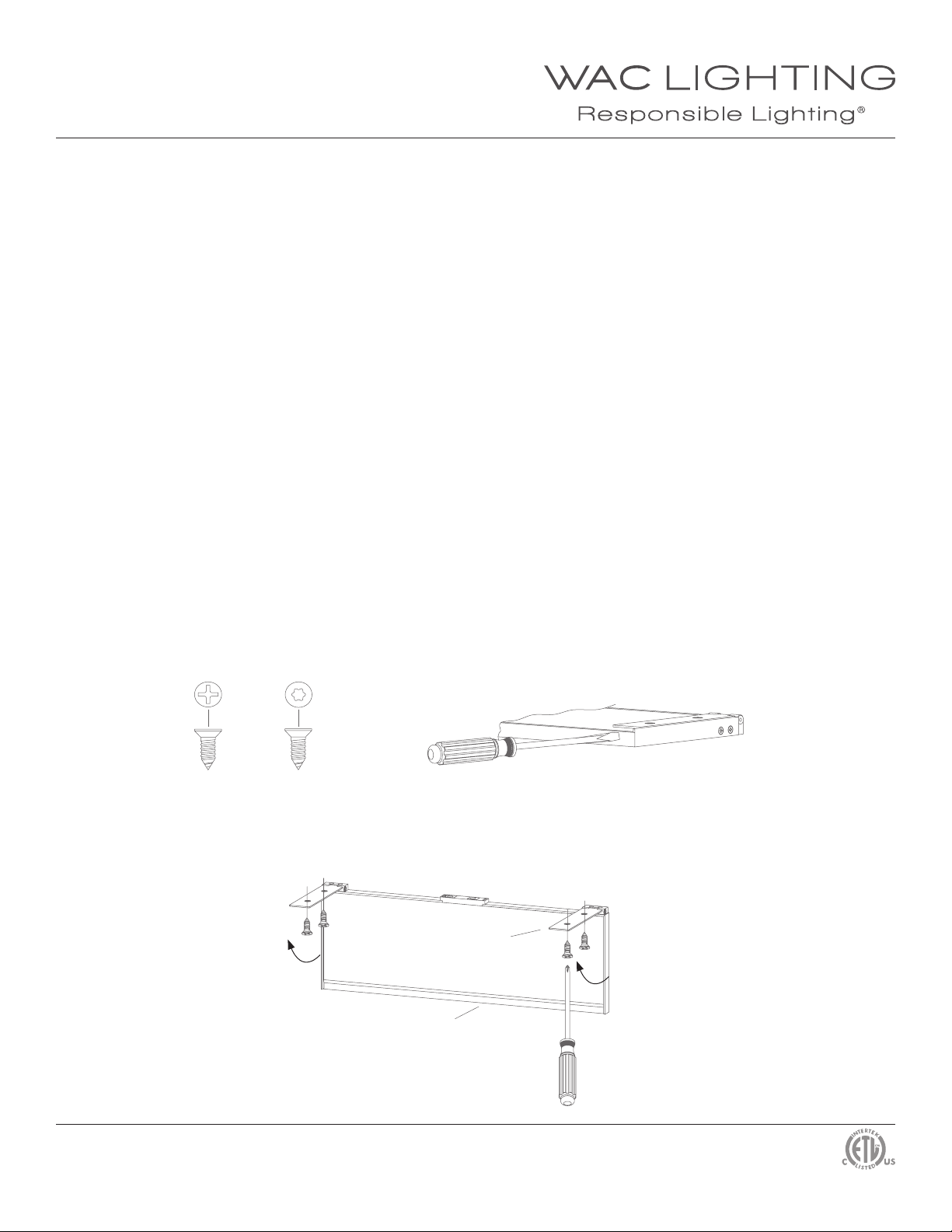

1. Choose the desired mounting position for the LINE™ xture, recommended either at the back or front of the cabinet.
2. Use a proper tool to separate the mounting plate from the LINE™ light panel.
4 Pieces 4 Pieces T20
3. Fasten the mounting plate to surface using the provided mounting screws.
4. Fold up the LINE™ light panel until the integrated magnets snap to the mounting plate.
Mounting plate
Fixture
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. DECEMBER, 2014 1
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
INSTALLATION INSTRUCTION
LINE™ 2.0 LED With Remote Transformer
LN-LED06P/LED12P/LED18P/LED24P/LED30P

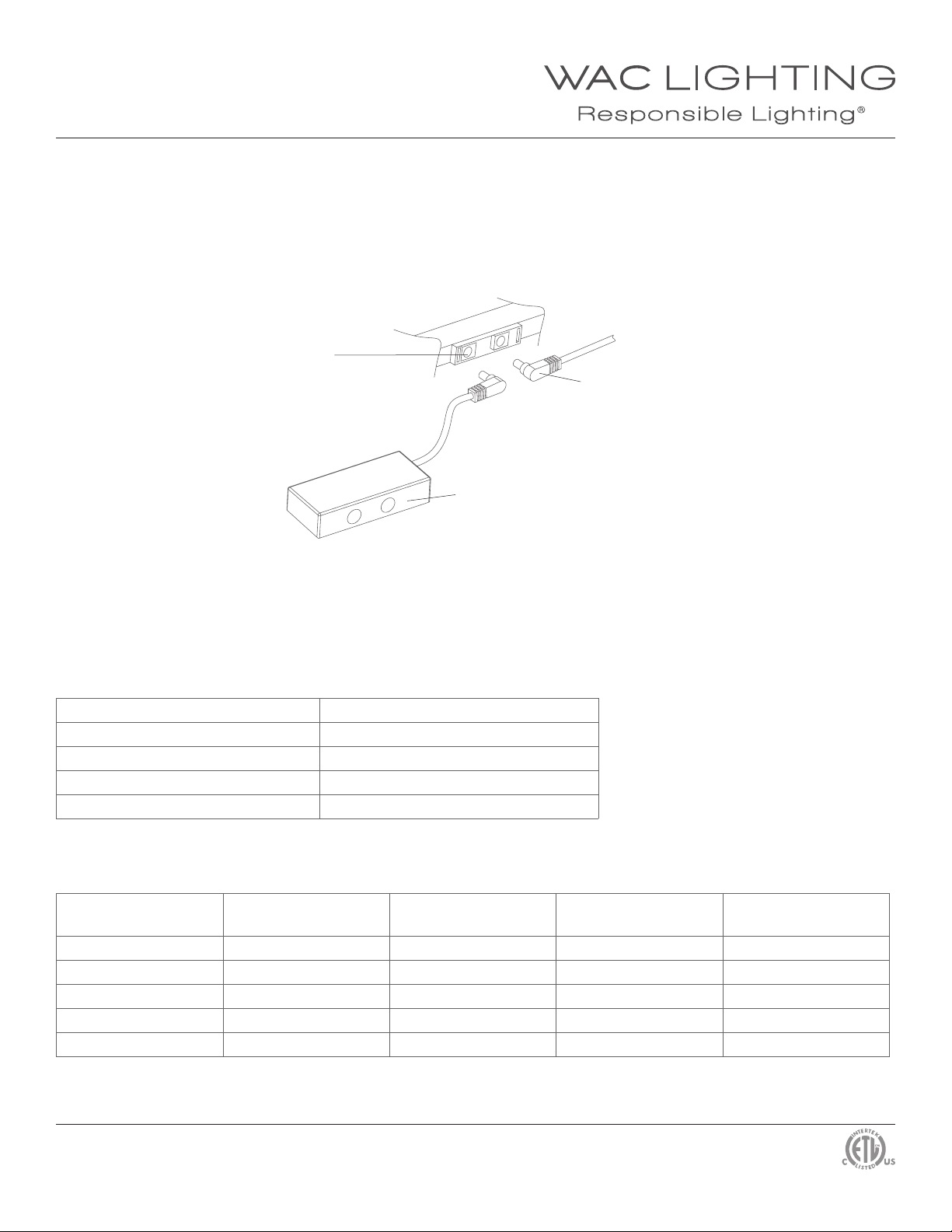

WIRING:
Connecting a Single Fixture:
Insert the plug at the end of transformer cord into either socket on the LINE™ xture.
Interconnecting Fixtures with Jumper Wires:
Insert the end plug of the jumper wires into each LINE™ xture socket. See accessories below for dierent lengths and
congurations of jumper wires.
Socket
Plug
Remote Transformer
TRANSFORMERS/ACCESSORIES:
NOTE: All transformers and accessories are sold separately.
TRANSFORMERS:
Use to power the LINE™ xtures. Below is a list of compatible transformer models and descriptions
Model Number Description
EN-2460-P-AR-S 60W plug-in transformer, 120V AC
EN-24100-P-AR-S 96W plug-in transformer, 120V AC
EN-2460-RB2-S 60W remote transformer, 120V AC
EN-24100-RB2-S 96W remote transformer, 120V AC
The maximum number of LINE™ xtures that can be interconnected together is shown on the chart below.
Model Number EN-2460-P-AR-S
(60W)
EN-24100-P-AR-S
(96W)
EN-2460-RB2-S
(60W)
EN-24100-RB2-S
(96W)
LN-LED06P 6 11 6 11
LN-LED12P 3 6 3 6
LN-LED18P 2 4 2 4
LN-LED24P 2 3 2 3
LN-LED30P 1 2 1 2
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. DECEMBER, 2014 2
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Page 3
INSTALLATION INSTRUCTION
LINE™ 2.0 LED With Remote Transformer
LN-LED06P/LED12P/LED18P/LED24P/LED30P
JUMPER WIRES:
Use to link multiple LINE™ xtures through surface wiring. They are available in following length and congurations:
Model Number Description
SL-IC-06 6 inch jumper wire
SL-IC-12 12 inch jumper wire
SL-IC-24 24 inch jumper wire
SL-IC-36 36 inch jumper wire
SL-EXT-144 12 ft. jumper wire
SL-Y Y connector
SL-X X connector
SL-IF Female jumper wire connector
TERMINAL BLOCKS:
Use to connect up to 8 LINE™ xtures independently.
Model Number Description
MTB-08 Connects up to 8 xtures
WIRING BOX WITH SWITCH:
Use when spanning a large gap in a system layout without leaving exposed wiring.
Model Number Description
TB-S 12V/24V 4A, 12AWG to 20AWG
