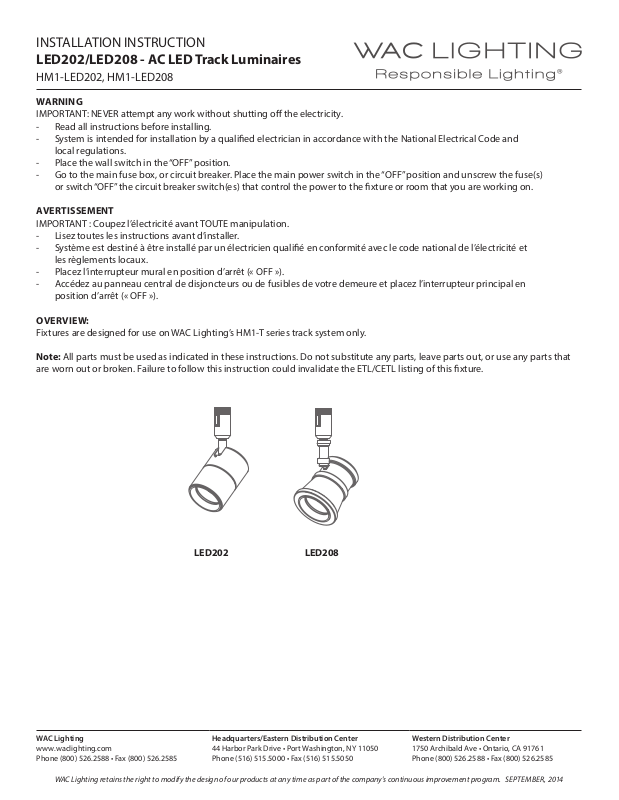

WAC Lighting WAC8444 Installation & Assembly

INSTALLATION INSTRUCTION

LED202/LED208 - AC LED Track Luminaires

HM1-LED202, HM1-LED208

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and
local regulations.

- Place the wall switch in the “OFF” position.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s)
or switch “OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.

AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et
les règlements locaux.

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).

OVERVIEW:

Fixtures are designed for use on WAC Lighting’s HM1-T series track system only.

Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that
are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.

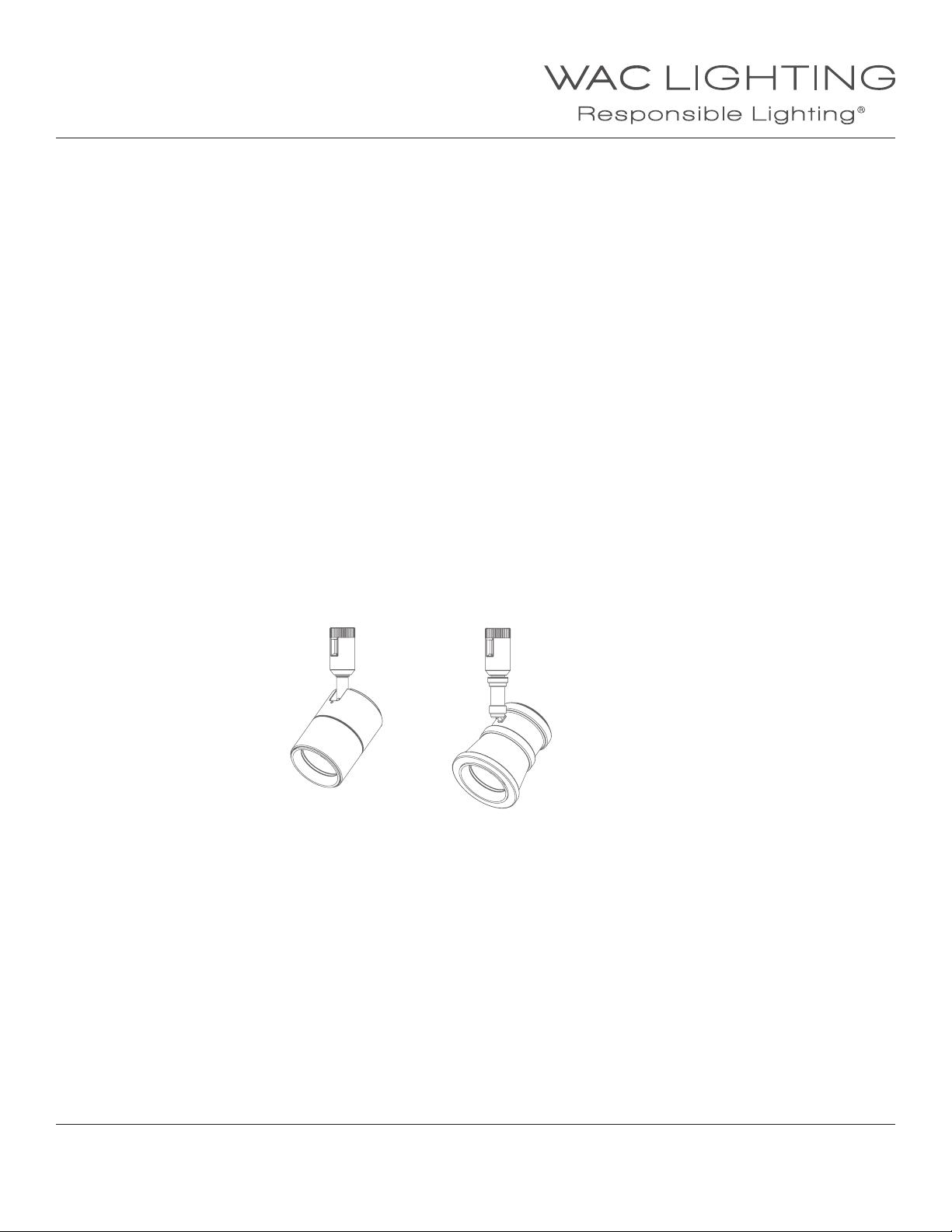

LED208LED202

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

INSTALLATION INSTRUCTION

LED202/LED208 - AC LED Track Luminaires

HM1-LED202, HM1-LED208

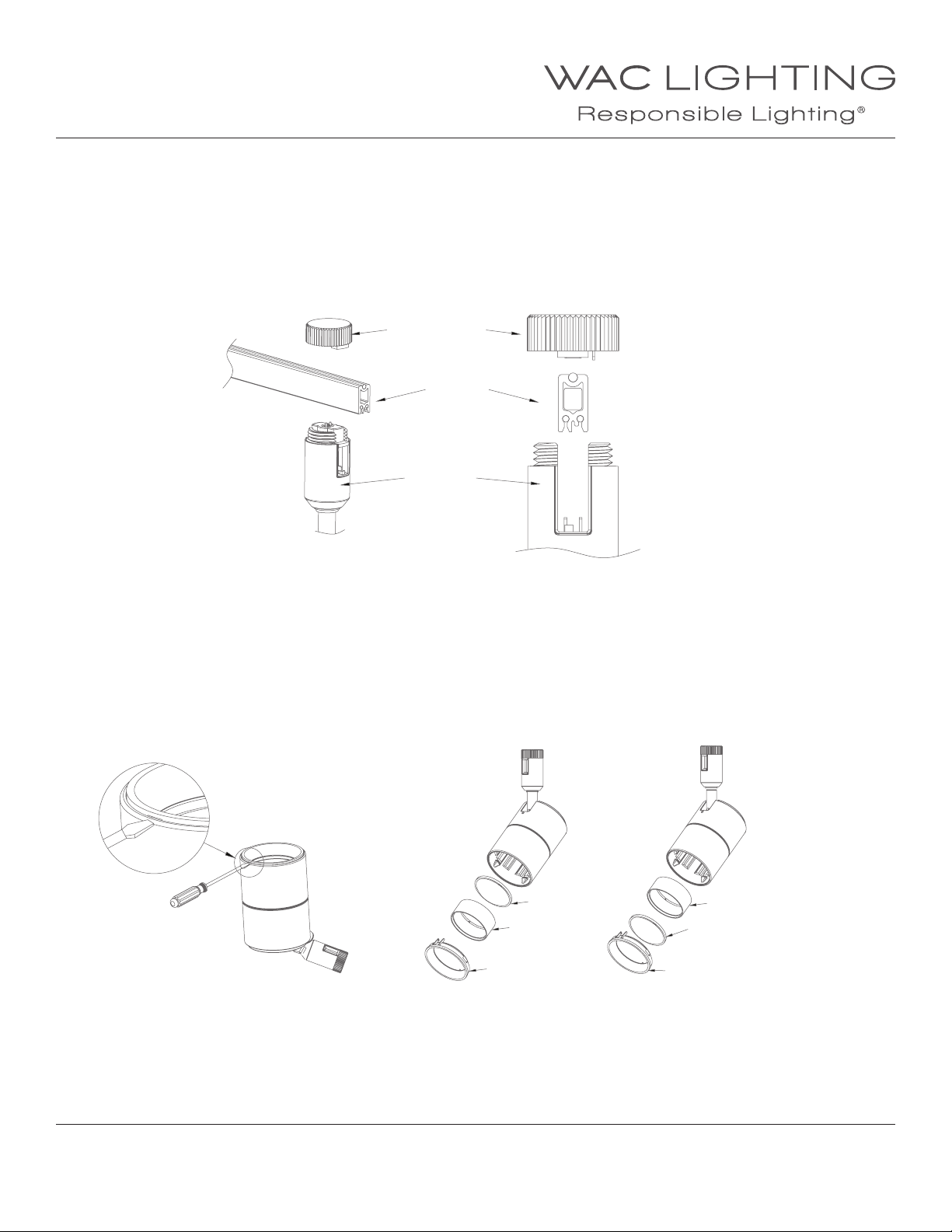

FIXTURE INSTALLATION:

1. Unscrew the cap ring from the rail adapter.

2. Align contact points of the adapter to the rail.

3. Insert the open end of the rail adapter into the rail and make sure that the contact points sit into the grooves of the rail.

4. Place the cap ring back onto the rail adapter and screw tight.

5. After the rail adapter is installed, rotate the luminaire body horizontally or vertically to aim properly.

Cap Ring

Rail

Rail Adapter

BEAM ANGLE SELECT:

The xture has two beam angles to be selected: ood and spot.

1. Remove the front bae with a proper tool.

2. In order to get the ood beam angle; place the lens and spacer into the xture consecutively.

3. In order to get the spot beam angle; place the spacer and lens into the xture consecutively.

4. Snap the front bae back into the xture.

Lens

Washer Lens

Front Bae Front Bae

Flood Light Spot Light

Washer

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

INSTALLATION INSTRUCTION

LED202/LED208 - AC LED Track Luminaires

HM1-LED202, HM1-LED208

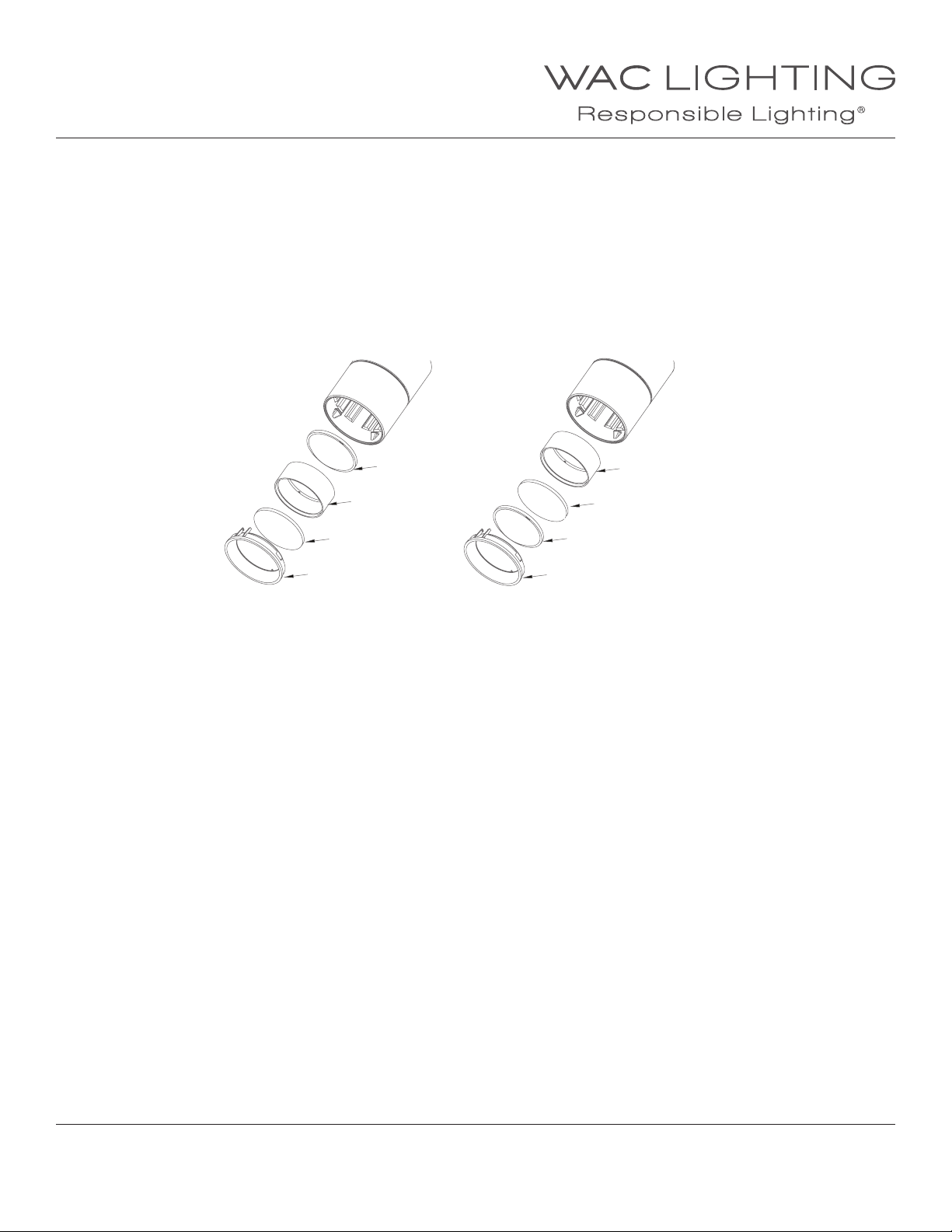

ACCESSORIES (Order separately):
The xtures can accommodate colored glasses as accessories. The colored glasses can be installed in two ways depending on
the desired beam angle.

1. Remove the front bae with a proper tool.

2. In order to get the ood beam angle in color; place the lens, spacer and colored glass into the xture consecutively.

3. In order to get the spot beam angle in color; place the spacer, colored glass and lens into the xture consecutively.

4. Snap the front bae back into the xture.

Lens

Spacer

Colored Lens

Front Bae Front Bae

Flood Light

Spacer

Colored Lens

Lens

Spot Light
