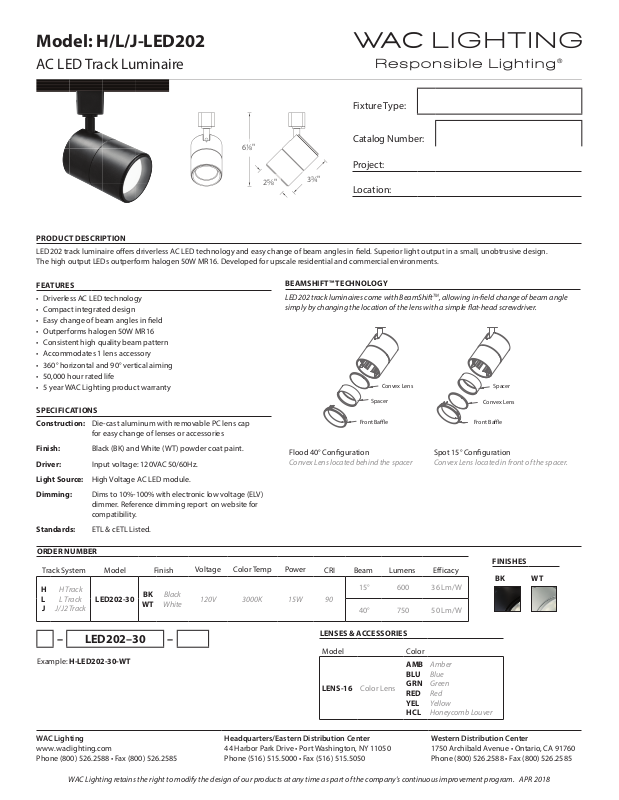

Model: H/L/J-LED202
6
82s
3
w
AC LED Track Luminaire
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
LED202 track luminaire o ers driverless AC LED technology and easy change of beam angles in eld. Superior light output in a small, unobtrusive design.
The high output LEDs outperform halogen 50W MR16. Developed for upscale residential and commercial environments.
FEATURES
• Driverless AC LED technology
• Compact integrated design
• Easy change of beam angles in eld
• Outperforms halogen 50W MR16
• Consistent high quality beam pattern
• Accommodates 1 lens accessory
• 360° horizontal and 90° vertical aiming
• 50,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum with removable PC lens cap
Finish: Black (BK) and White (WT ) powder coat paint.
Driver: Input voltage: 120VAC 50/60Hz.
Light Source: High Voltage AC LED module.
Dimming:
Standards: ETL & cETL Listed.
ORDER NUMBER
Track System Model Finish
H
H Track
L
L Track
J
J/J2 Track
for easy change of lenses or accessories
Dims to 10%-100% with electronic low voltage (ELV)
dimmer. Reference dimming report on website for
compatibility.
Voltage Color Temp Power
LED202-30
BKWTBlack
White
120V 3000K 15W 90
BEAMSHIFT™ TECHNOLOGY
LED202 track luminaires come with BeamShiftTM, allowing in- eld change of beam angle
simply by changing the location of the lens with a simple at-head screwdriver.
Convex Lens
Spacer
Front Ba e Front Ba e
Flood 40° Con guration
Convex Lens located behind the spacer
CRI Beam Lumens Efficacy
15° 600 36 Lm/W
40° 750 50 Lm/W
Spot 15° Con guration
Convex Lens located in front of the spacer.
Spacer
Convex Lens
FINISHES
BK WT
– LED202–30 –
Example: H-LED202-30-WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
LENSES & ACCESSORIES
Model Color
AMB
BLU
LENS-16 Color Lens
GRN
RED
YEL
HCL
Amber
Blue
Green
Red
Yellow
Honeycomb Louver
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
