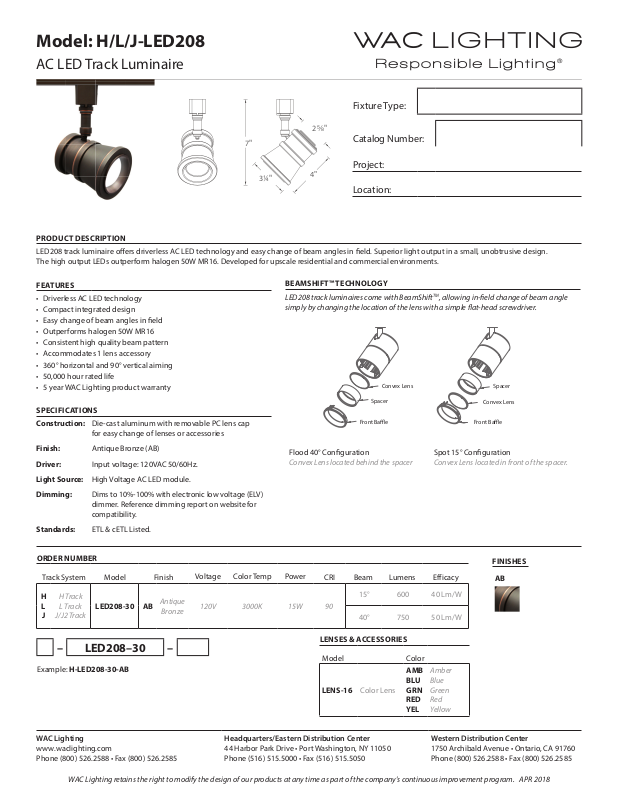

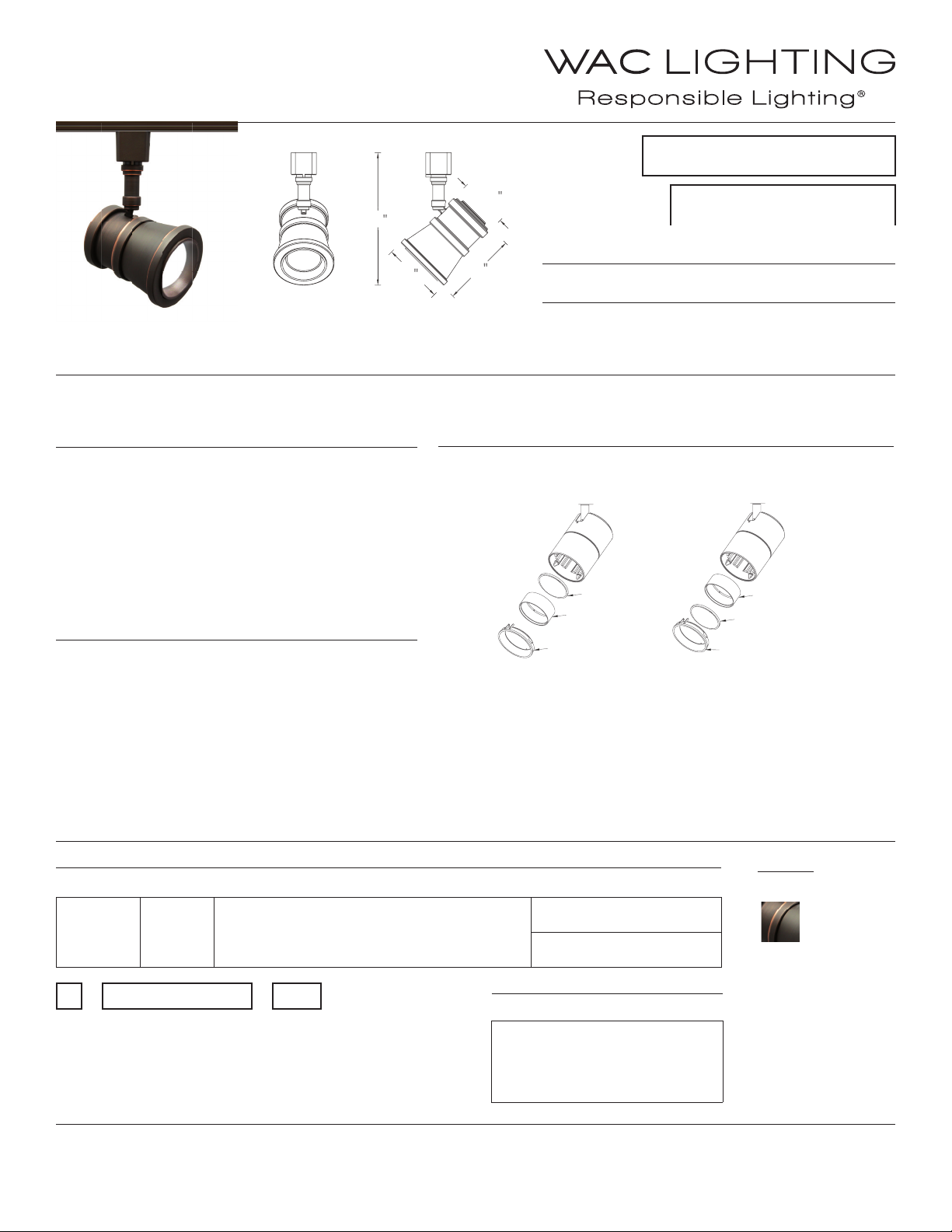

Page 1

Model: H/L/J-LED208

AC LED Track Luminaire

Fixture Type:

Catalog Number:

Project:

Location:

PRODUCT DESCRIPTION

LED208 track luminaire o ers driverless AC LED technology and easy change of beam angles in  eld. Superior light output in a small, unobtrusive design. The high output LEDs outperform halogen 50W MR16. Developed for upscale residential and commercial environments.

FEATURES

• Driverless AC LED technology

• Compact integrated design

• Easy change of beam angles in  eld

• Outperforms halogen 50W MR16

• Consistent high quality beam pattern

• Accommodates 1 lens accessory

• 360° horizontal and 90° vertical aiming

• 50,000 hour rated life

• 5 year WAC Lighting product warranty

SPECIFICATIONS

Construction: Die-cast aluminum with removable PC lens cap

Finish: Antique Bronze (AB)

Driver: Input voltage: 120VAC 50/60Hz.

Light Source: High Voltage AC LED module.

Dimming:

Standards: ETL & cETL Listed.

ORDER NUMBER

Track System Model Finish

H Track

L Track

J/J2 Track

for easy change of lenses or accessories

Dims to 10%-100% with electronic low voltage (ELV) dimmer. Reference dimming report on website for compatibility.

Voltage Color Temp Power

LED208-30 AB

Antique

Bronze

120V 3000K 15W 90

BEAMSHIFT™ TECHNOLOGY

LED208 track luminaires come with BeamShiftTM, allowing in- eld change of beam angle simply by changing the location of the lens with a simple  at-head screwdriver.

Convex Lens

Spacer

Front Ba e Front Ba e

Flood 40° Con guration

Convex Lens located behind the spacer

CRI Beam Lumens Efficacy

15° 600 40 Lm/W

40° 750 50 Lm/W

Spot 15° Con guration

Convex Lens located in front of the spacer.

Spacer

Convex Lens

FINISHES

– LED208–30 –

LENSES & ACCESSORIES

Model Color

Example: H-LED208-30-AB

LENS-16 Color Lens

WAC Lighting

www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2018

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050

AMB

Amber

BLU

Blue

GRN

Green

RED

Red

YEL

Yellow

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760 Phone (800) 526.2588 • Fax (800) 526.2585

Page 2

Model: H/L/J-LED208

AC LED Track Luminaire

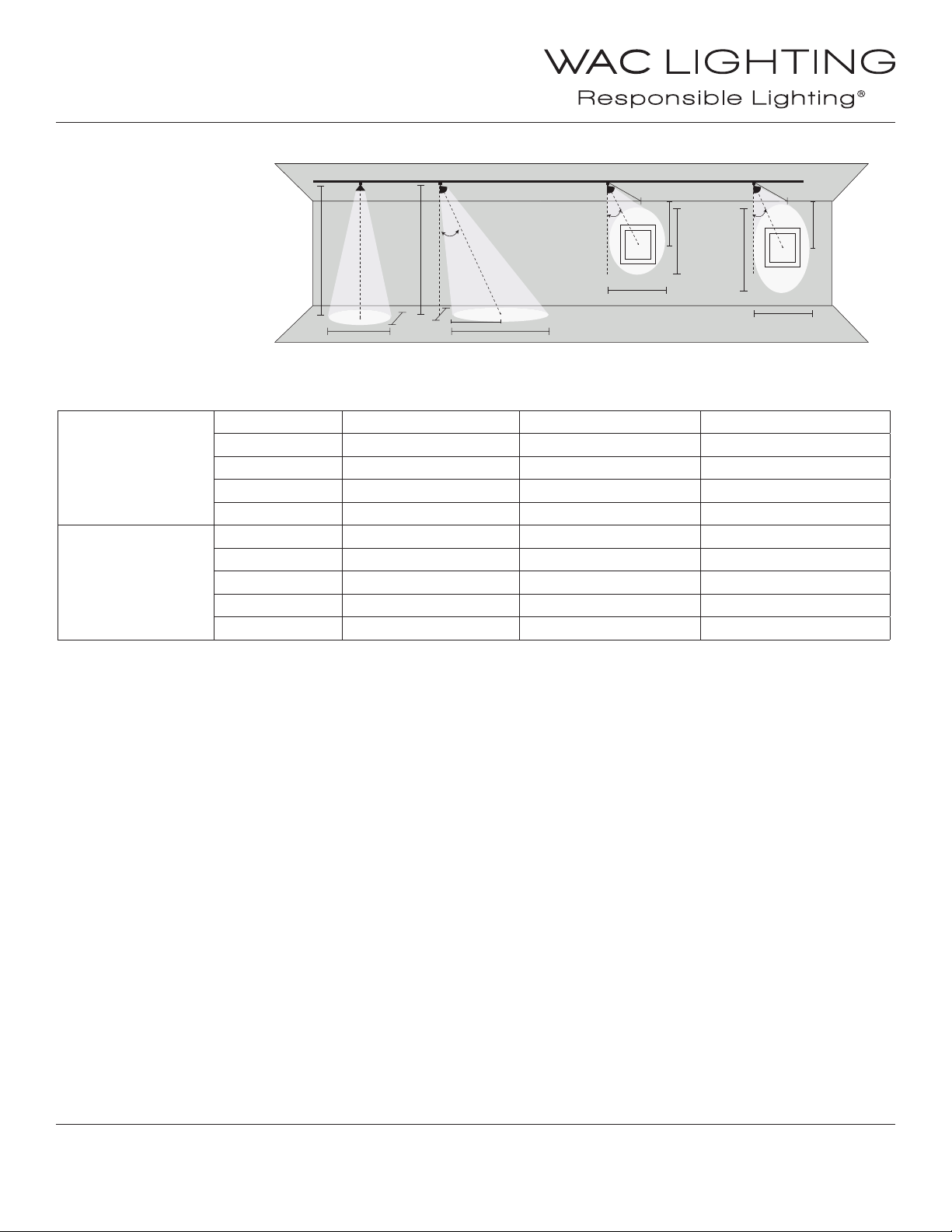

Application Performance

Beam represents the angle at which light intensity is 50% of CBCP and is measured by L and W. Footcandle (FC) levels are observed at the beam's center and depend on mounting distance (D) and aiming angle (A).

D C FC L W A CBCP

Distance (ft) Distance to Beam Center (ft) Footcandles Beam Length (ft) Beam Width (ft) Aiming Angle Center Beam Candle Power

Model Beam CBCP

Horizontal A = 0° Horizontal A = 30° Vertical A = 30° Vertical A = 45°

D FC L W D FC L W C D FC L W C D FC L W C

6' 98 1.6' 1.6' 6' 64 1.8' 2.1' 3.5' 2' 110 2.2' 1.1' 3.5' 2' 312 1.1' 0.7' 2'

7' 72 1.8' 1.8' 7' 47 2.1' 2.5' 4' 2.5' 71 2.8' 1.3' 4.3' 2.5' 199 1.3' 0.9' 2.5'

LED208-30 15° 3525

8' 55 2.1' 2.1' 8' 36 2.4' 2.8' 4.6' 3' 49 3.3' 1.6' 5.2' 3' 138 1.6' 1.1' 3'

9' 44 2.4' 2.4' 9' 28 2.7' 3.2' 5.2' 3.5' 36 3.9' 1.8' 6.1' 3.5' 102 1.9' 1.3' 3.5'

10' 35 2.6' 2.6' 10' 23 3' 3.5' 5.8' 4' 28 4.4' 2.1' 6.9' 4' 78 2.1' 1.5' 4'

6' 45 4.4' 4.4' 6' 29 5' 6.1' 3.5' 2' 51 9.7' 2.9' 3.5' 2' 143 3.4' 2.1' 2'

7' 33 5.1' 5.1' 7' 21 5.9' 7.1' 4' 2.5' 32 12.1' 3.6' 4.3' 2.5' 92 4.2' 2.6' 2.5'

LED208-30 40° 1620

' 25 5.8' 5.8' 8' 16 6.7' 8.1' 4.6' 3' 23 14.5' 4.4' 5.2' 3' 64 5' 3.1' 3'

9' 20 6.6' 6.6' 9' 13 7.6' 9.1' 5.2' 3.5' 17 16.9' 5.1' 6.1' 3.5' 47 5.9' 3.6' 3.5'

10' 16 7.3' 7.3' 10' 11 8.4' 10.2' 5.8' 4' 13 19.3' 5.8' 6.9' 4' 36 6.7' 4.1' 4'

Horizontal Aiming Vertical Aiming
