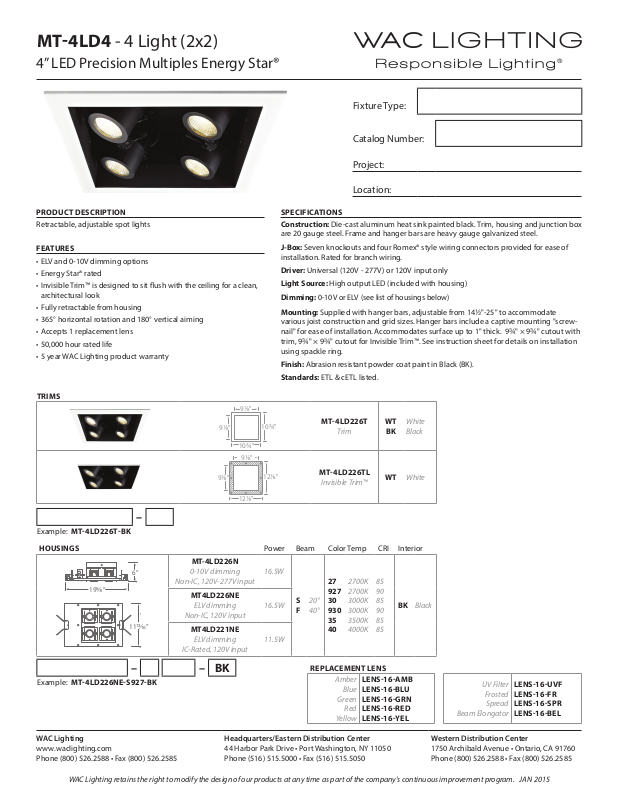

Page 1
MT4LD4 - 4 Light (2x2)
6”
19s”
11m”
4” LED Precision Multiples Energy Star®
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Retractable, adjustable spot lights
FEATURES
• ELV and 0-10V dimming options
• Energy Star® rated
• Invisible Trim™ is designed to sit ush with the ceiling for a clean,
architectural look
• Fully retractable from housing
• 365° horizontal rotation and 180° vertical aiming
• Accepts 1 replacement lens
• 50,000 hour rated life
• 5 year WAC Lighting product warranty
TRIMS
98"
98"
10w"
98"
98"
128"
SPECIFICATIONS
Construction: Die-cast aluminum heat sink painted black. Trim, housing and junction box
are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of
installation. Rated for branch wiring.
Driver: Universal (120V - 277V) or 120V input only
Light Source: High output LED (included with housing)
Dimming:
Mounting: Supplied with hanger bars, adjustable from 142"-25" to accommodate
various joist construction and grid sizes. Hanger bars include a captive mounting "screwnail" for ease of installation. Accommodates surface up to 1" thick. 9w" × 9w" cutout with
trim, 9w" × 9w" cutout for Invisible Trim™. See instruction sheet for details on installation
using spackle ring.
Finish: Abrasion resistant powder coat paint in Black (BK).
Standards: ETL & cETL listed.
10w"
128"
0-10V or ELV (see list of housings below)
MT4LD226T
Trim
MT4LD226TL
Invisible Trim™
WTBKWhite
Black
WT White
–
Example: MT4LD226TBK
HOUSINGS Power Beam Color Temp CRI Interior
MT-4LD226N
– – BK
Example: MT4LD226NES927BK
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2015
0-10V dimming
Non-IC, 120V-277V input
MT4LD226NE
ELV dimming
Non-IC, 120V input
MT4LD221NE
ELV dimming
IC-Rated, 120V input
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
16.5W
16.5W
11.5W
27
2700K
927
SF20°
40°
REPLACEMENT LENS
30
930
35
40
Amber
Yellow
2700K
3000K
3000K
3500K
4000K
Blue
Green
Red
85
90
85
90
85
85
LENS16AMB
LENS16BLU
LENS16GRN
LENS16RED
LENS16YEL
BK Black
UV Filter
Beam Elongator
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
Frosted
Spread
LENS16UVF
LENS16FR
LENS16SPR
LENS16BEL
Page 2
MT4LD4 - 4 Light (2x2)
4” LED Precision Multiples Energy Star®
LUMINAIRE PERFORMANCE Power Beam Photometry Color Temp CRI Lumen CBCP
27
2700K
85
MT-4LD226N
0-10V dimming
Non-IC, 120V-277V input
MT4LD226NE
ELV dimming
Non-IC, 120V input
16.5W
16.5W
S 20°
F 40°
S 20°
F 40°
927
30
930
35
40
27
927
30
930
35
40
27
927
30
930
35
40
27
927
30
930
35
40
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
3680
90
3160
85
3840
90
3260
85
3900
85
4400
85
3620
90
3140
85
3760
90
3200
85
3840
85
4320
85
3740
90
3040
85
3888
90
3560
85
4020
85
3940
85
3840
90
3000
85
3920
90
3600
85
3960
85
3940
4490 x 4
3605 x 4
4790 x 4
3910 x 4
4720 x 4
5370 x 4
2015 x 4
1615 x 4
2090 x 4
1705 x 4
2110 x 4
2390 x 4
4506 x4
3545 x4
4630 x4
4170 x4
4700 x4
4700 x4
1955 x4
1605 x4
2110 x4
1890 x4
2095 x4
2115 x4
MT4LD22ww1NE
ELV dimming
IC-Rated, 120V input
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
11.5W
S 20°
F 40°
27
2700K
85
927
2700K
30
3000K
930
3000K
35
3500K
40
4000K
27
2700K
927
2700K
30
3000K
930
3000K
35
3500K
40
4000K
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
3060
90
2480
85
2740
90
2540
85
3200
85
3560
85
3060
90
2440
85
3060
90
2500
85
3140
85
3540
3315 x4
2685 x4
3575 x4
2795 x4
3550 x4
3925 x4
1670 x4
1270 x4
1590 x4
1295 x4
1640 x4
1820 x4
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2015
