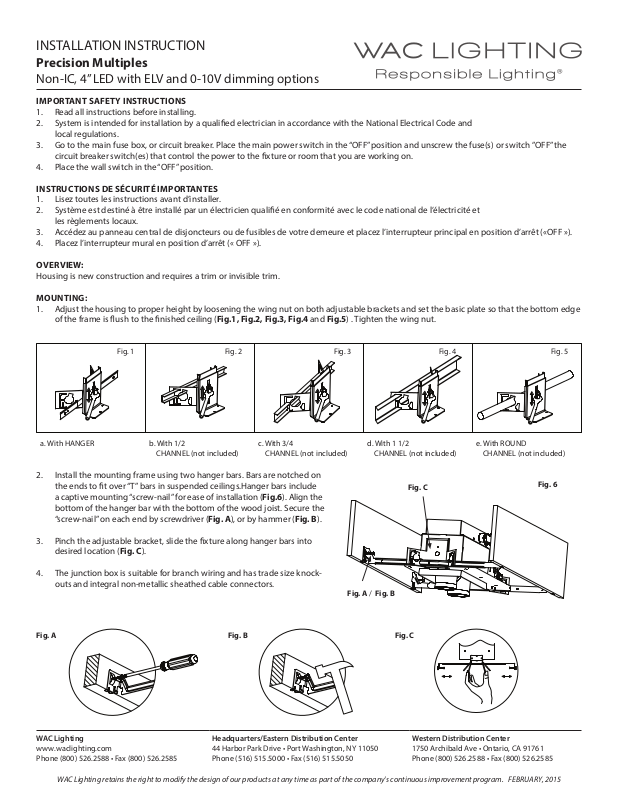

INSTALLATION INSTRUCTION
Precision Multiples
Non-IC, 4” LED with ELV and 0-10V dimming options
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions before installing.
2. System is intended for installation by a qualied electrician in accordance with the National Electrical Code and
local regulations.
3. Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the
circuit breaker switch(es) that control the power to the xture or room that you are working on.
4. Place the wall switch in the “OFF” position.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
1. Lisez toutes les instructions avant d’installer.
2. Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et
les règlements locaux.
3. Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt («OFF »).
4. Placez l’interrupteur mural en position d’arrêt (« OFF »).
OVERVIEW:
Housing is new construction and requires a trim or invisible trim.
MOUNTING:
1. Adjust the housing to proper height by loosening the wing nut on both adjustable brackets and set the basic plate so that the bottom edge
of the frame is ush to the nished ceiling (Fig.1, Fig.2, Fig.3, Fig.4 and Fig.5) . Tighten the wing nut.
Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5
a. With HANGER b. With 1/2
CHANNEL (not included)
c. With 3/4
CHANNEL (not included)
d. With 1 1/2
CHANNEL (not included)
2. Install the mounting frame using two hanger bars. Bars are notched on
the ends to t over “T” bars in suspended ceilings.Hanger bars include
a captive mounting “screw-nail” for ease of installation (Fig.6). Align the
bottom of the hanger bar with the bottom of the wood joist. Secure the
“screw-nail” on each end by screwdriver (Fig. A), or by hammer (Fig. B).
3. Pinch the adjustable bracket, slide the xture along hanger bars into
desired location (Fig. C).
4. The junction box is suitable for branch wiring and has trade size knockouts and integral non-metallic sheathed cable connectors.
Fig. A / Fig. B
Fig. A Fig. B Fig. C
Fig. C
e. With ROUND
CHANNEL (not included)
Fig. 6
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEBRUARY, 2015
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585

INSTALLATION INSTRUCTION
Precision Multiples
Non-IC, 4” LED with ELV and 0-10V dimming options
WIRING
1. Remove spring latched junction box door and connect xture wires to building wires; insert each supply wire into appropriate junction box
connector. Connect black xture wire to hot, white xture wire to neutral and green xture wire to ground (Fig. 7).
2. Use push-in type wire connectors supplied or wire nuts. Place all wiring and connectors back in wiring box and replace junction box door.
3. When installing in drywall, cut a hole in the drywall (see the following the gure for cut out size).
After nished, if necessary, adjust the xture for ceiling thickness by loosening the screws that attach the square housing to the plaster
frame (Fig. 8).
Fig. 7 Fig. 8
BLACK
GREEN
WHITE
Use template supplied to make appropriate cutout for trim installation.
MODEL TRIM CUTOUT INVISIBLE TRIM™ CUTOUT
MT-4LD116N* MT-4LD116T 5 1/8” X 5 1/8” MT-4LD116TL 5 1/8” X 5 1/8”
MT-4LD216N* MT-4LD216T 9 3/4” X 5 1/8” MT-4LD216TL 9 3/4” X 5 1/8”
MT-4LD316N* MT-4LD316T 14 1/2” X 5 1/8” MT-4LD316TL 14 1/2” X 5 1/8”
MT-4LD416N* MT-4LD416T 19 1/8” X 5 1/8” MT-4LD416TL 19 1/8” X 5 1/8”
MT-4LD226N* MT-4LD226T 9 3/4” X 9 3/4” MT-4LD226TL 9 3/4” X 9 3/4”
TO INSTALL TRIM
1. Raise the trim to the housing and attach two sides by securing the tension spring in the anchor cleat (as Fig.9, Fig.10).Push the trim
ush up against the ceiling (Fig.11).
Fig. 9 Fig. 10 Fig. 11
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEBRUARY, 2015
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585

INSTALLATION INSTRUCTION
Precision Multiples
Non-IC, 4” LED with ELV and 0-10V dimming options
INVISIBLE TRIM™ INSTALLATION
1. Raise the screen panel to ceiling opening and secure with screws supplied (Fig.12, Fig.13 and Fig.14).
2. Apply plaster over the screen panel and sand surface when dry for a nished look (Fig.15 and Fig.16).
Fig. 12
Fig. 15
Fig. 13
Fig. 16
ALTERNATE ACCESSORY LENSES
1. Twist the the lens ring counter clockwise to remove (hold with a lens or a accessory lens).
2. Replace the glass lens or other accessory lens (Fig.17).
Fig. 14
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Fig. 17
Accessory Lens
Glass
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEBRUARY, 2015

INSTALLATION INSTRUCTION
Precision Multiples
Non-IC, 4” LED with ELV and 0-10V dimming options
DIMMING:
BRAND MODEL NUMBER TYPE
LEVITON LPE04 ELV 120V
LEVITON VPE06 ELV 120V
LEVITON VPE04 ELV 120V
LUTRON SELV-300P ELV 120V
LUTRON DVELV-300P ELV 120V
LUTRON MAELV-600 ELV 120V
LUTRON NTELV-300 ELV 120V
Please visit our website or contact a WAC Lighting professional for a complete list of compatible dimmers and sensors.
