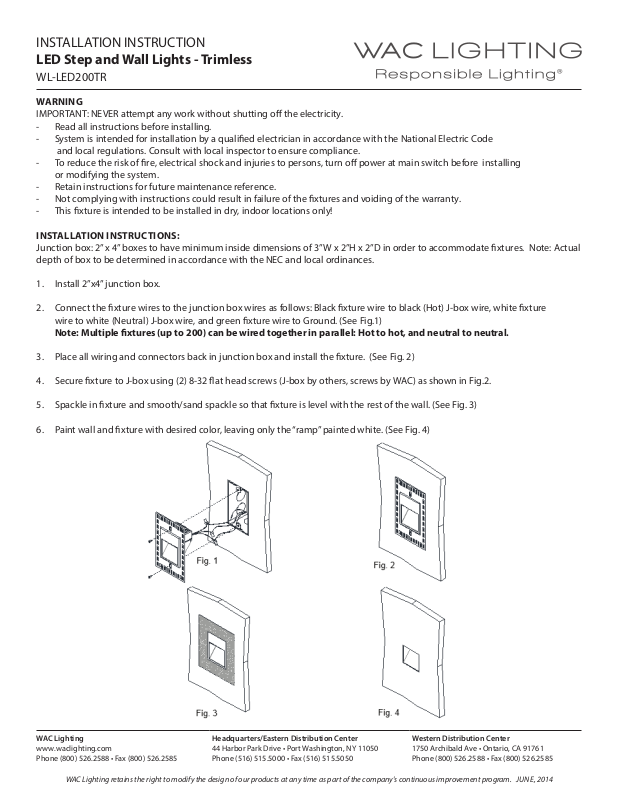

INSTALLATION INSTRUCTION

LED Step and Wall Lights - Trimless

WL-LED200TR

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electric Code
and local regulations. Consult with local inspector to ensure compliance.

- To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing
or modifying the system.

- Retain instructions for future maintenance reference.

- Not complying with instructions could result in failure of the xtures and voiding of the warranty.

- This xture is intended to be installed in dry, indoor locations only!

INSTALLATION INSTRUCTIONS:

Junction box: 2” x 4” boxes to have minimum inside dimensions of 3”W x 2”H x 2”D in order to accommodate xtures. Note: Actual
depth of box to be determined in accordance with the NEC and local ordinances.

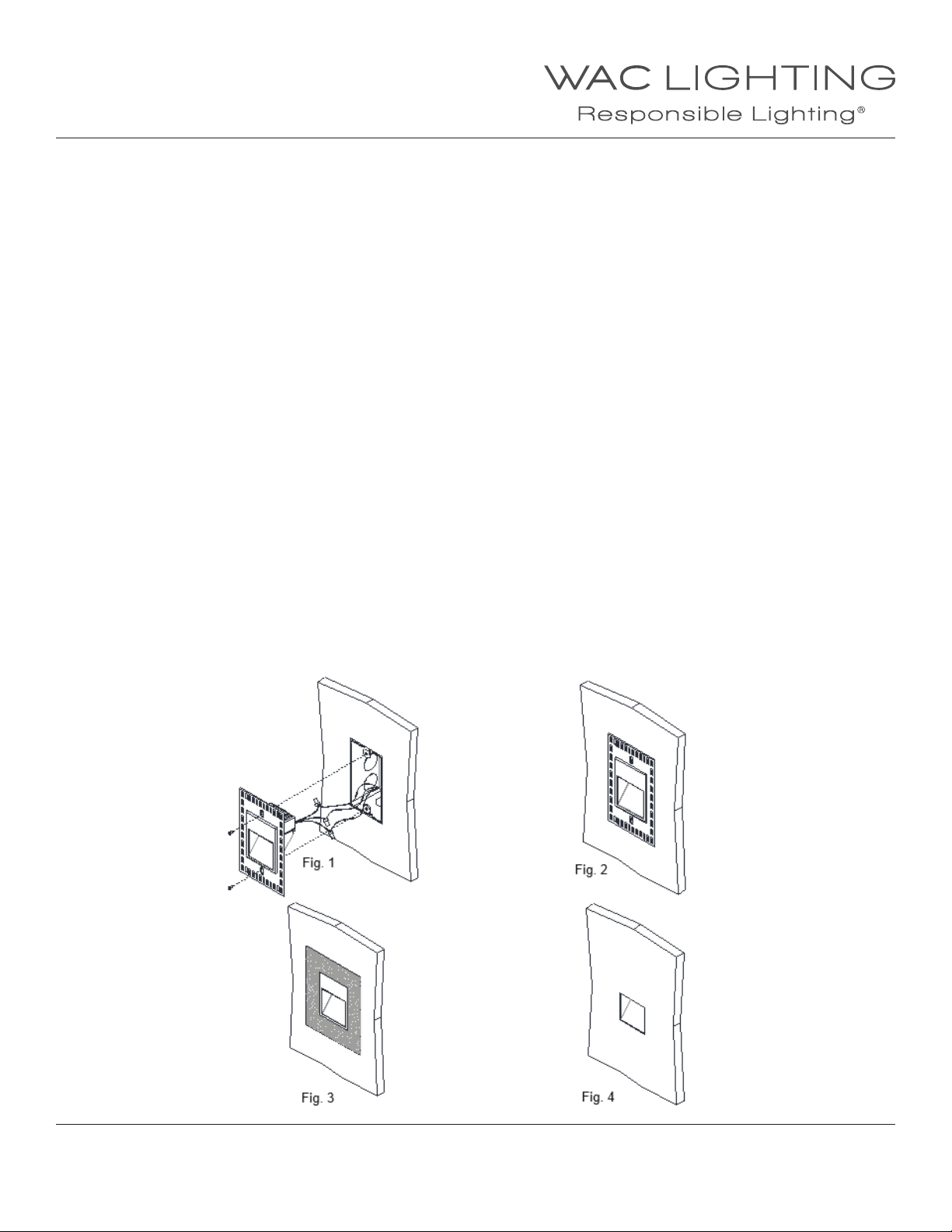

1. Install 2”x4” junction box.

2. Connect the xture wires to the junction box wires as follows: Black xture wire to black (Hot) J-box wire, white xture
wire to white (Neutral) J-box wire, and green xture wire to Ground. (See Fig.1)
Note: Multiple xtures (up to 200) can be wired together in parallel: Hot to hot, and neutral to neutral.

3. Place all wiring and connectors back in junction box and install the xture. (See Fig. 2)

4. Secure xture to J-box using (2) 8-32 at head screws (J-box by others, screws by WAC) as shown in Fig.2.

5. Spackle in xture and smooth/sand spackle so that xture is level with the rest of the wall. (See Fig. 3)

6. Paint wall and xture with desired color, leaving only the “ramp” painted white. (See Fig. 4)
