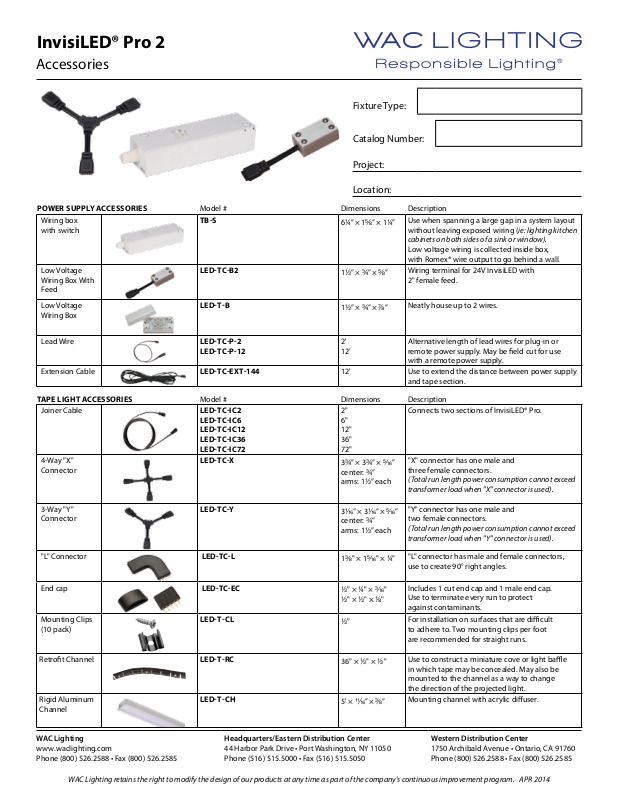

InvisiLED® Pro 2
Accessories
Fixture Type:
Catalog Number:
Project:
Location:
POWER SUPPLY ACCESSORIES Model # Dimensions Description
Wiring box
with switch
Low Voltage
Wiring Box With
Feed
Low Voltage
Wiring Box
TB-S
LED-TC-B2
LED-T-B
64” × 1s” × 14”
12” × w” × s”
12” × w” × d”
Use when spanning a large gap in a system layout
without leaving exposed wiring (ie: lighting kitchen
cabinets on both sides of a sink or window).
Low voltage wiring is collected inside box,
with Romex® wire output to go behind a wall.
Wiring terminal for 24V InvisiLED with
2" female feed.
Neatly house up to 2 wires.
Lead Wire
Extension Cable LED-TC-EXT-144 12' Use to extend the distance between power supply
TAPE LIGHT ACCESSORIES Model # Dimensions Description
Joiner Cable LED-TC-IC2
4-Way "X"
Connector
3-Way "Y"
Connector
"L" Connector
End cap
Mounting Clips
(10 pack)
LED-TC-P-2
LED-TC-P-12
LED-TC-IC6
LED-TC-IC12
LED-TC-IC36
LED-TC-IC72
LED-TC-X
LED-TC-Y
LED-TC-L
LED-TC-EC
LED-T-CL
2'
12'
2"
6"
12"
36"
72"
3w” × 3w” × c”
center: w”
arms: 12” each
3z” × 3z” × c”
center: w”
arms: 12” each
1a" × 1c" × 4"
2" × 4" × x"
2" × 2" × 8"
2"
Alternative length of lead wires for plug-in or
remote power supply. May be eld cut for use
with a remote power supply.
and tape section.
Connects two sections of InvisiLED® Pro.
"X" connector has one male and
three female connectors.
(Total run length power consumption cannot exceed
transformer load when "X" connector is used).
"Y" connector has one male and
two female connectors.
(Total run length power consumption cannot exceed
transformer load when "Y" connector is used).
"L" connector has male and female connectors,
use to create 90° right angles.
Includes 1 cut end cap and 1 male end cap.
Use to terminate every run to protect
against contaminants.
For installation on surfaces that are dicult
to adhere to. Two mounting clips per foot
are recommended for straight runs.
Retrot Channel
Rigid Aluminum
Channel
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2014
LED-T-RC
LED-T-CH
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
36" × 2" × 2"
5' × n” × a”
Use to construct a miniature cove or light bae
in which tape may be concealed. May also be
mounted to the channel as a way to change
the direction of the projected light.
Mounting channel with acrylic diuser.
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
