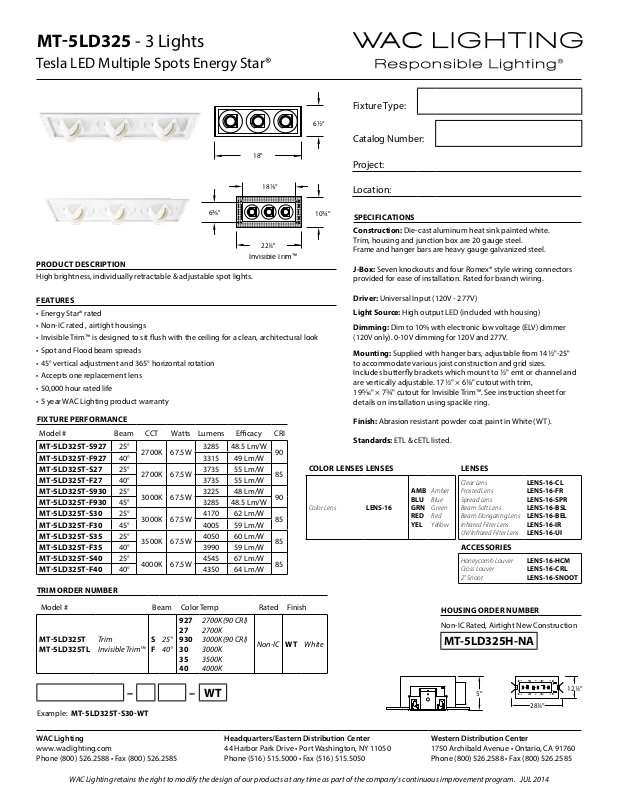

Page 1
MT5LD325 - 3 Lights
Tesla LED Multiple Spots Energy Star®
18"
Fixture Type:
62”
Catalog Number:
Project:
185”
6r”
224"
PRODUCT DESCRIPTION
Invisible Trim™
High brightness, individually retractable & adjustable spot lights.
FEATURES
• Energy Star® rated
• Non-IC rated , airtight housings
• Invisible Trim™ is designed to sit ush with the ceiling for a clean, architectural look
• Spot and Flood beam spreads
• 45° vertical adjustment and 365° horizontal rotation
• Accepts one replacement lens
• 50,000 hour rated life
• 5 year WAC Lighting product warranty
FIXTURE PERFORMANCE
Model # Beam CCT Watts Lumens Ecacy CRI
MT5LD325TS927 25°
MT5LD325TF927 40° 3315 49 Lm/W
MT5LD325TS27 25°
MT5LD325TF27 40° 3735 55 Lm/W
MT5LD325TS930 25°
MT5LD325TF930 45° 3285 48.5 Lm/W
MT5LD325TS30 25°
MT5LD325TF30 45° 4005 59 Lm/W
MT5LD325TS35 25°
MT5LD325TF35 40° 3990 59 Lm/W
MT5LD325TS40 25°
MT5LD325TF40 40° 4350 64 Lm/W
2700K 67.5W
2700K 67.5W
3000K 67.5W
3000K 67.5W
3500K 67.5W
4000K 67.5W
3285 48.5 Lm/W
3735 55 Lm/W
3225 48 Lm/W
4170 62 Lm/W
4050 60 Lm/W
4545 67 Lm/W
90
85
90
85
85
85
COLOR LENSES LENSES LENSES
Color Lens LENS-16
TRIM ORDER NUMBER
10w”
Location:
SPECIFICATIONS
Construction: Die-cast aluminum heat sink painted white.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors
provided for ease of installation. Rated for branch wiring.
Driver: Universal Input (120V - 277V)
Light Source: High output LED (included with housing)
Dimming:
(120V only). 0-10V dimming for 120V and 277V.
Mounting: Supplied with hanger bars, adjustable from 142"-25"
to accommodate various joist construction and grid sizes.
Includes buttery brackets which mount to 2" emt or channel and
are vertically adjustable. 172" × 68" cutout with trim,
19c" × 7w" cutout for Invisible Trim™. See instruction sheet for
details on installation using spackle ring.
Finish: Abrasion resistant powder coat paint in White (WT).
Standards: ETL & cETL listed.
Dim to 10% with electronic low voltage (ELV) dimmer
AMB
BLU
GRN
RED
YEL
Amber
Blue
Green
Red
Yellow
Clear Lens
Frosted Lens
Spread Lens
Beam Soft Lens
Beam Elongating Lens
Infrared Filter Lens
UV/Infrared Filter Lens
LENS-16-CL
LENS-16-FR
LENS-16-SPR
LENS-16-BSL
LENS-16-BEL
LENS-16-IR
LENS-16-UI
ACCESSORIES
Honeycomb Louver
Cross Louver
2" Snoot
LENS-16-HCM
LENS-16-CRL
LENS-16-SNOOT
Model # Beam Color Temp Rated Finish
927
2700K (90 CRI)
27
MT5LD325T
MT5LD325TL
Trim
Invisible Trim™SF
25°
40°
930
30
35
40
2700K
3000K (90 CRI)
3000K
3500K
4000K
Non-IC WT White
– – WT
Example: MT5LD325TS30WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
HOUSING ORDER NUMBER
Non-IC Rated, Airtight New Construction
MT-5LD325H-NA
5”
284”
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
124”
Page 2
Tesla LED Multiple Spots Energy Star®
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Recessed light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13100038-7
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
15.0
2.50
DATA OF LAMP PHOTOMETRIC DATA Eff: 59.63 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
22
120
1336.48
1
120.0
2629
100.0
1336.5
DIRECT
0.0
100.0
0.67
0.77
0.0,60.2
0.0,39.8
0.50
0.70
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC
LIGHTING, ou=LAB,
[email protected]
OM.CN, c=CN
日期：2013.10.30 17:28:48 +08'00'
LUMINAIRE PHOTOMETRIC TEST REPORT
TYPE:Recessed light
SPEC.:
SUR.:
WEIGHT:
SERIAL No.:C13100038-8
PROTECTION ANGLE:
C0 PLANE ISOLUX DIAGRAM (UNIT:lx)
MH(m)
14
18
22
26
30
34
38
42
46
0.0 17.0 34.0
S(m)
28.0
4.60
DATA OF LAMP PHOTOMETRIC DATA Eff: 61.97 lm/W
Imax(cd)
LOR(%)
TOTAL FLUX(lm)
CIE CLASS
up(%)
down(%)
S/MH(C0/180)
S/MH(C90/270)
UP,DN(C0-180)
UP,DN(C180-360)
CIBSE SHR NOM
CIBSE SHR MAX
22
120
1389.25
1
120.0
4988
100.0
1389.2
DIRECT
0.0
100.0
0.41
0.57
0.0,61.5
0.0,38.5
0.00
1.00
数字签名者：Alice.Xiao
DN：cn=Alice.Xiao, o=WAC LIGHTING,
ou=LAB,
[email protected]
N, c=CN
日期：2013.10.30 17:30:09 +08'00'
Photometrics - 3000K
40° Flood Beam Angle
-/+180
150
120
-120
-150
-90
-60
-30
AVERAGE BEAM ANGLE(50%):40.5 DEG
25° Spot Beam Angle
-120
-150
0
600
1200
1800
2400
3000
0
-/+180
150
30
90
60
UNIT:cd
UNIT:cd
C0/180,40.8deg
C90/270,40.2deg
120
-90
-60
-30
AVERAGE BEAM ANGLE(50%):25.7 DEG
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
0
1000
2000
3000
4000
5000
0
90
60
UNIT:cd
UNIT:cd
C0/180,26.1deg
C90/270,25.3deg
30
