Page 1
R422
min 12”
max 25”
4x”
62”
min 12”
max 25”
4x”
52”
11a”
48”
5n”

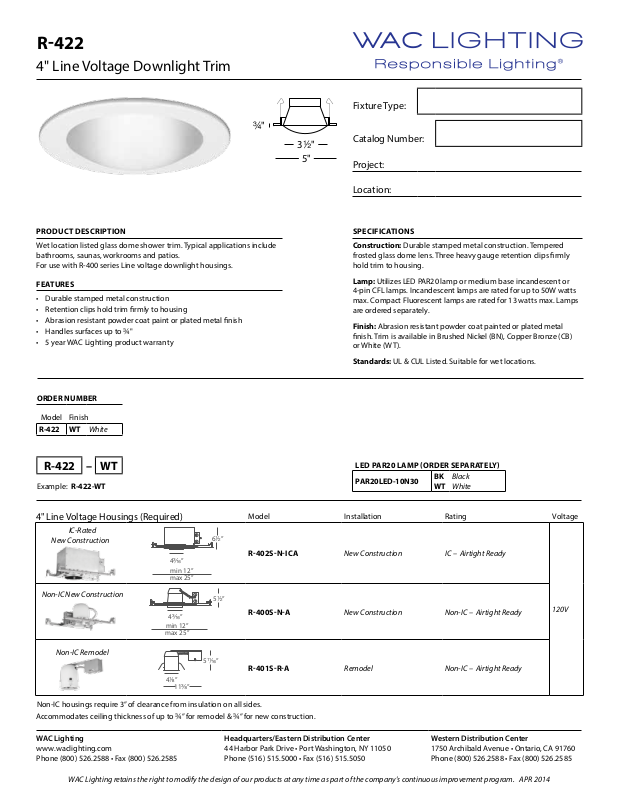

4" Line Voltage Downlight Trim
w"
32"
5"
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Wet location listed glass dome shower trim. Typical applications include
bathrooms, saunas, workrooms and patios.
For use with R-400 series Line voltage downlight housings.
FEATURES
• Durable stamped metal construction
• Retention clips hold trim rmly to housing
• Abrasion resistant powder coat paint or plated metal nish
• Handles surfaces up to w"
• 5 year WAC Lighting product warranty
ORDER NUMBER
Model Finish
R-422 WT White
R-422 – WT
Example: R-422-WT
4" Line Voltage Housings (Required)
IC-Rated
New Construction
Model Installation Rating Voltage
R402SNICA New Construction IC – Airtight Ready
SPECIFICATIONS
Construction: Durable stamped metal construction. Tempered
frosted glass dome lens. Three heavy gauge retention clips rmly
hold trim to housing.
Lamp: Utilizes LED PAR20 lamp or medium base incandescent or
4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts
max. Compact Fluorescent lamps are rated for 13 watts max. Lamps
are ordered separately.
Finish: Abrasion resistant powder coat painted or plated metal
nish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB)
or White (W T).
Standards: UL & CUL Listed. Suitable for wet locations.
LED PAR20 LAMP ORDER SEPARATELY
PAR20LED-10N30
BKWTBlack
White
Non-IC New Construction
R400SNA New Construction Non-IC – Airtight Ready
Non-IC Remodel
R401SRA Remodel Non-IC – Airtight Ready
Non-IC housings require 3” of clearance from insulation on all sides.
Accommodates ceiling thickness of up to w” for remodel & w” for new construction.
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. APR 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
120V
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
