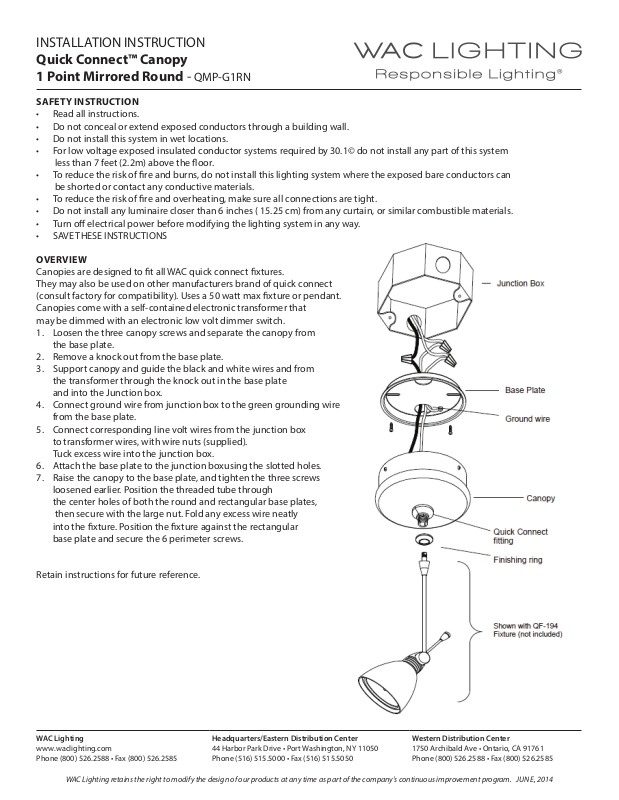

INSTALLATION INSTRUCTION

Quick Connect™ Canopy
1 Point Mirrored Round - QMP-G1RN

SAFETY INSTRUCTION

• Read all instructions.

• Do not conceal or extend exposed conductors through a building wall.

• Do not install this system in wet locations.

• For low voltage exposed insulated conductor systems required by 30.1© do not install any part of this system
less than 7 feet (2.2m) above the oor.

• To reduce the risk of re and burns, do not install this lighting system where the exposed bare conductors can
be shorted or contact any conductive materials.

• To reduce the risk of re and overheating, make sure all connections are tight.

• Do not install any luminaire closer than 6 inches ( 15.25 cm) from any curtain, or similar combustible materials.

• Turn o electrical power before modifying the lighting system in any way.

• SAVE THESE INSTRUCTIONS

OVERVIEW
Canopies are designed to t all WAC quick connect xtures.
They may also be used on other manufacturers brand of quick connect
(consult factory for compatibility). Uses a 50 watt max xture or pendant.
Canopies come with a self-contained electronic transformer that
may be dimmed with an electronic low volt dimmer switch.

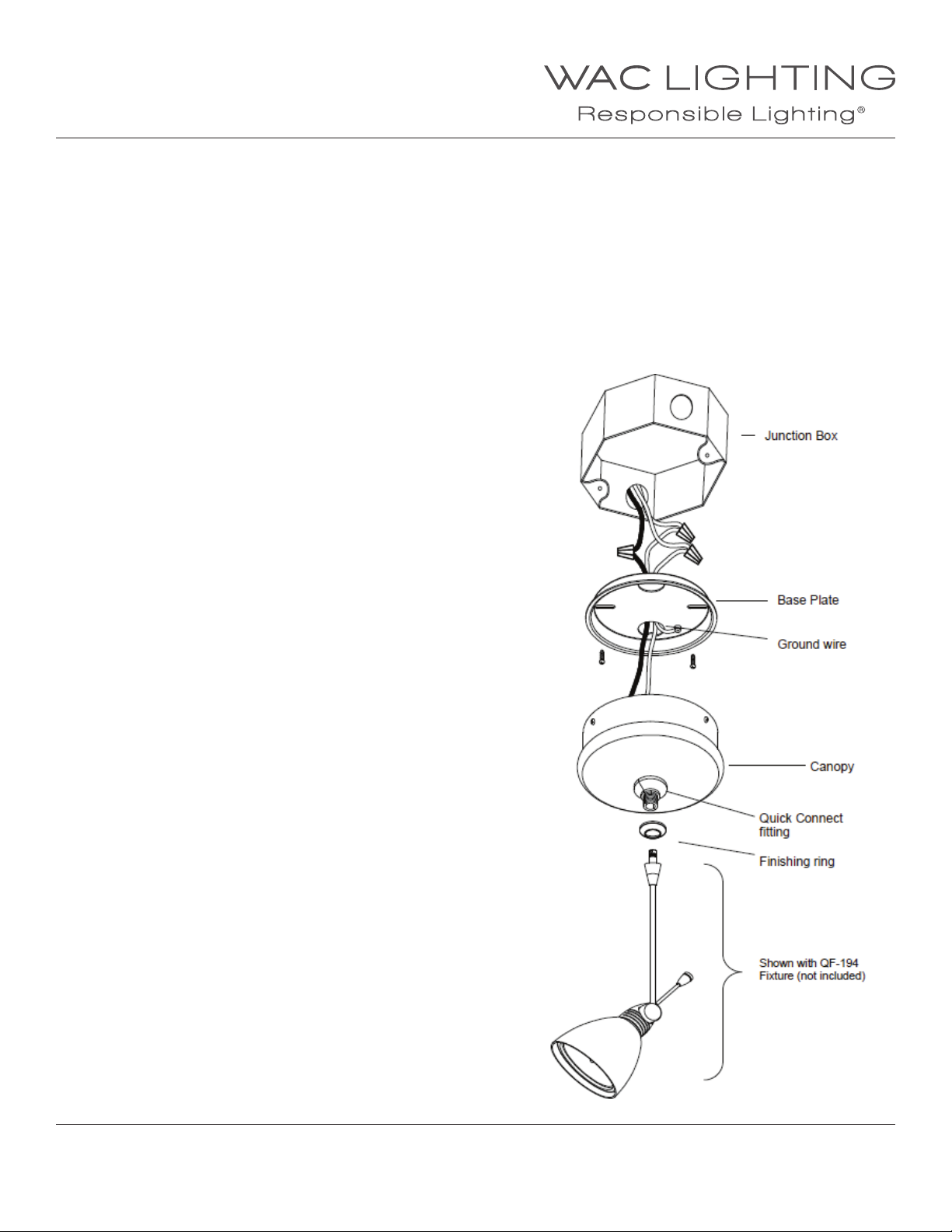

1. Loosen the three canopy screws and separate the canopy from

the base plate.

2. Remove a knock out from the base plate.

3. Support canopy and guide the black and white wires and from

the transformer through the knock out in the base plate
and into the Junction box.

4. Connect ground wire from junction box to the green grounding wire

from the base plate.

5. Connect corresponding line volt wires from the junction box

to transformer wires, with wire nuts (supplied).
Tuck excess wire into the junction box.

6. Attach the base plate to the junction boxusing the slotted holes.

7. Raise the canopy to the base plate, and tighten the three screws

loosened earlier. Position the threaded tube through
the center holes of both the round and rectangular base plates,
then secure with the large nut. Fold any excess wire neatly
into the xture. Position the xture against the rectangular
base plate and secure the 6 perimeter screws.

Retain instructions for future reference.
