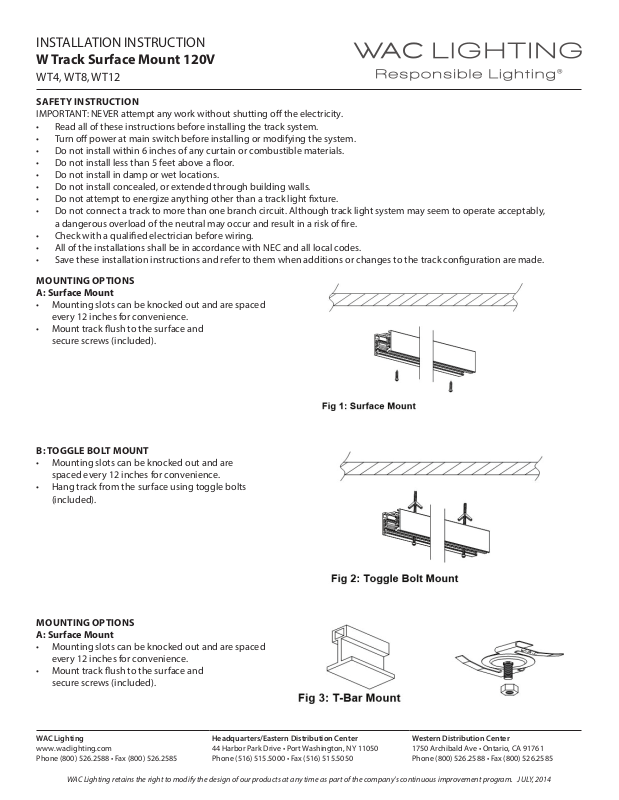

WAC Lighting WAC7906 Installation & Assembly

W Track Surface Mount 120V
WT4, WT8, WT12
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
Read all of these instructions before installing the track system.
Turn o power at main switch before installing or modifying the system.
Do not install within 6 inches of any curtain or combustible materials.
Do not install less than 5 feet above a oor.
Do not install in damp or wet locations.
Do not install concealed, or extended through building walls.
Do not attempt to energize anything other than a track light xture.
Do not connect a track to more than one branch circuit. Although track light system may seem to operate acceptably, a dangerous overload of the neutral may occur and result in a risk of re.
Check with a qualied electrician before wiring.
All of the installations shall be in accordance with NEC and all local codes.
Save these installation instructions and refer to them when additions or changes to the track conguration are made.

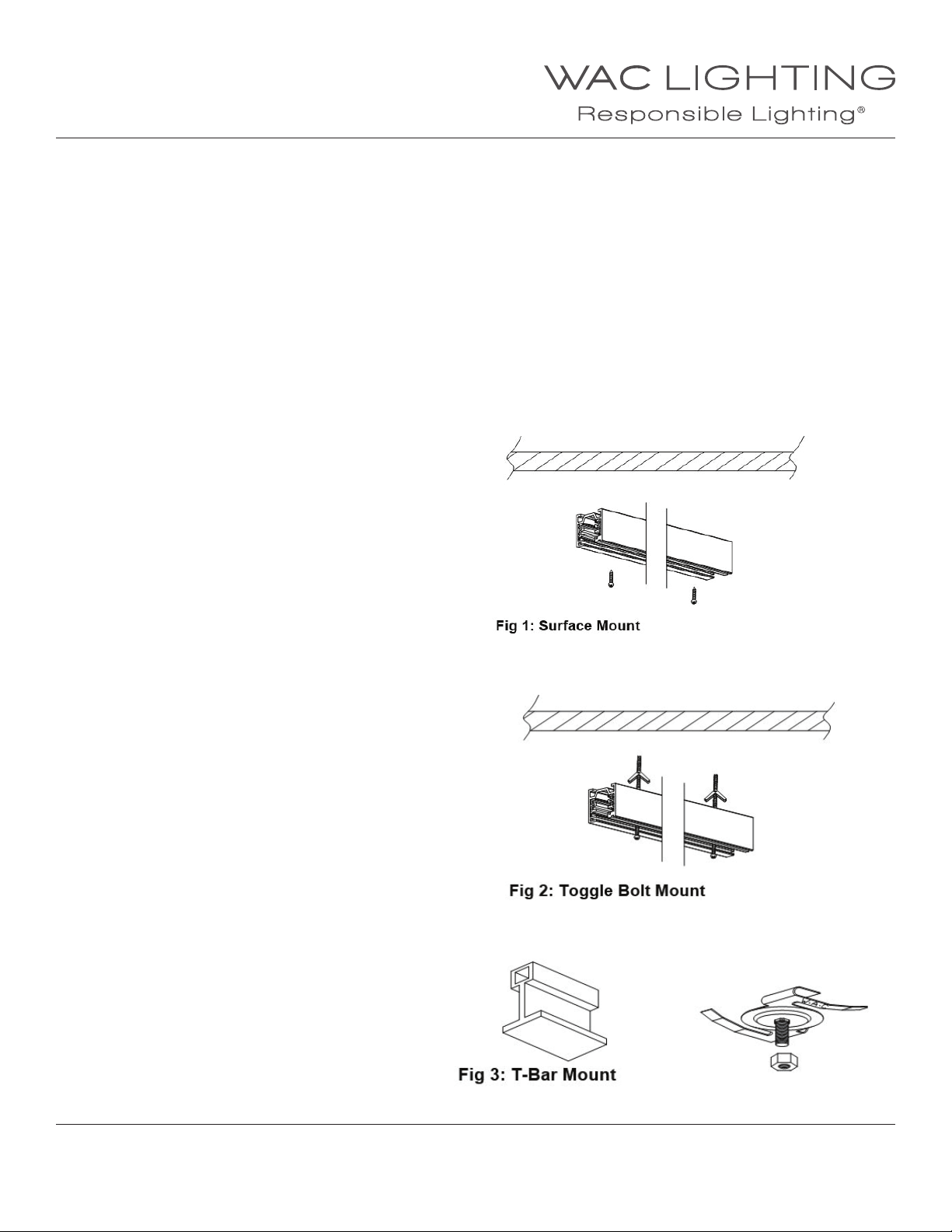

MOUNTING OPTIONS A: Surface Mount
Mounting slots can be knocked out and are spaced
every 12 inches for convenience.
Mount track ush to the surface and
secure screws (included).
B: TOGGLE BOLT MOUNT
Mounting slots can be knocked out and are
spaced every 12 inches for convenience.
Hang track from the surface using toggle bolts
(included).
MOUNTING OPTIONS A: Surface Mount
Mounting slots can be knocked out and are spaced
every 12 inches for convenience.
Mount track ush to the surface and
secure screws (included).
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
W Track Surface Mount 120V
WT4, WT8, WT12
FEED OPTIONS
Make sure power is o before wiring.
Note the polarity indicator of the track and accessories.

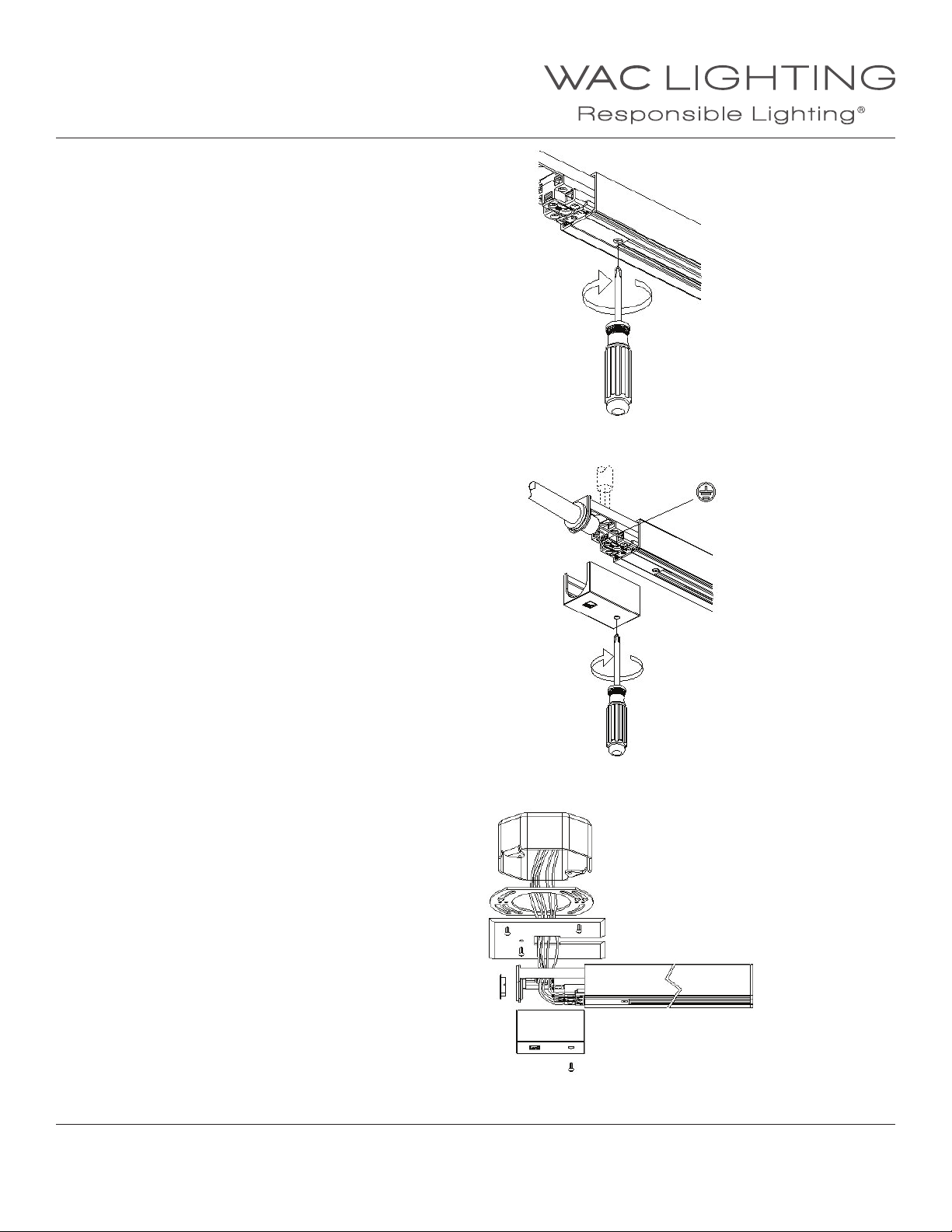

Live End Connector (WEDL / WEDR)
1. Slide live end connector into track and secured screw (Fig 4a).
2. Remove the cover.
3. Bring feed through either the knock-out on the bottom of
the connector or on the side of the connector (Fig 4b).
4. If bringing feed through the knock-out on the bottom of
the connector be sure that the knock-out cover is installed on the side of the connector.
5. Wiring(Fig 4c).
6. Replace the cover.
FIG 4A: LIVE END CONNECTOR TRACK ENGAGEMENT
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
FIG 4B: LIVE END CONNECTOR FEED OPTIONS
FIG 4C: LIVE END CONNECTOR WIRING DIAGRAM
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Surface Mount 120V
WT4, WT8, WT12

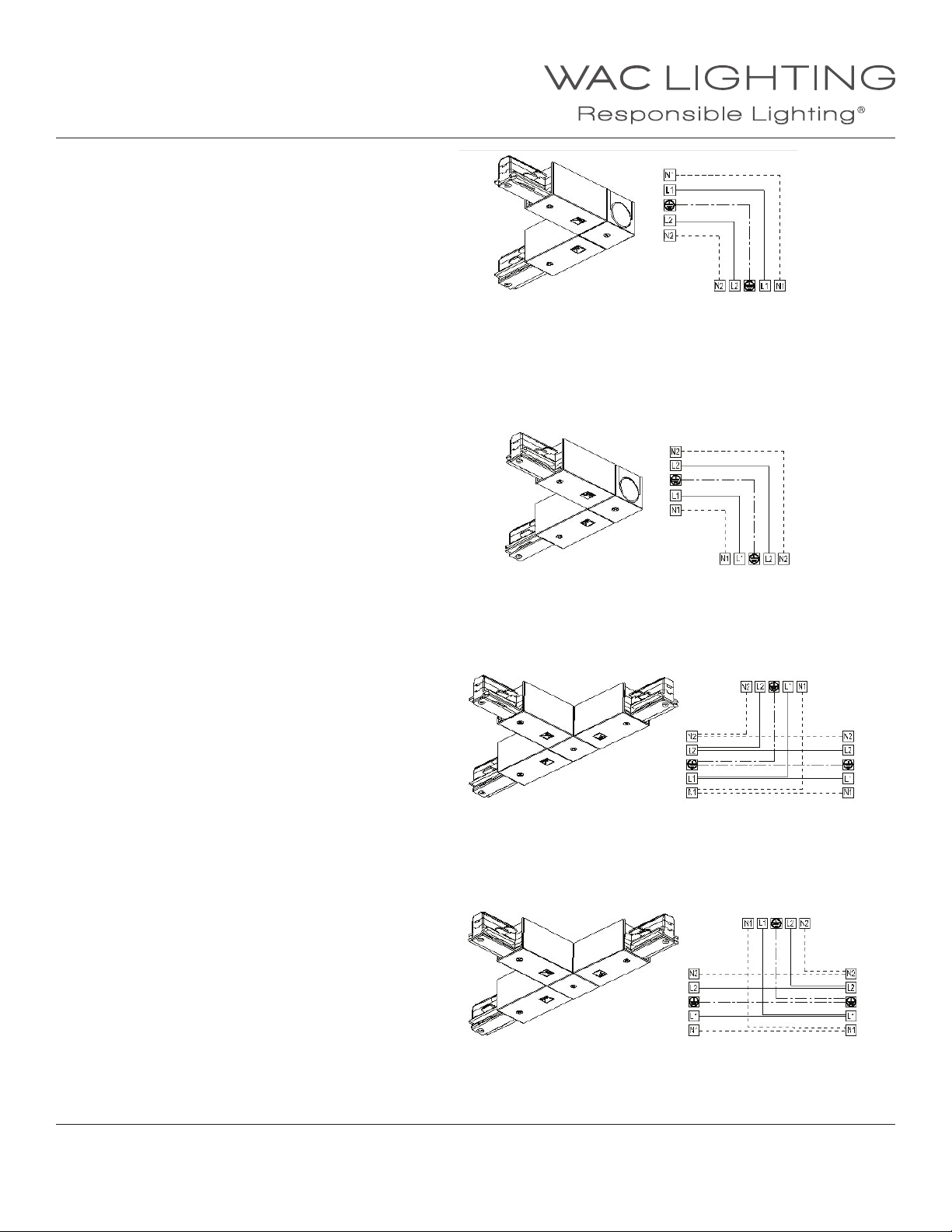

L CONNECTER WLLC / WRLC
WLLC EARTH CONNECT INSIDE
T CONNECTER WLTC / WRTC
WRLC EARTH CONNECT INSIDE
WLTC EARTH CONNECT LEFT
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
WRTC EARTH CONNECT RIGHT
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Surface Mount 120V
WT4, WT8, WT12

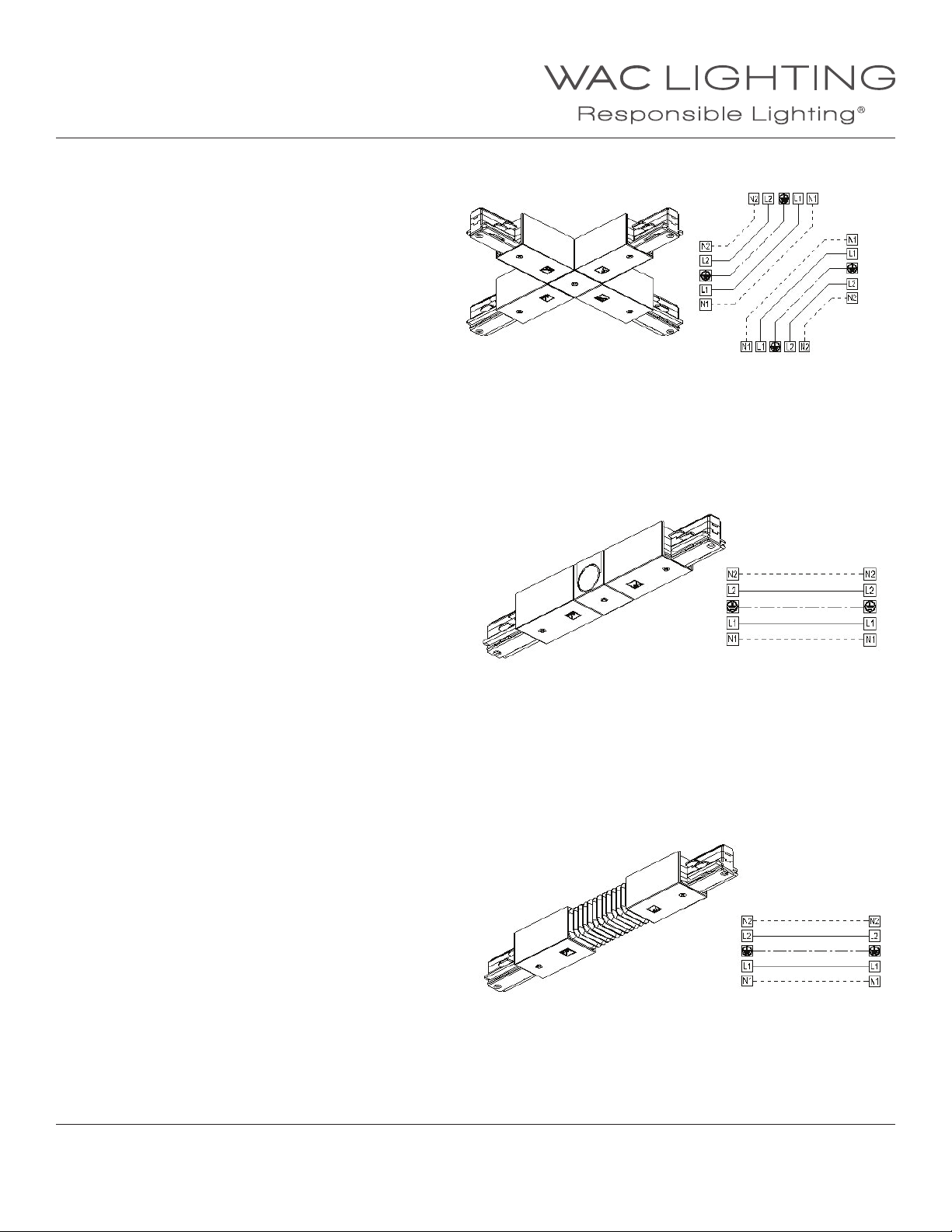

X CONNECTER WXC
I CONNECTER WIC
WXC
FLEXIBLE CONNECTER WFC
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WIC
WFC
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
W Track Surface Mount 120V
WT4, WT8, WT12
ACCESSORY OPTIONS
Make sure power is o before connecting.
Note the polarity indicator of the track and accessories.
The I Power Connector (WPC) must be placed directly between two track sections as shown in Fig 5 before securing the screw.

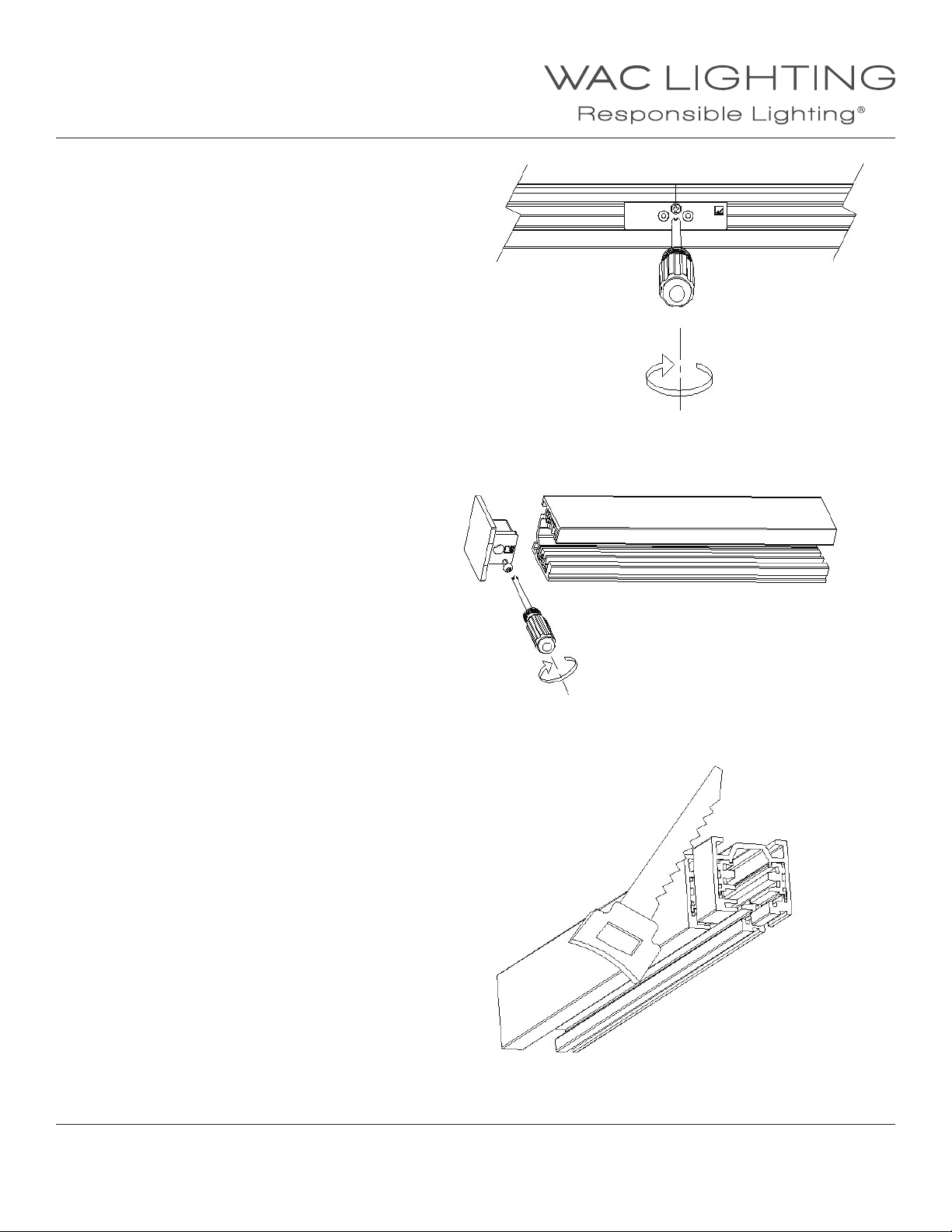

End Caps (WEC) should be inserted into the track and secured as shown in Fig 6.
FIG 5: WPC INSTALLATION
FIELD CUTTING
Cut the track, insulation material, and copper busbars with one straight cut and remove any burrs that may have resulted from the cut.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
FIG 6: WEC INSTALLATION
CUT FLUSH
FIG 7: FIELD CUTTING
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
W Track Surface Mount 120V
WT4, WT8, WT12
MAXIMUM LOAD

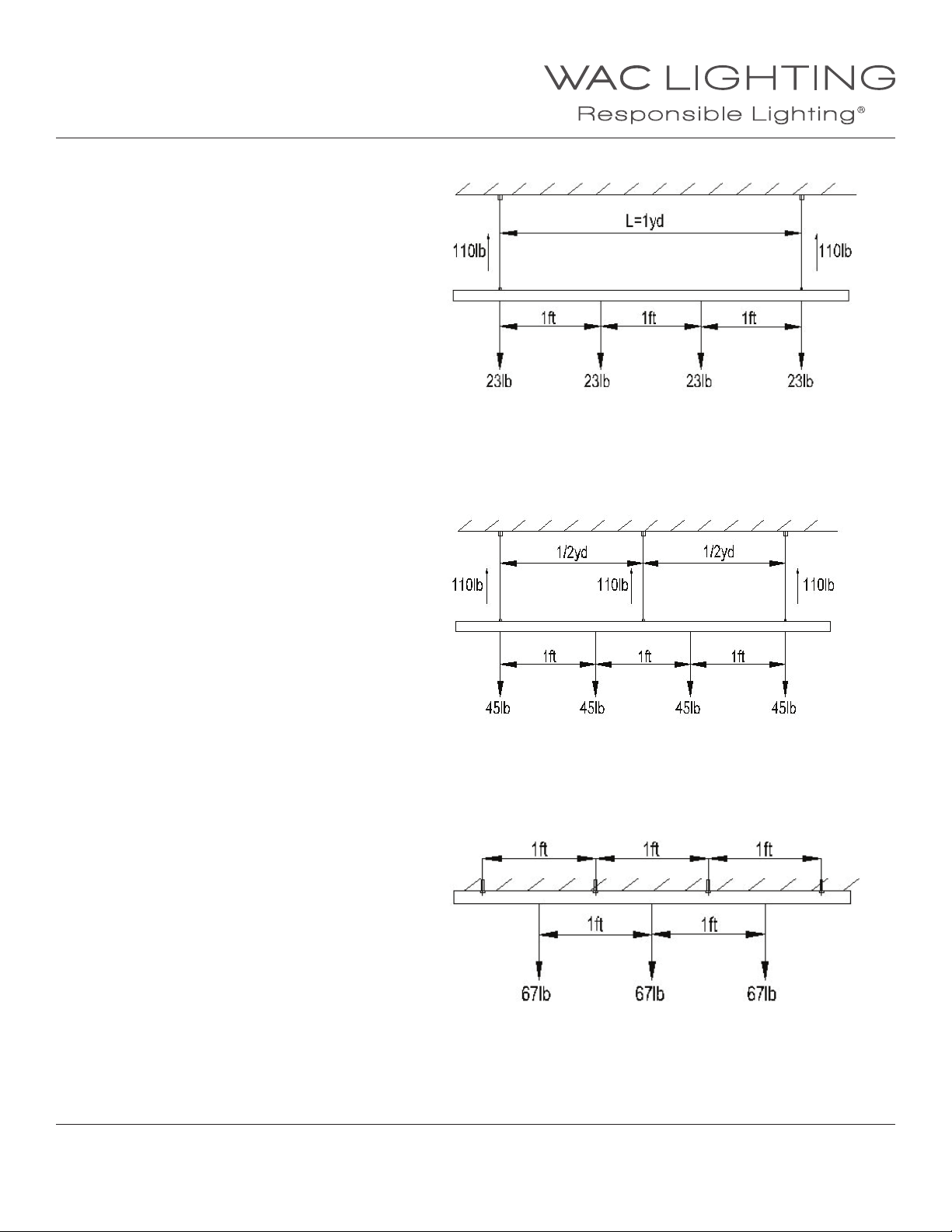

The drawings (Fig 8a, Fig 8b, Fig 8c) show the maximum permissible mechanical load by 2-circuit W2 tracks for luminaires or other loads in relationship to the xation or suspension point. It includes both of the weights of the track system.
FIG 8A: MAXIMUM LOAD  1
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
FIG 8B: MAXIMUM LOAD  2
FIG 8C: MAXIMUM LOAD  3
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Surface Mount 120V
WT4, WT8, WT12

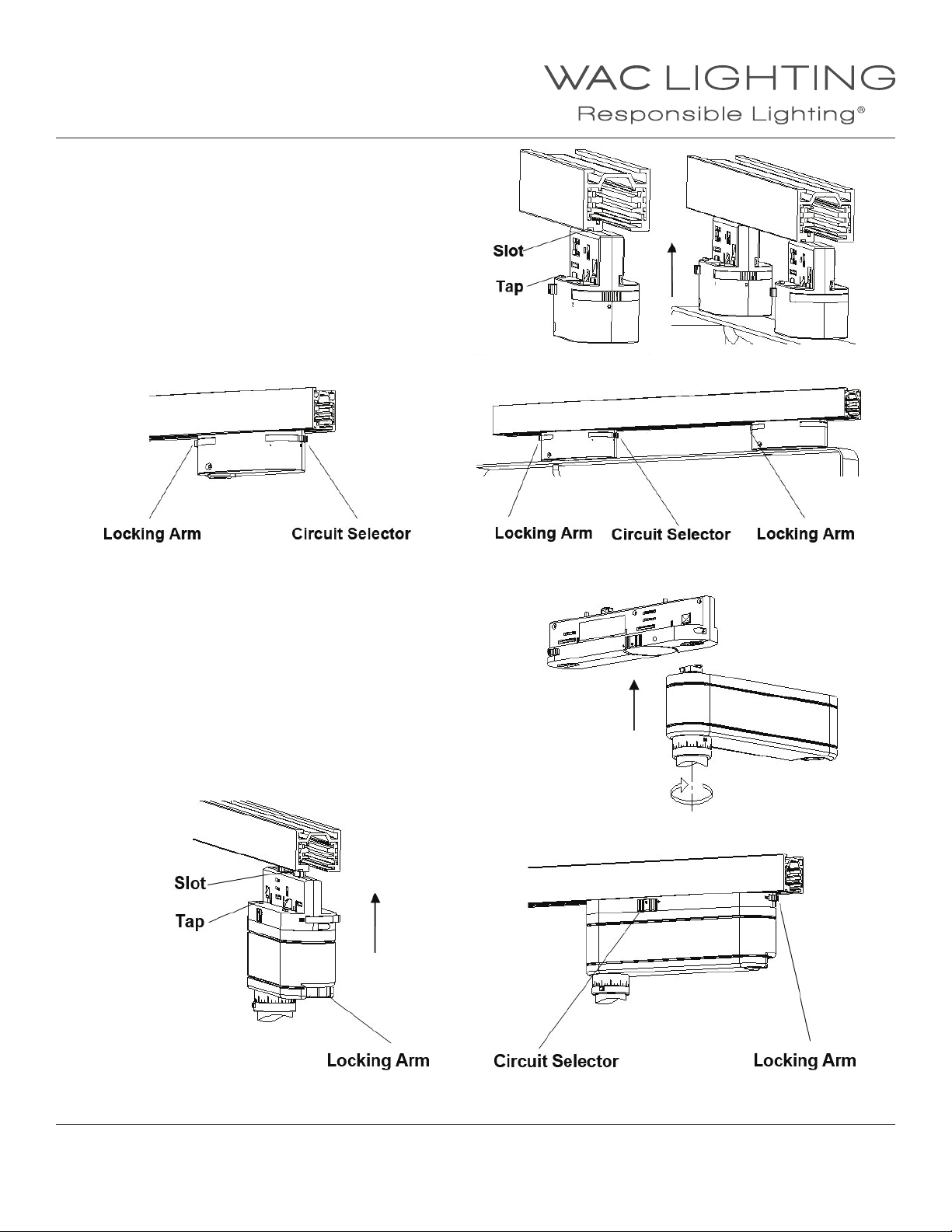

TRACK HEAD OPTIONS W2 LINE VOLTAGE / CFL TRACK HEAD
1. Set circuit selector to 0.
2. Set locking arm to unlock position.
3. Align this tab to the slot on the track (Fig 9a).
4. Insert adapter (Fig 9b, Fig 9c).
5. Set locking arm to lock position.
6. Set circuit selector to 1 or 2.
FIG 9A: ADAPTER TO BE INSERTED
FIG 9B: INSERTED ADAPTER
CONVERTER CV2TLV / CV2TMH FOR J TRACK HEADS
1. J track head insert converter(Fig 10a).
2. Set J track head ’s locking arm to lock position.
3. Set circuit selector to 0.
4. Set converter’s locking arm to unlock position.
5. Align this tab to the slot on the track(Fig 10b).
6. Insert adapter.
7. Set converter’s locking arm to lock position.
8. Set circuit selector to 1 or 2.
FIG 9C
FIG 10A: J TRACK HEAD TO BE INSERTED
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
INSERTED CONVERTERFIG 10B: CONVERTER TO BE INSERTED
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
