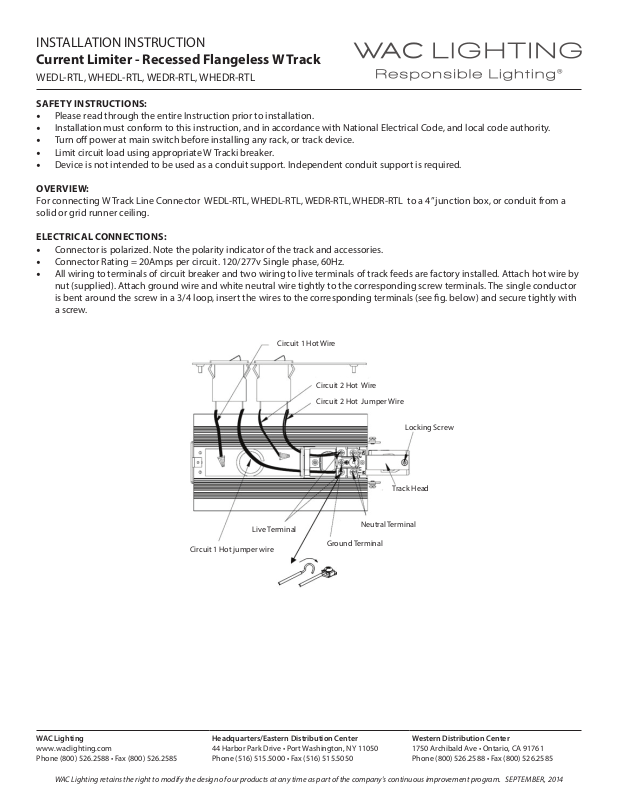

INSTALLATION INSTRUCTION
Current Limiter - Recessed Flangeless W Track
WEDL-RTL, WHEDL-RTL, WEDR-RTL, WHEDR-RTL
SAFETY INSTRUCTIONS:
• Please read through the entire Instruction prior to installation.
• Installation must conform to this instruction, and in accordance with National Electrical Code, and local code authority.
• Turn o power at main switch before installing any rack, or track device.
• Limit circuit load using appropriate W Tracki breaker.
• Device is not intended to be used as a conduit support. Independent conduit support is required.
OVERVIEW:
For connecting W Track Line Connector WEDL-RTL, WHEDL-RTL, WEDR-RTL, WHEDR-RTL to a 4” junction box, or conduit from a
solid or grid runner ceiling.
ELECTRICAL CONNECTIONS:
• Connector is polarized. Note the polarity indicator of the track and accessories.
• Connector Rating = 20Amps per circuit. 120/277v Single phase, 60Hz.
• All wiring to terminals of circuit breaker and two wiring to live terminals of track feeds are factory installed. Attach hot wire by
nut (supplied). Attach ground wire and white neutral wire tightly to the corresponding screw terminals. The single conductor
is bent around the screw in a 3/4 loop, insert the wires to the corresponding terminals (see g. below) and secure tightly with
a screw.

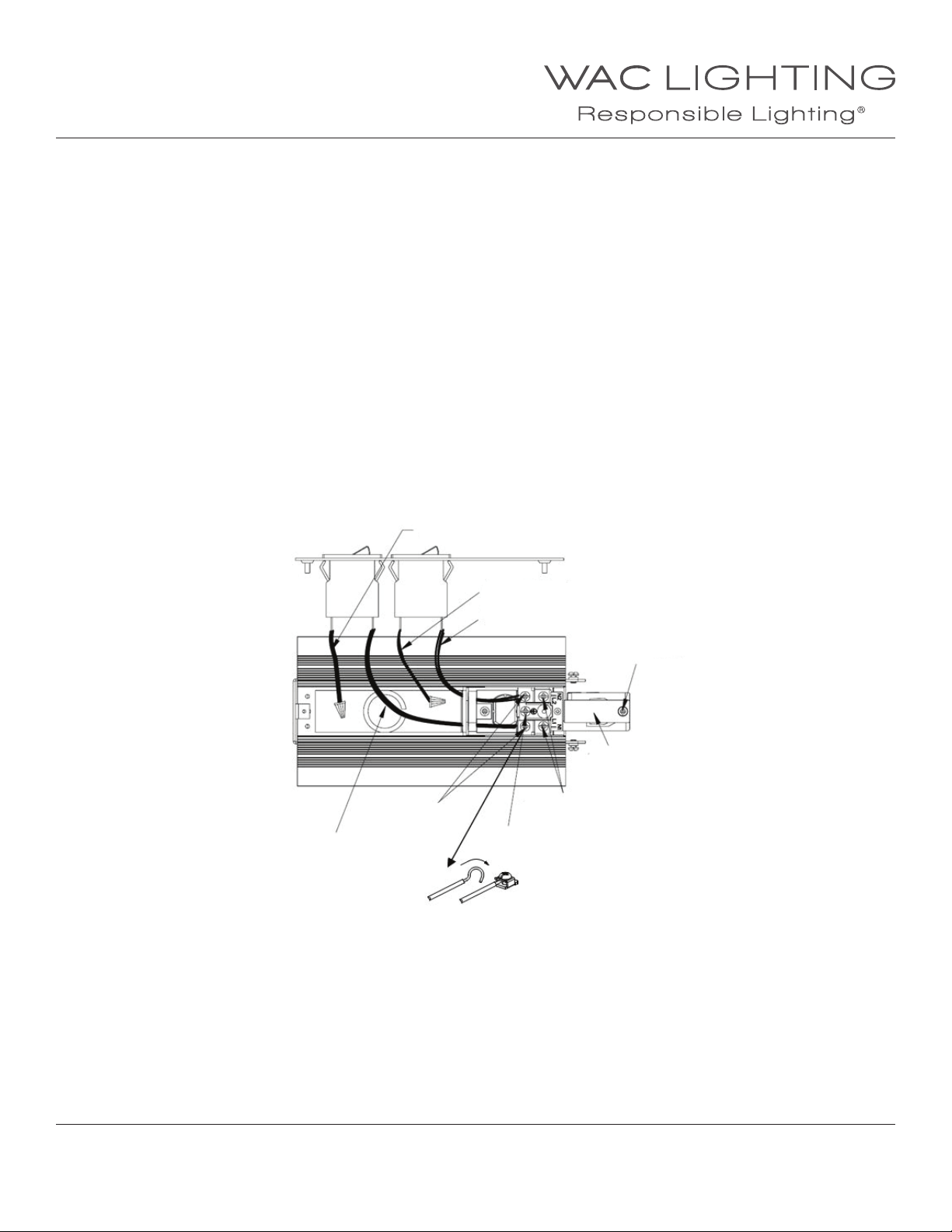

Live Terminal
Circuit 1 Hot jumper wire
Circuit 1 Hot Wire
Circuit 2 Hot Wire
Circuit 2 Hot Jumper Wire
Locking Screw
Track Head
Neutral Terminal
Ground Terminal
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
INSTALLATION INSTRUCTION
Current Limiter - Recessed Flangeless W Track
WEDL-RTL, WHEDL-RTL, WEDR-RTL, WHEDR-RTL

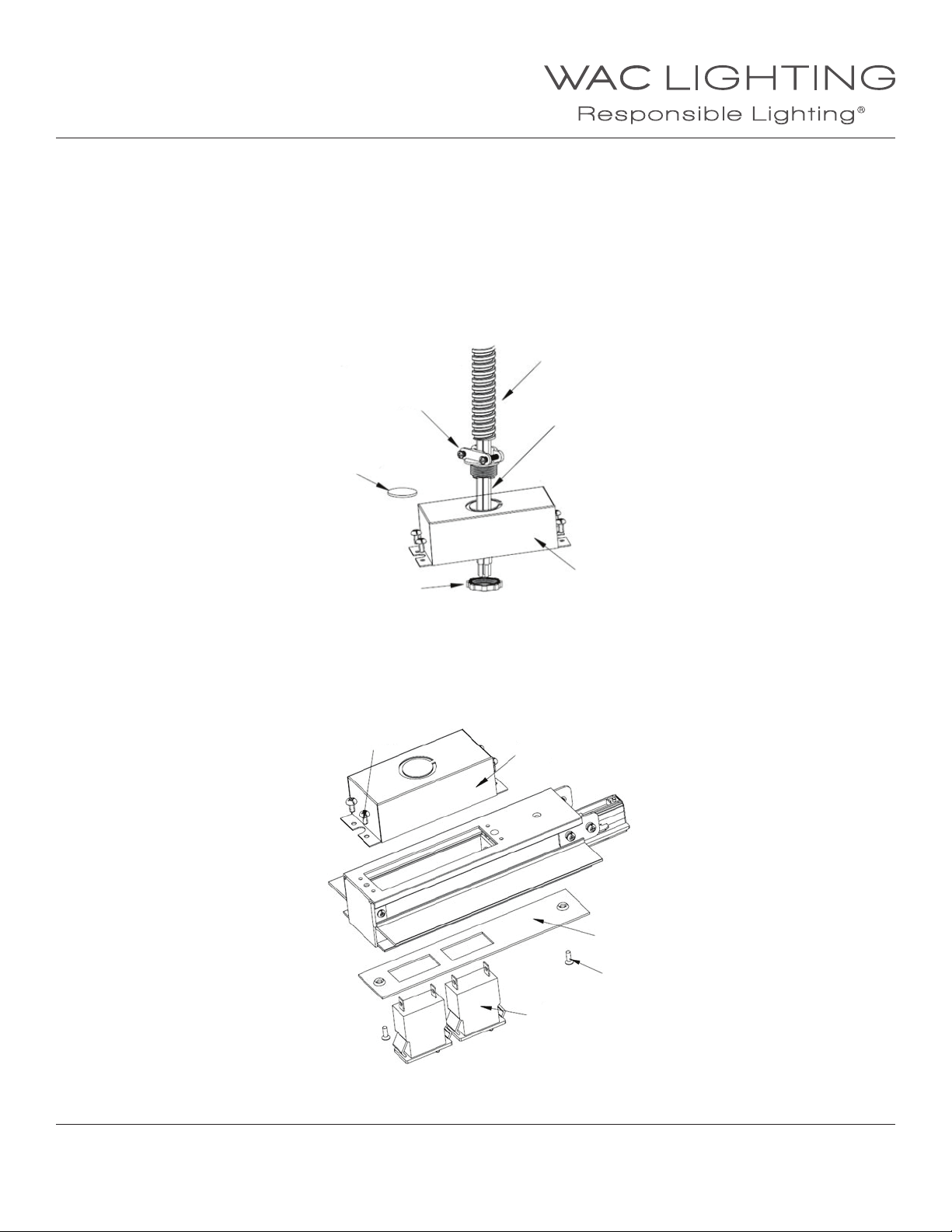

INSTALLING POWER LIMITER TO CONDUIT OR GRID RUNNER CEILING
1. Remove Cover and Box.
2. Remove appropriate knockout in Box, and feed 3/8” or 1/2” Conduit and Supply leads into Box. Fasten Conduit to Box.
3. Attach wires per electrical connection instructions.
4. Attach Track to Current Limiter. Be sure to check for proper polarity between track and switch.
Also ensure all 5 contact plates are properly inserted into each individual track circuit.
5. Replace Box and Cover.
6. Secure the track to the ceiling.
Conduit
Conduit Connector
(3/8” or 3/4”)
Electrical Wire (5-12AWG)
Knock Out
Locking Nut
Screw
Box
Box
Cover
Screw
Circuit Breaker
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
