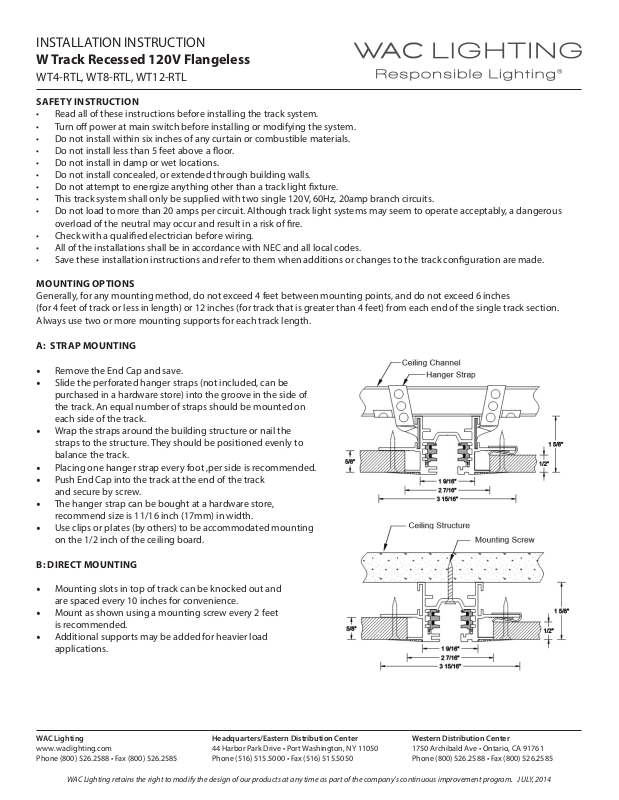

WAC Lighting WAC7769 Installation & Assembly

W Track Recessed 120V Flangeless
WT4-RTL, WT8-RTL, WT12-RTL
SAFETY INSTRUCTION
Read all of these instructions before installing the track system.
Turn o power at main switch before installing or modifying the system.
Do not install within six inches of any curtain or combustible materials.
Do not install less than 5 feet above a oor.
Do not install in damp or wet locations.
Do not install concealed, or extended through building walls.
Do not attempt to energize anything other than a track light xture.
This track system shall only be supplied with two single 120V, 60Hz, 20amp branch circuits.
Do not load to more than 20 amps per circuit. Although track light systems may seem to operate acceptably, a dangerous overload of the neutral may occur and result in a risk of re.
Check with a qualied electrician before wiring.
All of the installations shall be in accordance with NEC and all local codes.
Save these installation instructions and refer to them when additions or changes to the track conguration are made.
MOUNTING OPTIONS
Generally, for any mounting method, do not exceed 4 feet between mounting points, and do not exceed 6 inches (for 4 feet of track or less in length) or 12 inches (for track that is greater than 4 feet) from each end of the single track section. Always use two or more mounting supports for each track length.
A: STRAP MOUNTING
Remove the End Cap and save.
Slide the perforated hanger straps (not included, can be
purchased in a hardware store) into the groove in the side of the track. An equal number of straps should be mounted on each side of the track.
Wrap the straps around the building structure or nail the
straps to the structure. They should be positioned evenly to balance the track.
Placing one hanger strap every foot ,per side is recommended.
Push End Cap into the track at the end of the track
and secure by screw.
The hanger strap can be bought at a hardware store,
recommend size is 11/16 inch (17mm) in width.
Use clips or plates (by others) to be accommodated mounting
on the 1/2 inch of the ceiling board.
B: DIRECT MOUNTING
Mounting slots in top of track can be knocked out and
are spaced every 10 inches for convenience.
Mount as shown using a mounting screw every 2 feet
is recommended.
Additional supports may be added for heavier load
applications.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 120V Flangeless
WT4-RTL, WT8-RTL, WT12-RTL
C: SUSPENSION MOUNTING
Slide or snap the hanger clips (WMT-RT) onto the track,
and space the clips evenly along the track length.
Secure the bolt and make sure the hanger clips tightly
hook in the track groove.
Assemble the stem or cable suspender (refer to WT/WHT
track suspension system) to the hanger clips. Level track and secure to building structure.
Recommended: two clips for 4’ track, three clips for 8’
track, and four clips for 12’ track. Always use more than one clip for each track length. Additional clips may be added for more support.
FEED OPTIONS
Live End Connector can be fed directly from above using a 1/2 inch or 3/4 inch electrical connector.
Make sure power is o before wiring.
Note the polarity indicator of the track and accessories.
Remove cover and save.
Remove knockout in top plate.
Secure conduit by conduit connector
(1/2 or 3/4 size recommended) to top plate and lock the nut.
Pass wires (12AWG) through conduit and connector.
Cut and strip each end of the wire, then a single conductor is clamped directly under the head of the screw when it is tightened. The single conductor is bent around the screw in a 3/4 loop, insert the wires to the corresponding terminals (see g. below) and secure tightly with a screw.
Secure the track to the ceiling
(see mounting options on previous page).
Replace the cover.
Insert the spline and secure to the track with two screws.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 120V Flangeless
WT4-RTL, WT8-RTL, WT12-RTL
OVER IMPEDIMENT
ACCESSORY OPTIONS
Make sure power is o before connecting.
Note the polarity indicator of the track
and accessories.
Insert the spline to the track groove and
secure with two screws.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 120V Flangeless
WT4-RTL, WT8-RTL, WT12-RTL
ACCESSORY OPTIONS
Remove the end cap and save.
Use a metal cutting power saw (preferably in a miter
box) to cut the track, insulation material, and copper bus bars vertically with one straight cut.
If the mounting openings are not in the proper
position to secure after eld cutting, use a power drill to drill an appropriate number of mounting holes. The holes should be 3/16” in diameter, and drill in the top centerline of the track along the track length.
CAUTION: Remove any burrs that may have
resulted from the cut or drill. There should be no burrs between the copper wires and the aluminum track housing.
Replace the End Cap at the end of track and secure
with a screw.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 277V Flangeless
WHT4-RTL, WHT8-RTL, WHT12-RTL
SAFETY INSTRUCTION
Read all of these instructions before installing the track system.
Turn o power at main switch before installing or modifying the system.
Do not install within six inches of any curtain or combustible materials.
Do not install less than 5 feet above a oor.
Do not install in damp or wet locations.
Do not install concealed, or extended through building walls.
Do not attempt to energize anything other than a track light xture.
This track system shall only be supplied with two single 120V, 60Hz, 20amp branch circuits.
Do not load to more than 20 amps per circuit. Although track light systems may seem to operate acceptably, a dangerous overload of the neutral may occur and result in a risk of re.
Check with a qualied electrician before wiring.
All of the installations shall be in accordance with NEC and all local codes.
Save these installation instructions and refer to them when additions or changes to the track conguration are made.
MOUNTING OPTIONS
Generally, for any mounting method, do not exceed 4 feet between mounting points, and do not exceed 6 inches (for 4 feet of track or less in length) or 12 inches (for track that is greater than 4 feet) from each end of the single track section. Always use two or more mounting supports for each track length.
A: STRAP MOUNTING
Remove the End Cap and save.
Slide the perforated hanger straps (not included, can be
purchased in a hardware store ) into the groove in the side of the track. An equal number of straps should be mounted on each side of the track.
Wrap the straps around the building structure or nail the
straps to the structure. They should be positioned evenly to balance the track.
Placing one hanger strap every foot, per side is recommended.
Push End Cap into the track at the end of the track and secure
by screw.
The hanger strap can be bought at a hardware store,
recommend size is 11/16 inch (17mm) in width.
Use clips or plates (by others) to be accommodated mounting
on the 1/2 inch of the ceiling board.
B: DIRECT MOUNTING
Mounting slots in top of track can be knocked out and
are spaced every 10 inches for convenience.
Mount as shown using a mounting screw every 2 feet
is recommended.
Additional supports may be added for heavier load
applications.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 277V Flangeless
WHT4-RTL, WHT8-RTL, WHT12-RTL
C: SUSPENSION MOUNTING
Slide or snap the hanger clips (WMT-RT) onto the track, and
space the clips evenly along the track length.
Secure the bolt and make sure the hanger clips tightly hook in
the track groove.
Assemble the stem or cable suspender (refer to WT/WHT track
suspension system) to the hanger clips. Level track and secure to building structure.
Recommended: two clips for 4’ track, three clips for 8’ track,
and four clips for 12’ track. Always use more than one clip for each track length. Additional clips may be added for more support.
FEED OPTIONS
Live End Connector can be fed directly from above using a 1/2 inch or 3/4 inch electrical connector.
Make sure power is o before wiring.
Note the polarity indicator of the track and accessories.
Remove cover and save.
Remove knockout in top plate.
Secure conduit by conduit connector (1/2 or 3/4 size
recommended) to top plate and lock the nut.
Pass wires (12AWG) through conduit and connector.
Cut and strip each end of the wire, then a single conductor is clamped directly under the head of the screw when it is tightened. The single conductor is bent around the screw in a 3/4 loop, insert the wires to the corresponding terminals (see g. below) and secure tightly with a screw.
Secure the track to the ceiling (see mounting options on
previous page).
Replace the cover.
Insert the spline and secure to the track with two screws.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 277V Flangeless
WHT4-RTL, WHT8-RTL, WHT12-RTL
OVER IMPEDIMENT
ACCESSORY OPTIONS
Make sure power is o before connecting.
Note the polarity indicator of the track
and accessories.
Insert the spline to the track groove and
secure with two screws.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
W Track Recessed 277V Flangeless
WHT4-RTL, WHT8-RTL, WHT12-RTL
