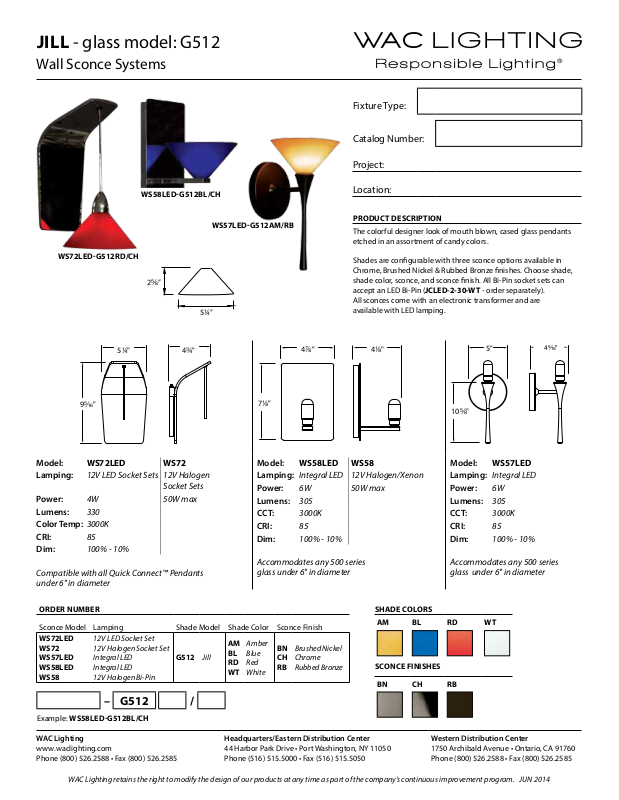

Page 1
JILL - glass model: G512
Wall Sconce Systems
Fixture Type:
Catalog Number:
Project:
WS58LEDG512BL/CH
WS72LEDG512RD/CH
2s”
54”
54"
9c"
4w"
Model: WS72LED WS72
Lamping: 12V LED Socket Sets 12V Halogen
Socket Sets
Power: 4W 50W max
Lumens: 330
Color Temp: 3000K
CRI: 85
Dim: 100% - 10%
Compatible with all Quick Connect™ Pendants
under 6" in diameter
WS57LEDG512AM/RB
78"
Model: WS58LED WS58
Lamping: Integral LED 12V Halogen/Xenon
Power: 6W 50W max
Lumens: 305
CCT: 3000K
CRI: 85
Dim: 100% - 10%
Accommodates any 500 series
glass under 6" in diameter
4d"
Location:
PRODUCT DESCRIPTION
The colorful designer look of mouth blown, cased glass pendants
etched in an assortment of candy colors.
Shades are congurable with three sconce options available in
Chrome, Brushed Nickel & Rubbed Bronze nishes. Choose shade,
shade color, sconce, and sconce nish. All Bi-Pin socket sets can
accept an LED Bi-Pin (JCLED-2-30-WT - order separately).
All sconces come with an electronic transformer and are
available with LED lamping.
48"
5"
10s"
4c"
Model: WS57LED
Lamping: Integral LED
Power: 6W
Lumens: 305
CCT: 3000K
CRI: 85
Dim: 100% - 10%
Accommodates any 500 series
glass under 6" in diameter
ORDER NUMBER
Sconce Model Lamping Shade Model Shade Color Sconce Finish
WS72LED
WS72
WS57LED
WS58LED
WS58
12V LED Socket Set
12V Halogen Socket Set
Integral LED
Integral LED
12V Halogen Bi-Pin
G512 Jill
AM
BL
RD
WT
Amber
Blue
Red
White
BN
Brushed Nickel
CH
Chrome
RB
Rubbed Bronze
– G512 /
Example: WS58LEDG512BL/CH
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
SHADE COLORS
AM BL RD WT
SCONCE FINISHES
BN CH RB
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
