Fixture Type:
Catalog Number:
Project:
Location:
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
PRODUCT DESCRIPTION
Retractable, adjustable spot lights
FEATURES
• ELV and 0-10V dimming options
• Energy Star® rated
• Invisible Trim™ is designed to sit ush with the ceiling for a clean,
architectural look
• Fully retractable from housing
• 365° horizontal rotation and 180° vertical aiming
• Accepts 1 replacement lens
• 50,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum heat sink painted black. Trim, housing and junction box
are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of
installation. Rated for branch wiring.
Driver: Universal (120V - 277V) or 120V input only
Light Source: High output LED (included with housing)
Dimming:
0-10V or ELV (see list of housings below)
Mounting: Supplied with hanger bars, adjustable from 142"-25" to accommodate
various joist construction and grid sizes. Hanger bars include a captive mounting "screw-
nail" for ease of installation. Accommodates surface up to 1" thick. 9w" × 58" cutout with
trim, 9w" × 58" cutout for Invisible Trim™. See instruction sheet for details on installation
using spackle ring.
Finish: Abrasion resistant powder coat paint in Black (BK).
Standards: ETL & cETL Damp Location listed

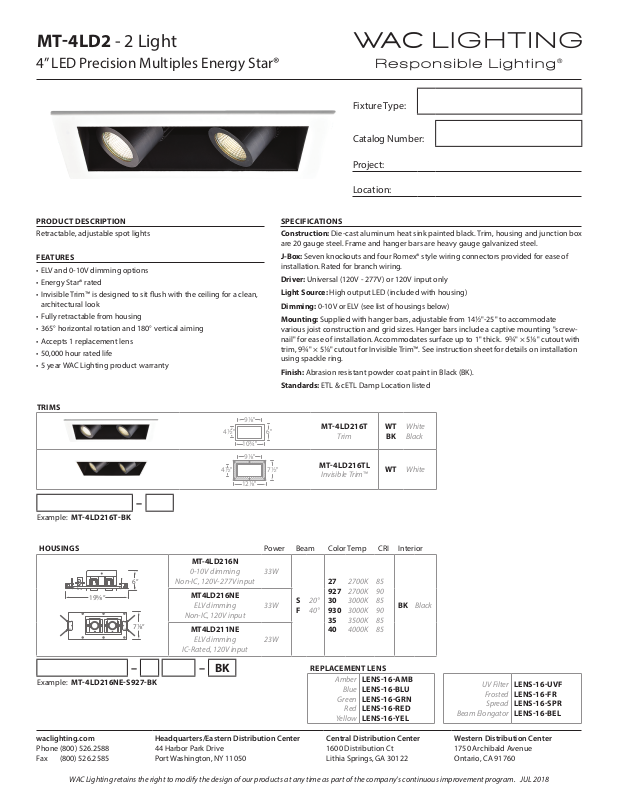

MT-4LD2 - 2 Light
4” LED Precision Multiples Energy Star®
–
Example: MT-4LD216T-BK
HOUSINGS Power Beam Color Temp CRI Interior
6”
19s”
78”
MT-4LD216N
0-10V dimming
Non-IC, 120V-277V input
33W
SF20°
40°
27
927
30
930
35
40
2700K
2700K
3000K
3000K
3500K
4000K
85
90
85
90
85
85
BK Black
MT4LD216NE
ELV dimming
Non-IC, 120V input
33W
MT4LD211NE
ELV dimming
IC-Rated, 120V input
23W
REPLACEMENT LENS
Amber
Blue
Green
Red
Yellow
LENS-16-AMB
LENS-16-BLU
LENS-16-GRN
LENS-16-RED
LENS-16-YEL
UV Filter
Frosted
Spread
Beam Elongator
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
TRIMS
98"
42"
6"
10w"
MT-4LD216T
Trim
WTBKWhite
Black
98"
42"
72"
128"
MT-4LD216TL
Invisible Trim™
WT White
– – BK
Example: MT-4LD216NE-S927-BK
MT-4LD2 - 2 Light
4” LED Precision Multiples Energy Star®
LUMINAIRE PERFORMANCE Power Beam Photometry Color Temp CRI Lumen CBCP
27
2700K
85
MT-4LD216N
0-10V dimming
Non-IC, 120V-277V input
MT4LD216NE
ELV dimming
Non-IC, 120V input
16.5W
16.5W
S 20°
F 40°
S 20°
F 40°
927
30
930
35
40
27
927
30
930
35
40
27
927
30
930
35
40
27
927
30
930
35
40
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
1840
90
1580
85
1920
90
1630
85
1950
85
2200
85
1810
90
1570
85
1880
90
1600
85
1920
85
2160
85
1870
90
1520
85
1944
90
1780
85
2010
85
1970
85
1920
90
1500
85
1960
90
1800
85
1980
85
1970
4490 x 2
3605 x 2
4790 x 2
3910 x 2
4720 x 2
5370 x 2
2015 x 2
1615 x 2
2090 x 2
1705 x 2
2110 x 2
2390 x 2
4506 x 2
3545 x 2
4630 x 2
4170 x 2
4700 x 2
4700 x 2
1955 x 2
1605 x 2
2110 x 2
1890 x 2
2095 x 2
2115 x 2
MT4LD211NE
ELV dimming
IC-Rated, 120V input
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
S 20°
11.5W
F 40°
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
27
2700K
927
30
930
35
40
27
927
30
930
35
40
85
2700K
90
3000K
85
3000K
90
3500K
85
4000K
85
2700K
85
2700K
90
3000K
85
3000K
90
3500K
85
4000K
85
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
1530
1256
1566
1270
1604
1786
1528
1226
1534
1248
1574
1768
3315 x 2
2685 x 2
3575 x 2
2795 x 2
3550 x 2
3925 x 2
1670 x 2
1270 x 2
1590 x 2
1295 x 2
1640 x 2
1820 x 2
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
