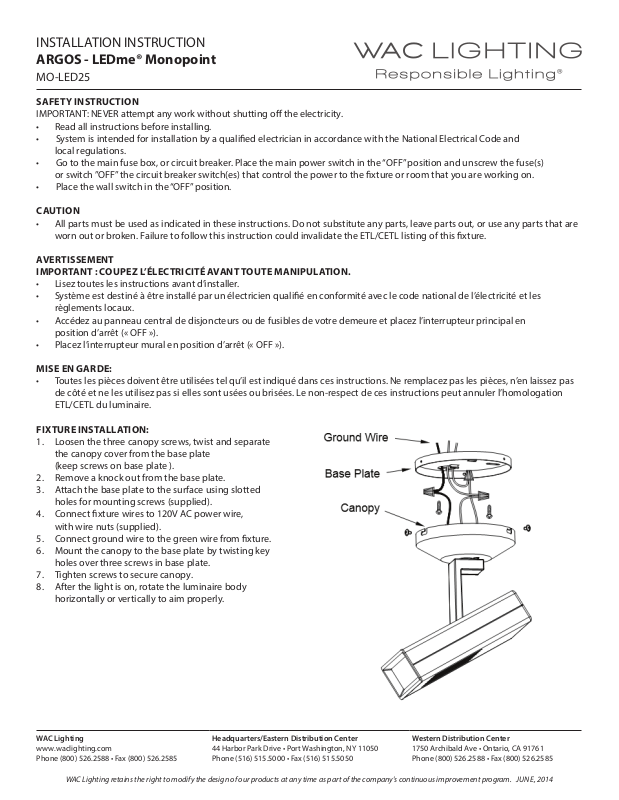

WAC Lighting WAC7608 Installation & Assembly

ARGOS - LEDme® Monopoint
MO-LED25
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
Read all instructions before installing.
System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
Place the wall switch in the “OFF” position.
CAUTION
All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
AVERTISSEMENT IMPORTANT : COUPEZ L’ÉLECTRICITÉ AVANT TOUTE MANIPULATION.
Lisez toutes les instructions avant d’installer.
Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE:
Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du luminaire.
FIXTURE INSTALLATION:
1. Loosen the three canopy screws, twist and separate
the canopy cover from the base plate (keep screws on base plate ).
2. Remove a knock out from the base plate.
3. Attach the base plate to the surface using slotted
holes for mounting screws (supplied).
4. Connect xture wires to 120V AC power wire,
with wire nuts (supplied).
5. Connect ground wire to the green wire from xture.
6. Mount the canopy to the base plate by twisting key
holes over three screws in base plate.
7. Tighten screws to secure canopy.
8. After the light is on, rotate the luminaire body
horizontally or vertically to aim properly.
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
