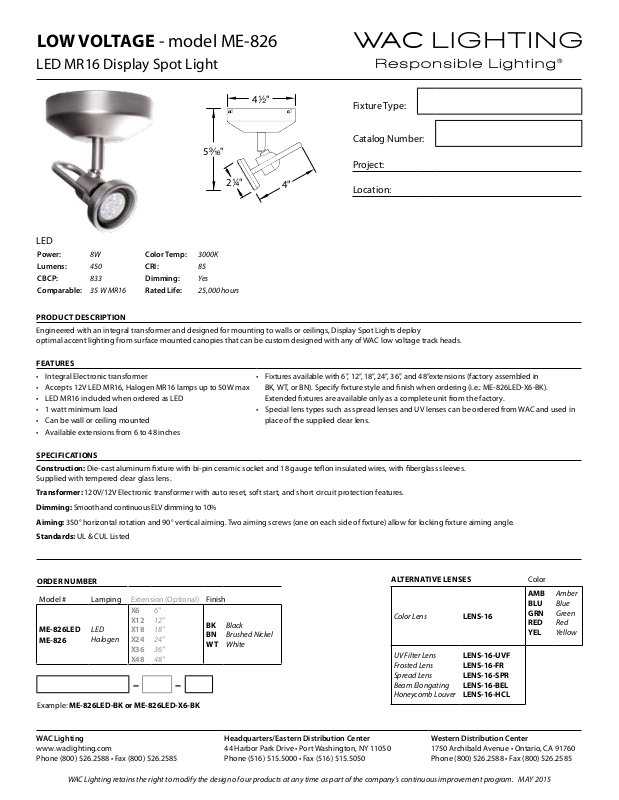

LOW VOLTAGE - model ME-826
LED MR16 Display Spot Light
42"
Fixture Type:
Catalog Number:
5b"
Project:
24"
4"
Location:
LED
Power: 8W
Lumens: 450
CBCP: 833
Comparable: 35 W MR16
PRODUCT DESCRIPTION
Engineered with an integral transformer and designed for mounting to walls or ceilings, Display Spot Lights deploy
optimal accent lighting from surface mounted canopies that can be custom designed with any of WAC low voltage track heads.
FEATURES
• Integral Electronic transformer
• Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max
• LED MR16 included when ordered as LED
• 1 watt minimum load
• Can be wall or ceiling mounted
• Available extensions from 6 to 48 inches
Color Temp: 3000K
CRI: 85
Dimming: Yes
Rated Life: 25,000 hours
• Fixtures available with 6”, 12”, 18”, 24”, 36”, and 48”extensions (factory assembled in
BK, WT, or BN). Specify fixture style and finish when ordering (i.e.: ME-826LED-X6-BK).
Extended fixtures are available only as a complete unit from the factory.
• Special lens types such as spread lenses and UV lenses can be ordered from WAC and used in
place of the supplied clear lens.
SPECIFICATIONS
Construction: Die-cast aluminum fixture with bi-pin ceramic socket and 18 gauge teflon insulated wires, with fiberglass sleeves.
Supplied with tempered clear glass lens.
Transformer: 120V/12V Electronic transformer with auto reset, soft start, and short circuit protection features.
Dimming:
Aiming: 350° horizontal rotation and 90° vertical aiming. Two aiming screws (one on each side of fixture) allow for locking fixture aiming angle.
Standards: UL & CUL Listed
ORDER NUMBER
Model # Lamping Extension (Optional) Finish
ME-826LED
ME-826
Example: ME-826LED-BK or ME-826LED-X6-BK
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Smooth and continuous ELV dimming to 10%
X6
6"
X12
LED
Halogen
X18
X24
X36
X48
12"
18"
24"
36"
48"
BK
BN
WT
– –
Black
Brushed Nickel
White
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
ALTERNATIVE LENSES Color
Color Lens LENS-16
UV Filter Lens
Frosted Lens
Spread Lens
Beam Elongating
Honeycomb Louver
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
LENS-16-HCL
AMB
BLU
GRN
RED
YEL
Amber
Blue
Green
Red
Yellow
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2015
