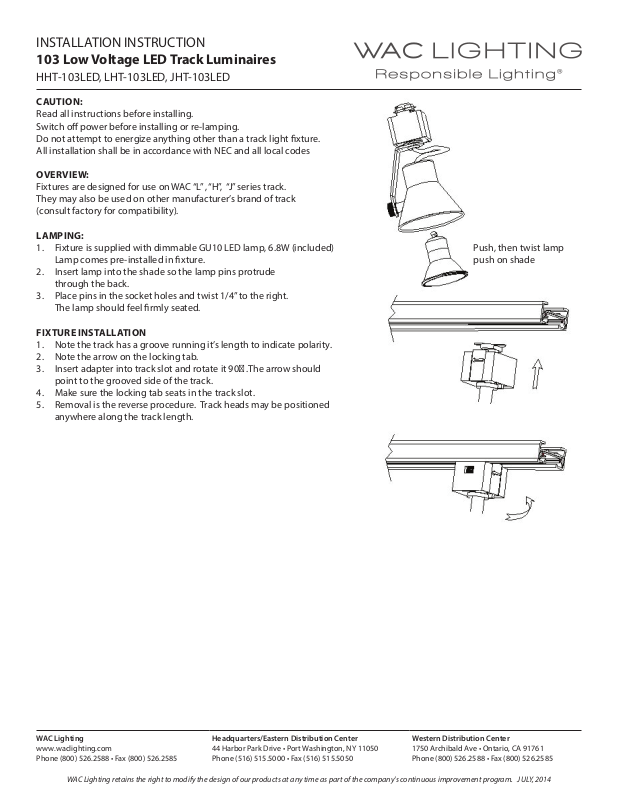

INSTALLATION INSTRUCTION
103 Low Voltage LED Track Luminaires
HHT-103LED, LHT-103LED, JHT-103LED
CAUTION:
Read all instructions before installing.
Switch o power before installing or re-lamping.
Do not attempt to energize anything other than a track light xture.
All installation shall be in accordance with NEC and all local codes
OVERVIEW:
Fixtures are designed for use on WAC “L” , “H”, “J” series track.
They may also be used on other manufacturer’s brand of track
(consult factory for compatibility).

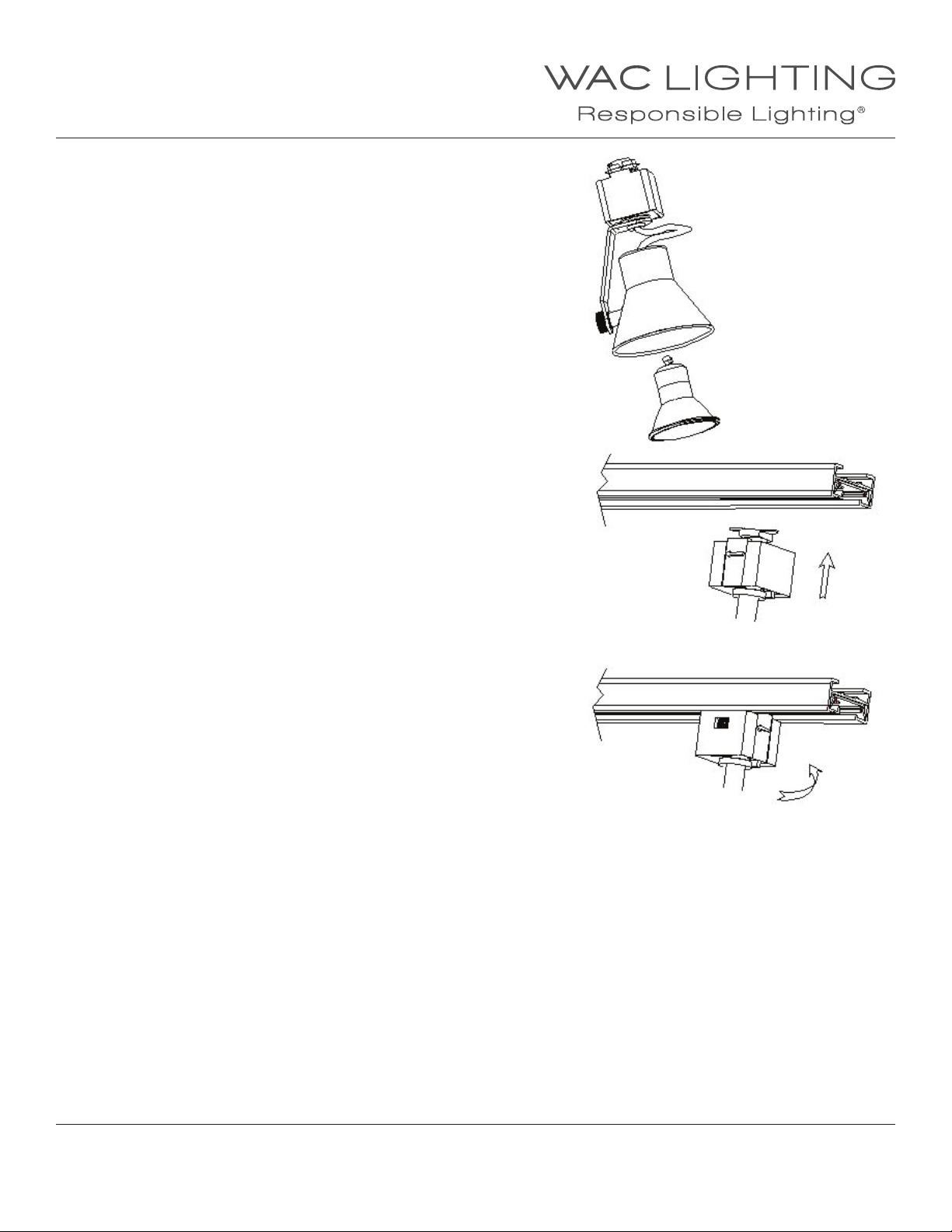

LAMPING:
1. Fixture is supplied with dimmable GU10 LED lamp, 6.8W (included)
Lamp comes pre-installed in xture.
2. Insert lamp into the shade so the lamp pins protrude
through the back.
3. Place pins in the socket holes and twist 1/4” to the right.
The lamp should feel rmly seated.
FIXTURE INSTALLATION
1. Note the track has a groove running it’s length to indicate polarity.
2. Note the arrow on the locking tab.
3. Insert adapter into track slot and rotate it 90 .The arrow should
point to the grooved side of the track.
4. Make sure the locking tab seats in the track slot.
5. Removal is the reverse procedure. Track heads may be positioned
anywhere along the track length.
Push, then twist lamp
push on shade
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
