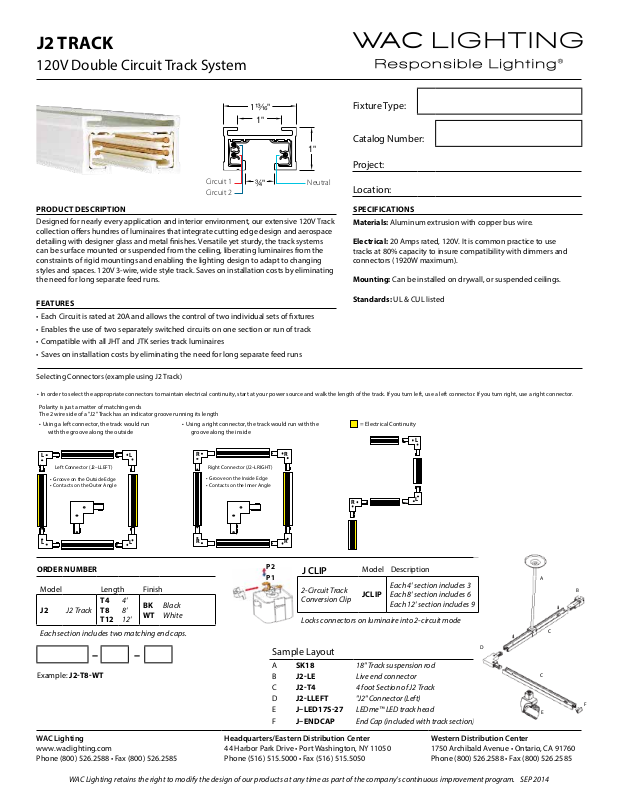

WAC Lighting WAC7237 Specifications

J2 TRACK

120V Double Circuit Track System

1m"

Fixture Type:

1"

Catalog Number:

1"

Project:

Circuit 1

w"

Circuit 2

PRODUCT DESCRIPTION

Designed for nearly every application and interior environment, our extensive 120V Track
collection oers hundres of luminaires that integrate cutting edge design and aerospace
detailing with designer glass and metal nishes. Versatile yet sturdy, the track systems
can be surface mounted or suspended from the ceiling, liberating luminaires from the
constraints of rigid mountings and enabling the lighting design to adapt to changing
styles and spaces. 120V 3-wire, wide style track. Saves on installation costs by eliminating
the need for long separate feed runs.

FEATURES

• Each Circuit is rated at 20A and allows the control of two individual sets of xtures

• Enables the use of two separately switched circuits on one section or run of track

• Compatible with all JHT and JTK series track luminaires

• Saves on installation costs by eliminating the need for long separate feed runs

Selecting Connectors (example using J2 Track)

• In order to select the appropriate connectors to maintain electrical continuity, start at your power source and walk the length of the track. If you turn left, use a left connector. If you turn right, use a right connector.

Polarity is just a matter of matching ends
The 2 wire side of a "J2" Track has an indicator groove running its length

• Using a left connector, the track would run
with the groove along the outside

L

Left Connector (J2–LLEFT)

• Groove on the Outside Edge

• Contacts on the Outer Angle

L

• Using a right connector, the track would run with the
groove along the inside

R

Right Connector (J2–LRIGHT)

• Groove on the Inside Edge

• Contacts on the Inner Angle

Neutral

Location:

SPECIFICATIONS

Materials: Aluminum extrusion with copper bus wire.

Electrical: 20 Amps rated, 120V. It is common practice to use

tracks at 80% capacity to insure compatibility with dimmers and
connectors (1920W maximum).

Mounting: Can be installed on drywall, or suspended ceilings.

Standards: UL & CUL listed

= Electrical Continuity

L

R

R

L

L

L

ORDER NUMBER

Model Length Finish

T4

4'

J2 J2 Track

T8
T12

8'
12'

BK WTBlack

White

Each section includes two matching end caps.

– –

Example: J2T8WT

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2014

P2

P1

R

J CLIP

R

2-Circuit Track
Conversion Clip

Locks connectors on luminaire into 2-circuit mode

Sample Layout

A SK18 18" Track suspension rod
B J2LE Live end connector
C J2T4 4 foot Section of J2 Track
D J2LLEFT "J2" Connector (Left)
E JLED17S27 LEDme™ LED track head
F JENDCAP End Cap (included with track section)

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Model Description

Each 4' section includes 3

JCLIP

Each 8' section includes 6
Each 12' section includes 9

A

C

D

C

E

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760
Phone [phone] • Fax [phone]

B

F

J2 TRACK

120V Double Circuit Track System

Quick Connect™ Adapter Model Finish

Quick
Connect™
Adapter

ENJQ50AR

Min.Load: 1W
Max Load: 50WBKWT

Track Suspension Model Length Finish

All Track
Suspension Kit

Suspension Kit
Extender

Sloped Ceiling
Adapter

Rod Coupler

Suspension
Adjustment
Collar Kit

SK

R

SK14

RI

SK05 Includes two collars

182418"

24"3648

18

18"

24

24"

36

36"

36"
48"BKWT

487248"

72"BKWT

BK
WT

BK
WT

BK
WT

Fixture Type:

Catalog Number:

Project:

Location:

Accessories Model Finish Dimensions

Live End
Connector

Live End
BX Connector

"I" Power Connector J2IPWR

"L" Connector - Left

"L" Connector - Right

"T" Connector

"X" Connector

"I" Connector J2I

J2LE

J2BXLE

J2LLEFT

J2LRIGHT

J2T

J2X

BK
WT

BK
WT

BK
WT

BK
WT

BK
WT

BK
WT

BK
WT

4w”

5d”

7”

44” × 44”

7” × 44”

7” × 7”

42”

Low Voltage
Track Head
Extension

Wall Mount
Suspension
Bracket

Wire Way Cover J2WCOV

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2014

X

TBKT 18"

6
12
18

6"

24

24"

12"

36

18"

48

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

36"
48"

BK
WT

BK
WT

BK
WT

"I" Dead End
Connector

Flexible Track
Connector

T-Bar Drop Ceiling
Attachment

Octagon Box Cover

T-Bar End Feed

Example: J2FLXWT

J2IDEC

J2FLX

TBARCLIP

J2UCP

J2TBLE

Western Distribution Center

1750 Archibald Avenue • Ontario, CA 91760
Phone [phone] • Fax [phone]

BK
WT

BK
WT

BK
WT

BK
WT

32”

112”

12” × 14”

48” × 48”

48” × 48”
