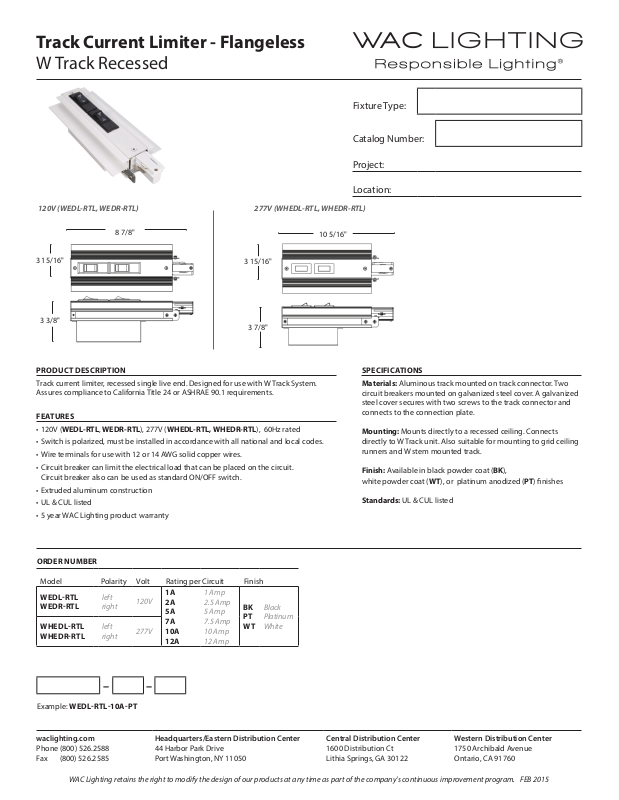

WAC Lighting WAC7216 Specifications

Track Current Limiter - Flangeless

W Track Recessed

Fixture Type:

Catalog Number:

Project:

Location:

120V (WEDL-RTL, WEDR-RTL) 277V (WHEDL-RTL, WHEDR-RTL)

8 7/8"

3 15/16"

3 3/8"

PRODUCT DESCRIPTION

Track current limiter, recessed single live end. Designed for use with W Track System.
Assures compliance to California Title 24 or ASHRAE 90.1 requirements.

FEATURES

• 120V (WEDL-RTL, WEDR-RTL), 277V (WHEDL-RTL, WHEDR-RTL), 60Hz rated

• Switch is polarized, must be installed in accordance with all national and local codes.

• Wire terminals for use with 12 or 14 AWG solid copper wires.

• Circuit breaker can limit the electrical load that can be placed on the circuit.
Circuit breaker also can be used as standard ON/OFF switch.

• Extruded aluminum construction

• UL & CUL listed

• 5 year WAC Lighting product warranty

3 15/16"

3 7/8"

10 5/16"

SPECIFICATIONS

Materials: Aluminous track mounted on track connector. Two

circuit breakers mounted on galvanized steel cover. A galvanized
steel cover secures with two screws to the track connector and
connects to the connection plate.

Mounting: Mounts directly to a recessed ceiling. Connects
directly to W Track unit. Also suitable for mounting to grid ceiling
runners and W stem mounted track.

Finish: Available in black powder coat (BK),
white powder coat (WT), or platinum anodized (PT) nishes

Standards: UL & CUL listed

ORDER NUMBER

Model Polarity Volt Rating per Circuit Finish

WEDLRTL
WEDRRTL

WHEDLRTL
WHEDRRTL

left
right

left
right

120V

277V

1A
2A
5A
7A
10A
12A

1 Amp

2.5 Amp
5 Amp

7.5 Amp
10 Amp
12 Amp

BK
PT
WT

– –

Example: WEDLRTL10APT

waclighting.com

Phone [phone]
Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEB 2015
