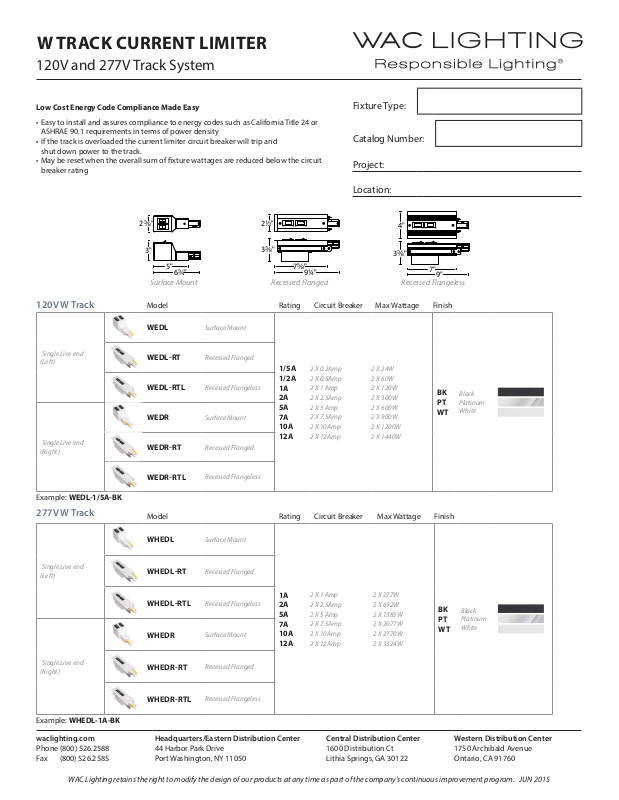

W TRACK CURRENT LIMITER
120V and 277V Track System
Low Cost Energy Code Compliance Made Easy
• Easy to install and assures compliance to energy codes such as California Title 24 or
ASHRAE 90.1 requirements in terms of power density
• If the track is overloaded the current limiter circuit breaker will trip and
shut down power to the track.
• May be reset when the overall sum of xture wattages are reduced below the circuit
breaker rating
22"
3a"
7s"
Recessed Flanged
1/5A
1/2A
1A
2A
5A
7A
10A
12A
94"
2 X 0.2Amp
2 X 0.5Amp
2 X 1 Amp
2 X 2.5Amp
2 X 5 Amp
2 X 7.5Amp
2 X 10Amp
2 X 12Amp
120V W Track
Single Live end
(Left)
Single Live end
(Right)
2a"
3"
5"
6w"
Surface Mount
Model Rating Circuit Breaker Max Wattage Finish
WEDL
WEDLRT
WEDLRTL
WEDR
WEDRRT
Surface Mount
Recessed Flanged
Recessed Flangeless
Surface Mount
Recessed Flanged
Fixture Type:
Catalog Number:
Project:
Location:
4"
3a"
Recessed Flangeless
2 X 24W
2 X 60W
2 X 120W
2 X 300W
2 X 600W
2 X 900W
2 X 1200W
2 X 1440W
7"
9"
BK
Black
Platinum
PT
White
WT
Example: WEDL-1/5A-BK
277V W Track
Single Live end
(Left)
Single Live end
(Right)
Example: WHEDL-1A-BK
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WEDRRTL
Recessed Flangeless
Model Rating Circuit Breaker Max Wattage Finish
WHEDL
WHEDLRT
WHEDLRTL
WHEDR
WHEDRRT
WHEDRRTL
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Surface Mount
Recessed Flanged
Recessed Flangeless
Surface Mount
Recessed Flanged
Recessed Flangeless
1A
2A
5A
7A
10A
12A
2 X 1 Amp
2 X 2.5Amp
2 X 5 Amp
2 X 7.5Amp
2 X 10Amp
2 X 12Amp
2 X 277W
2 X 692W
2 X 1385W
2 X 2077W
2 X 2770W
2 X 3324W
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
BK
PT
WT
Black
Platinum
White
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2015
