WAC Lighting WAC7183 Installation & Assembly

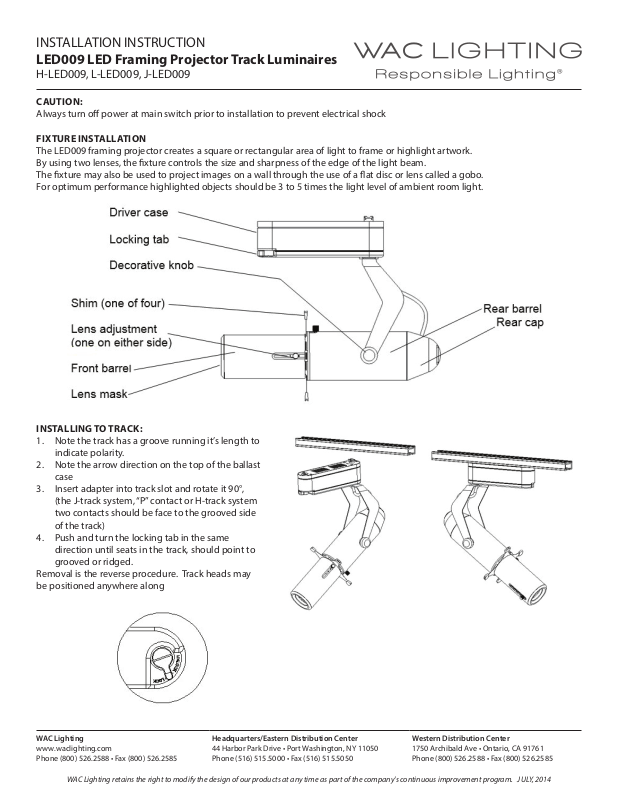

INSTALLATION INSTRUCTION

LED009 LED Framing Projector Track Luminaires

H-LED009, L-LED009, J-LED009

CAUTION:

Always turn o power at main switch prior to installation to prevent electrical shock

FIXTURE INSTALLATION
The LED009 framing projector creates a square or rectangular area of light to frame or highlight artwork.
By using two lenses, the xture controls the size and sharpness of the edge of the light beam.
The xture may also be used to project images on a wall through the use of a at disc or lens called a gobo.
For optimum performance highlighted objects should be 3 to 5 times the light level of ambient room light.

INSTALLING TO TRACK:

1. Note the track has a groove running it’s length to
indicate polarity.

2. Note the arrow direction on the top of the ballast
case

3. Insert adapter into track slot and rotate it 90°,
(the J-track system, “P” contact or H-track system
two contacts should be face to the grooved side
of the track)

4. Push and turn the locking tab in the same
direction until seats in the track, should point to
grooved or ridged.

Removal is the reverse procedure. Track heads may
be positioned anywhere along

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

INSTALLATION INSTRUCTION

LED009 LED Framing Projector Track Luminaires

H-LED009, L-LED009, J-LED009

ADJUSTMENT:

1. Four metal shims are held in place between two spring plates, move the shims to dene the light area.
Spring tension will hold the shims where they are set.

2. Once the shims are in place the size can be further adjusted by varying the position of the lenses.
There are two lens adjustment knobs located on either side of the front barrel. Slide the lenses until the size is right
and the edge is sharp. Secure the setting by tightening the adjusting knobs.

3. Squaring the frame: a ne adjustment of the vertical / horizontal axis can be obtained by rotating barrel halve a few degrees.
To rotate, slightly loosen the ne adjustment knob on the rear barrel just behind the shims.

To Insert Gobos:

The same adjustment knob used for ne adjustment also allows the two barrel halves to separate. Remove the framing shims by
pivoting the shim 90º and pulling outward. The front barrel has several recesses that will accept “D” sized metal or glass gobos.

1. Place the gobo in the recess and secure with the spring retaining ring provided.

(Note: an image will need to be placed upside down in the xture to appear right side up on the wall).

2. To size and focus the image, adjust the two lenses in the front barrel as described above.

Sharpening Focus:

Once the lenses have been adjusted it is possible to obtain an even sharper image by using the lens mask. Screw the lens mask
into the face of the front barrel. You will see a slight reduction in light level and crisper dened edges.
This works with either shims or gobos.

WHAT IS A GOBO?

Gobos are at disc’s with cut out images, similar to a stencil. The cut
out can be any design , letters, images, or patterns. The images are
then projected on walls.

Gobo’s are not limited to simple designs, many are sophisticated
multi colored images transferred to glass. Gobo companies have a
selection of standard designs and most oer custom made gobos,
such as a company logo.

Although WAC does not make gobos, customer service can refer
you to companies oering them.
