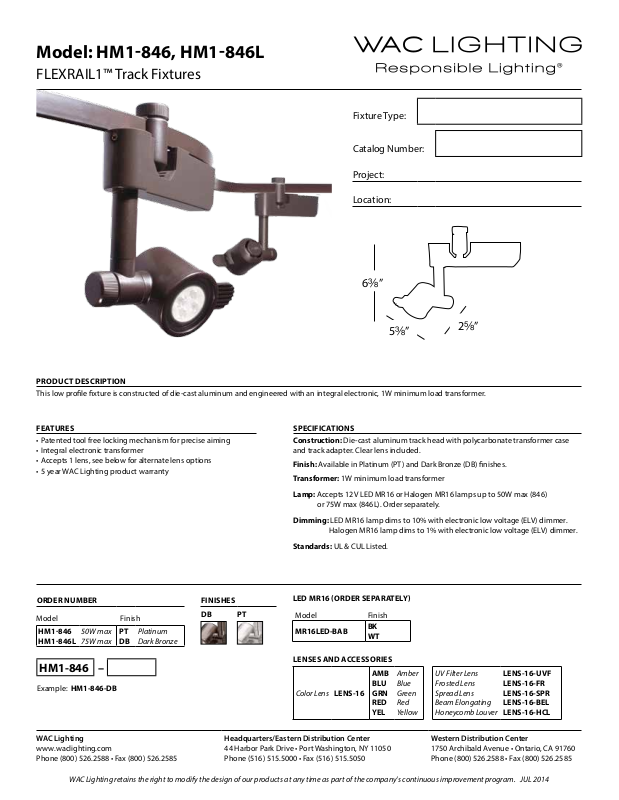

Page 1
Model: HM1846, HM1846L
FLEXRAIL1™ Track Fixtures
Fixture Type:
Catalog Number:
Project:
Location:
6a”
5a”
PRODUCT DESCRIPTION
This low prole xture is constructed of die-cast aluminum and engineered with an integral electronic, 1W minimum load transformer.
FEATURES
• Patented tool free locking mechanism for precise aiming
• Integral electronic transformer
• Accepts 1 lens, see below for alternate lens options
• 5 year WAC Lighting product warranty
ORDER NUMBER
Model Finish
HM1846
HM1846L
50W max
75W max
PT DBPlatinum
Dark Bronze
FINISHES
DB PT
SPECIFICATIONS
Construction: Die-cast aluminum track head with polycarbonate transformer case
and track adapter. Clear lens included.
Finish: Available in Platinum (PT) and Dark Bronze (DB) nishes.
Transformer: 1W minimum load transformer
Lamp: Accepts 12V LED MR16 or Halogen MR16 lamps up to 50W max (846)
or 75W max (846L). Order separately.
Dimming: LED MR16 lamp dims to 10% with electronic low voltage (ELV) dimmer.
Halogen MR16 lamp dims to 1% with electronic low voltage (ELV) dimmer.
Standards: UL & CUL Listed.
LED MR16 ORDER SEPARATELY
Model Finish
MR16LED-BAB
BK
WT
2s”
HM1-846 –
Example: HM1-846-DB
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2014
LENSES AND ACCESSORIES
AMB
Color Lens LENS-16
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
BLU
GRN
RED
YEL
Amber
Blue
Green
Red
Yellow
UV Filter Lens
Frosted Lens
Spread Lens
Beam Elongating
Honeycomb Louver
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
LENS-16-UVF
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
LENS-16-HCL
