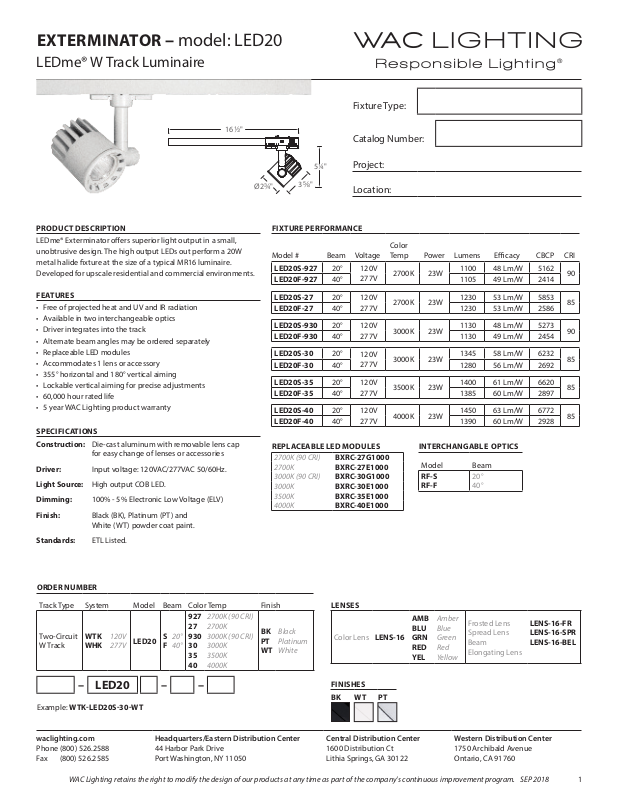

Page 1
EXTERMINATOR – model: LED20
162"
54"
3s"
Ø2w"
LEDme® W Track Luminaire
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
LEDme® Exterminator oers superior light output in a small,
unobtrusive design. The high output LEDs out perform a 20W
metal halide xture at the size of a typical MR16 luminaire.
Developed for upscale residential and commercial environments.
FEATURES
• Free of projected heat and UV and IR radiation
• Available in two interchangeable optics
• Driver integrates into the track
• Alternate beam angles may be ordered separately
• Replaceable LED modules
• Accommodates 1 lens or accessory
• 355° horizontal and 180° vertical aiming
• Lockable vertical aiming for precise adjustments
• 60,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum with removable lens cap
for easy change of lenses or accessories
Driver: Input voltage: 120VAC/277VAC 50/60Hz.
Light Source: High output COB LED.
Dimming: 100% - 5% Electronic Low Voltage (ELV)
Finish: Black (BK), Platinum (PT) and
White (WT ) powder coat paint.
Standards: ETL Listed.
FIXTURE PERFORMANCE
Model # Beam Voltage
LED20S-927 20°
LED20F-927 40° 1105 49 Lm/W 2414
LED20S-27 20°
LED20F-27 40° 1230 53 Lm/W 2586
LED20S-930 20°
LED20F-930 40° 1130 49 Lm/W 2454
LED20S-30 20°
LED20F-30 40° 1280 56 Lm/W 2692
LED20S-35 20°
LED20F-35 40° 1385 60 Lm/W 2897
LED20S-40 20°
LED20F-40 40° 1390 60 Lm/W 2928
REPLACEABLE LED MODULES
2700K (90 CRI) BXRC-27G1000
2700K BXRC-27E1000
3000K (90 CRI) BXRC-30G1000
3000K BXRC-30E1000
3500K BXRC-35E1000
4000K BXRC-40E1000
Color
Temp Power Lumens Ecacy CBCP CRI
120V
277V
120V
277V
120V
277V
120V
277V
120V
277V
120V
277V
2700K 23W
2700K 23W
3000K 23W
3000K 23W
3500K 23W
4000K 23W
INTERCHANGABLE OPTICS
Model Beam
RF-S
RF-F
1100 48 Lm/W 5162
1230 53 Lm/W 5853
1130 48 Lm/W 5273
1345 58 Lm/W 6232
1400 61 Lm/W 6620
1450 63 Lm/W 6772
20°
40°
90
85
90
85
85
85
ORDER NUMBER
Track Type System Model Beam Color Temp Finish
Two-Circuit
W Track
– LED20 – –
Example: WTKLED20S30WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2018
WTK
WHK
120V
277V
927
2700K (90 CRI)
27
SF20°
LED20
40°
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
2700K
930
3000K (90 CRI)
30
3000K
35
3500K
40
4000K
BK
PT
WT
Black
Platinum
White
LENSES
AMB
Color Lens LENS-16
FINISHES
BK WT PT
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
BLU
GRN
RED
YEL
Amber
Blue
Green
Red
Yellow
Frosted Lens
Spread Lens
Beam
Elongating Lens
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
1
Page 2
EXTERMINATOR – model: LED20
Photometrics
FIXTURE PERFORMANCE 2700K
0° Aiming Angle (ceiling to oor)
LED20S-27 LED20F-27
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
FIXTURE PERFORMANCE 3500K
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
163 2.1 2.1 72 4.4 4.4
72 3.2 3.2 32 6.6 6.6
41 4.2 4.2 18 8.7 8.7
26 5.3 5.3 11 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-27 LED20F-27
20° beam 40° beam
57 4.4 3.0 25 10.1 6.2
26 6.6 4.5 11 15.1 9.3
14 8.7 6.0 6 20.1 12.4
9 10.9 7.5 4 25.2 15.4
0° Aiming Angle (ceiling to oor)
LED20S-35 LED20F-35
20° beam 40° beam
184 2.1 2.1 80 4.4 4.4
82 3.2 3.2 36 6.6 6.6
46 4.2 4.2 20 8.7 8.7
29 5.3 5.3 13 10.9 10.9
FIXTURE PERFORMANCE 3000K
0° Aiming Angle (ceiling to oor)
LED20S-30 LED20F-30
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
FIXTURE PERFORMANCE 4000K
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
173 2.1 2.1 75 4.4 4.4
77 3.2 3.2 33 6.6 6.6
43 4.2 4.2 19 8.7 8.7
28 5.3 5.3 12 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-30 LED20F-30
20° beam 40° beam
61 4.4 3.0 26 10.1 6.2
27 6.6 4.5 12 15.1 9.3
15 8.7 6.0 7 20.1 12.4
10 10.9 7.5 4 25.2 15.4
0° Aiming Angle (ceiling to oor)
LED20S-40 LED20F-40
20° beam 40° beam
188 2.1 2.1 81 4.4 4.4
84 3.2 3.2 36 6.6 6.6
47 4.2 4.2 20 8.7 8.7
30 5.3 5.3 13 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-35 LED20F-35
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
FC– Initial footcandle level at the center of the beam
L– Beam length at the point the candlepower drops o to 50% of maximum*
W– Beam width at the point the candlepower drops o to 50% of maximum*
*Measured in feet
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
65 4.4 3.0 28 10.1 6.2
29 6.6 4.5 13 15.1 9.3
16 8.7 6.0 7 20.1 12.4
10 10.9 7.5 5 25.2 15.4
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2018
45° Aiming Angle (ceiling to wall)
LED20S-40 LED20F-40
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
67 4.4 3.0 29 10.1 6.2
30 6.6 4.5 13 15.1 9.3
17 8.7 6.0 7 20.1 12.4
11 10.9 7.5 5 25.2 15.4
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
2
