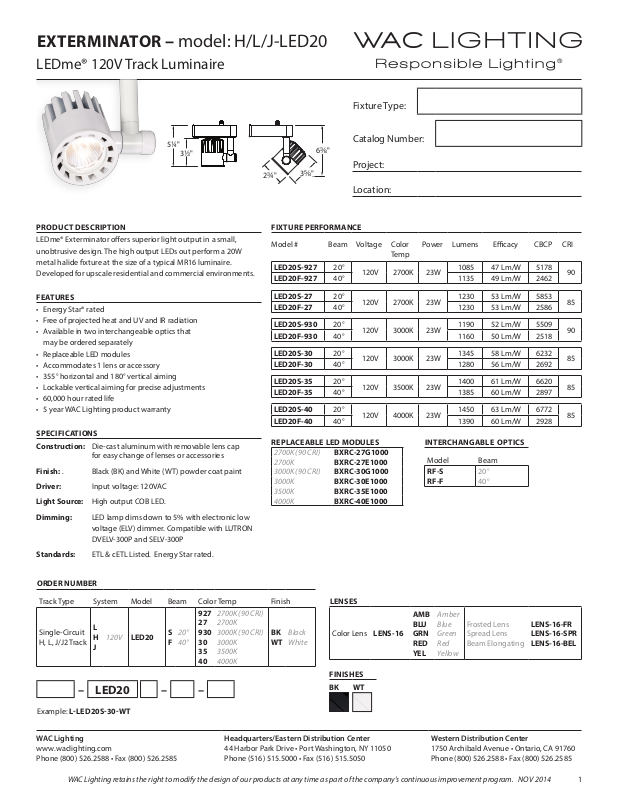

EXTERMINATOR – model: H/L/J-LED20
LEDme® 120V Track Luminaire
Fixture Type:
54"
32"
PRODUCT DESCRIPTION
LEDme® Exterminator oers superior light output in a small,
unobtrusive design. The high output LEDs out perform a 20W
metal halide xture at the size of a typical MR16 luminaire.
Developed for upscale residential and commercial environments.
FEATURES
• Energy Star® rated
• Free of projected heat and UV and IR radiation
• Available in two interchangeable optics that
may be ordered separately
• Replaceable LED modules
• Accommodates 1 lens or accessory
• 355° horizontal and 180° vertical aiming
• Lockable vertical aiming for precise adjustments
• 60,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum with removable lens cap
for easy change of lenses or accessories
Finish: . Black (BK) and White (WT ) powder coat paint
Driver: Input voltage: 120VAC
Light Source: High output COB LED.
Dimming: LED lamp dims down to 5% with electronic low
voltage (ELV) dimmer. Compatible with LUTRON
DVELV-300P and SELV-300P
Standards: ETL & cETL Listed. Energy Star rated.
Catalog Number:
6a"
Project:
2w"
3s"
Location:
FIXTURE PERFORMANCE
Model # Beam Voltage Color
LED20S-927 20°
LED20F-927 40° 1135 49 Lm/W 2462
LED20S-27 20°
LED20F-27 40° 1230 53 Lm/W 2586
LED20S-930 20°
LED20F-930 40° 1160 50 Lm/W 2518
LED20S-30 20°
LED20F-30 40° 1280 56 Lm/W 2692
LED20S-35 20°
LED20F-35 40° 1385 60 Lm/W 2897
LED20S-40 20°
LED20F-40 40° 1390 60 Lm/W 2928
REPLACEABLE LED MODULES
2700K (90 CRI) BXRC-27G1000
2700K BXRC-27E1000
3000K (90 CRI) BXRC-30G1000
3000K BXRC-30E1000
3500K BXRC-35E1000
4000K BXRC-40E1000
Temp
120V 2700K 23W
120V 2700K 23W
120V 3000K 23W
120V 3000K 23W
120V 3500K 23W
120V 4000K 23W
Power Lumens Ecacy CBCP CRI
1085 47 Lm/W 5178
1230 53 Lm/W 5853
1190 52 Lm/W 5509
1345 58 Lm/W 6232
1400 61 Lm/W 6620
1450 63 Lm/W 6772
INTERCHANGABLE OPTICS
Model Beam
RF-S
RF-F
20°
40°
90
85
90
85
85
85
ORDER NUMBER
Track Type System Model Beam Color Temp Finish
927
2700K (90 CRI)
27
Single-Circuit
H, L, J/J2 Track
L
HJ120V LED20
SF20°
40°
2700K
930
3000K (90 CRI)
30
3000K
35
3500K
40
4000K
BKWTBlack
– LED20 – –
Example: LLED20S30WT
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOV 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
White
LENSES
Color Lens LENS-16
FINISHES
BK WT
AMB
Amber
BLU
Blue
Green
Red
Yellow
Frosted Lens
Spread Lens
Beam Elongating
GRN
RED
YEL
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
LENS-16-FR
LENS-16-SPR
LENS-16-BEL
1
EXTERMINATOR – model: H/L/J-LED20
Photometrics
FIXTURE PERFORMANCE 2700K
0° Aiming Angle (ceiling to oor)
LED20S-27 LED20F-27
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
FIXTURE PERFORMANCE 3500K
163 2.1 2.1 72 4.4 4.4
72 3.2 3.2 32 6.6 6.6
41 4.2 4.2 18 8.7 8.7
26 5.3 5.3 11 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-27 LED20F-27
20° beam 40° beam
57 4.4 3.0 25 10.1 6.2
26 6.6 4.5 11 15.1 9.3
14 8.7 6.0 6 20.1 12.4
9 10.9 7.5 4 25.2 15.4
FIXTURE PERFORMANCE 3000K
0° Aiming Angle (ceiling to oor)
LED20S-30 LED20F-30
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
LED20S-30
FIXTURE PERFORMANCE 4000K
173 2.1 2.1 75 4.4 4.4
77 3.2 3.2 33 6.6 6.6
43 4.2 4.2 19 8.7 8.7
28 5.3 5.3 12 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-30 LED20F-30
20° beam 40° beam
61 4.4 3.0 26 10.1 6.2
27 6.6 4.5 12 15.1 9.3
15 8.7 6.0 7 20.1 12.4
10 10.9 7.5 4 25.2 15.4
0° Aiming Angle (ceiling to oor)
LED20S-35 LED20F-35
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
FC– Initial footcandle level at the center of the beam
L– Beam length at the point the candlepower drops o to 50% of maximum*
W– Beam width at the point the candlepower drops o to 50% of maximum*
*Measured in feet
184 2.1 2.1 80 4.4 4.4
82 3.2 3.2 36 6.6 6.6
46 4.2 4.2 20 8.7 8.7
29 5.3 5.3 13 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-35 LED20F-35
20° beam 40° beam
65 4.4 3.0 28 10.1 6.2
29 6.6 4.5 13 15.1 9.3
16 8.7 6.0 7 20.1 12.4
10 10.9 7.5 5 25.2 15.4
0° Aiming Angle (ceiling to oor)
LED20S-40 LED20F-40
20° beam 40° beam
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
Distance FC L W FC L W
6 ft
9 ft
12 ft
15 ft
188 2.1 2.1 81 4.4 4.4
84 3.2 3.2 36 6.6 6.6
47 4.2 4.2 20 8.7 8.7
30 5.3 5.3 13 10.9 10.9
45° Aiming Angle (ceiling to wall)
LED20S-40 LED20F-40
20° beam 40° beam
67 4.4 3.0 29 10.1 6.2
30 6.6 4.5 13 15.1 9.3
17 8.7 6.0 7 20.1 12.4
11 10.9 7.5 5 25.2 15.4
